Unmanned Scanning

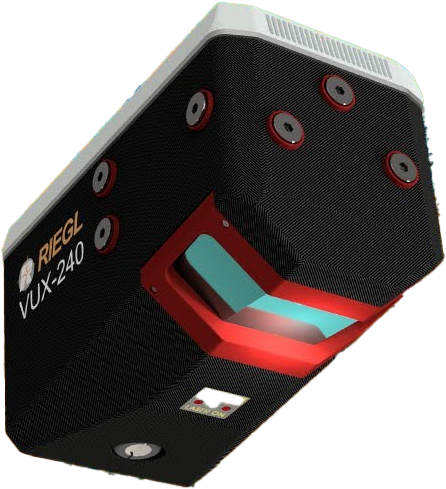

RIEGL VUX-240
The RIEGL VUX-240 is a lightweight airborne laser scanner, especially designed for use on UAS/UAV/RPAS and small manned aeroplanes or helicopters.
With its wide field of view of 75 degrees and an extremely fast data acquisition rate of up to 1.8 MHz, the instrument is perfectly suited for high point density corridor mapping applications.
RIEGL VUX-1UAV
The RIEGL VUX-1UAV is a very lightweight and compact laser scanner, meeting the challenges of emerging survey solutions by UAS/UAV/RPAS both in measurement performance as well as in system integration.
With regard to the specific constraints and flight characteristics of the UAS, the RIEGL VUX-1UAV is designed to be mounted in any orientation and even under limited weight and space conditions.

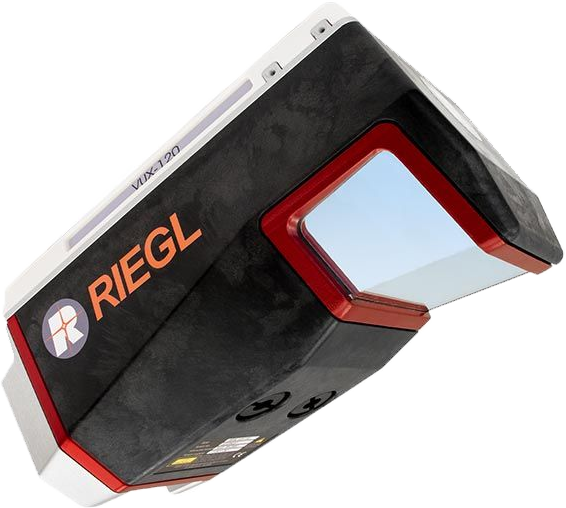

RIEGL VUX-120
The new RIEGL VUX-120 is a lightweight and versatile airborne laser scanner offering a wide field of view of 100 degrees and an extremely fast data acquisition rate of up to 1.8 MHz. Thus, it is perfectly suited for high point density corridor mapping applications.
The measuring beam of the RIEGL VUX-120 is consecutively scanned in three different directions: it alternates from strictly nadir, to +10 degrees forward, and to -10 degrees backward. This allows data acquisition with an unrivaled completeness in data capture, especially in challenging environments with vertical surfaces and narrow canyons.

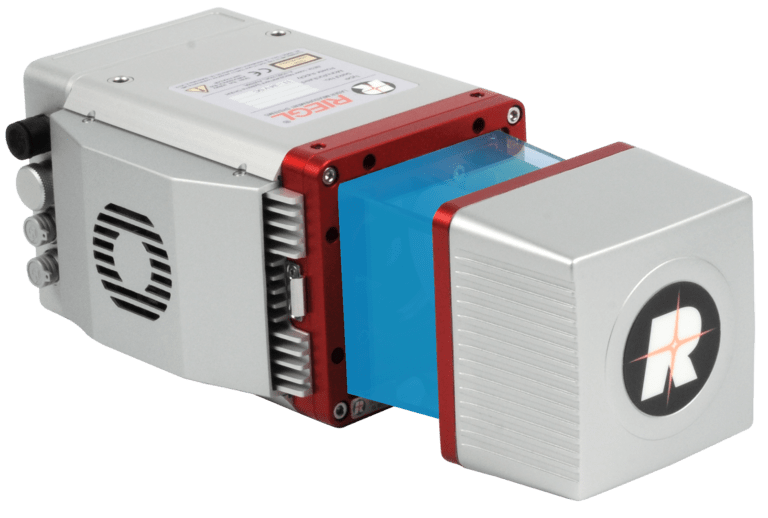

RIEGL miniVUX-1UAV
The RIEGL miniVUX-1UAV is an extremely lightweight airborne laser scanner, designed specifically for integration with UAS/UAV/RPAS.
The small and sophisticated design of the stable aluminum housing offers various integration possibilities with platforms that offer restricted space or payload capabilities. The 360° field of view allows complete acquisition of the environment.

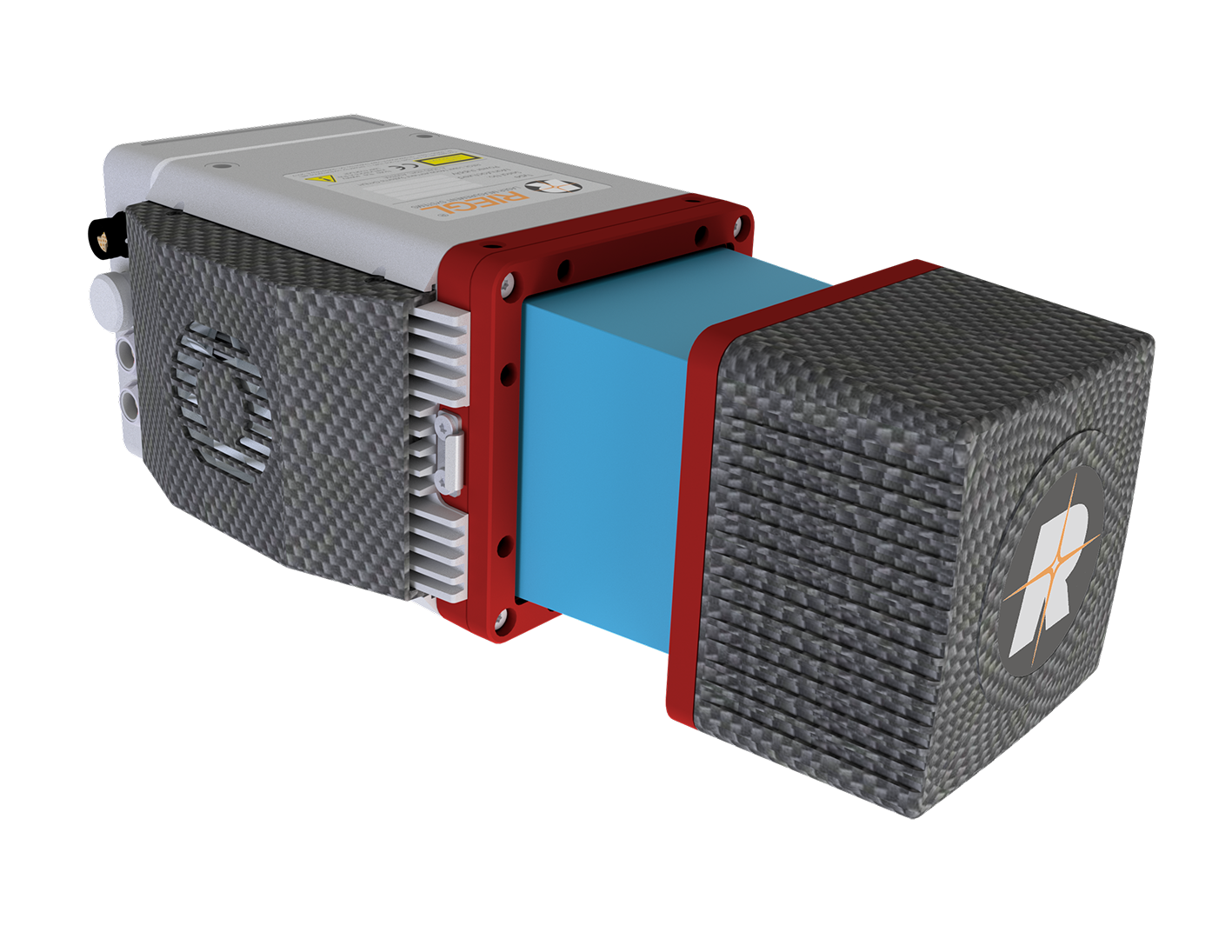

RIEGL miniVUX-3 UAV
The RIEGL miniVUX-3UAV is an extremely lightweight airborne laser scanner, designed specifically for integration with UAS/UAV/RPAS. The sister type of the proven RIEGL miniVUX-2UAV and RIEGL miniVUX-1UAV sensor offers a selectable 100 kHz, 200 kHz, and 300 kHz laser pulse repetition rate (PRR). With 300 kHz PRR, the sensor provides up to 100,000 measurements per second at 120° FoV and thus a dense point pattern on the ground for UAV-based applications that require the acquisition of small objects.
Reigl VUX-160

RIEGL VUX-160²³: An advanced, lightweight airborne laser scanner with a wide field of view for corridor mapping. It captures complete data, even in challenging environments, thanks to its three-direction beam emission. With ample storage, external camera support, and flexible integration options, it's ideal for various applications, from UAS/UAV/RPAS to helicopters.

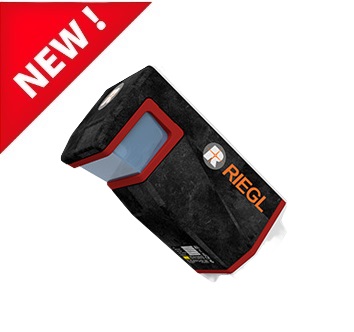

RIEGL VUX-100-25

The NEW RIEGL VUX-10025 is a lightweight and versatile airborne laser scanner with a large field of view of 160 degrees and a high pulse repetition rate of up to 1,500 kHz. The scanner has a measurement rate of up to 1.3 million measurements/sec, a scan speed of up to 200 lines/second, and an operating flight altitude of up to 360m / 1,200 feet. Typical applications include Corridor Mapping, Topography in Open-Cast Mining, Surveying of Urban Environments, Archaeology and Cultural Heritage Documentation and Agriculture and Forestry.

RIEGL VUX 240-24

The RIEGL VUX-24024 is the new version of the proven RIEGL VUX-240, offering higher pulse repetition rates and faster scanning speed for further increased field performance and workflow efficiency. The sophisticated design enables integration with UAS/UAV/RPAS and adequate crewed aero planes or helicopters.

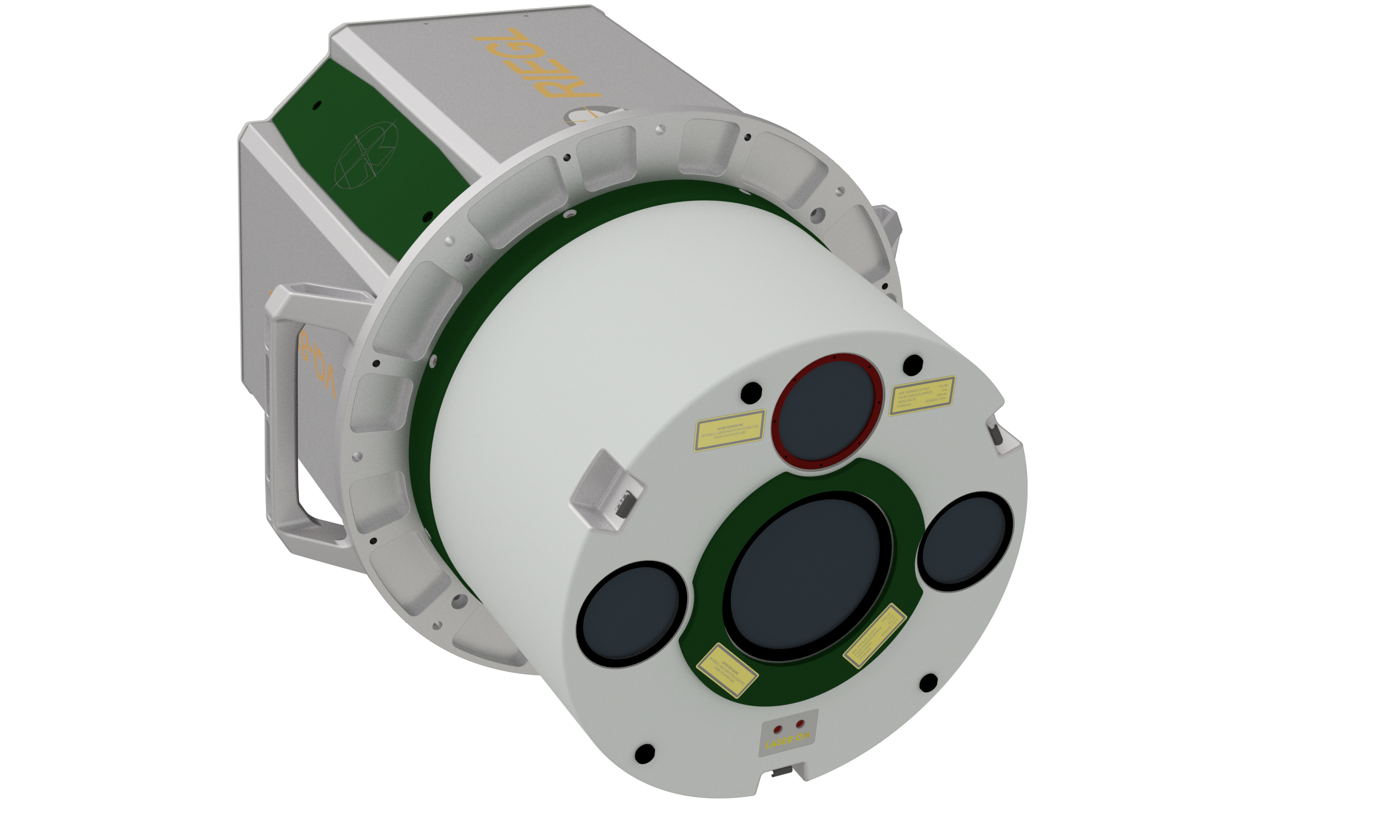

RIEGL VQ-860-G

The RIEGL® VQ-860-G airborne laser scanner with increased performance enhances depth penetration in surveying inland waters and near shore waters for even more efficiency in bathymetric applications. The complete system is offered with an optionally integrated and factory-calibrated IMU/GNSS system and a digital camera.

RIEGL VQ-840-G

The RIEGL VQ-840-G is a fully integrated compact airborne laser scanner for combined bathymetric and topographic surveying. The system is offered with an optionally integrated and factory-calibrated IMU/GNSS system and can be complemented with an optional camera or IR rangefinder. The VQ-840-G is a compact and lightweight LiDAR system to be installed on various platforms including UAVs.


RIEGL VQ-840-GL

The RIEGL® VQ-840-GL is a fully integrated, compact airborne laser scanner for combined topographic and bathymetric surveying. The proven form factor and the use of very lightweight material enable a reduced weight of less than 10 kg (22 lbs), making the VQ-840-GL suitable for integration into crewed aircraft and UAVs.

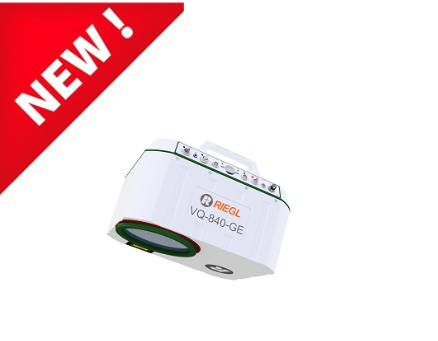

RIEGL VQ-840-GE

The RIEGL® VQ-840-GE is a fully integrated compact airborne laser scanner for combined topographic and bathymetric surveying. Its compact and very lightweight design facilitates integration into UAVs. The system can be offered optionally with an integrated and factory-calibrated IMU/GNSS system and an optional camera.
