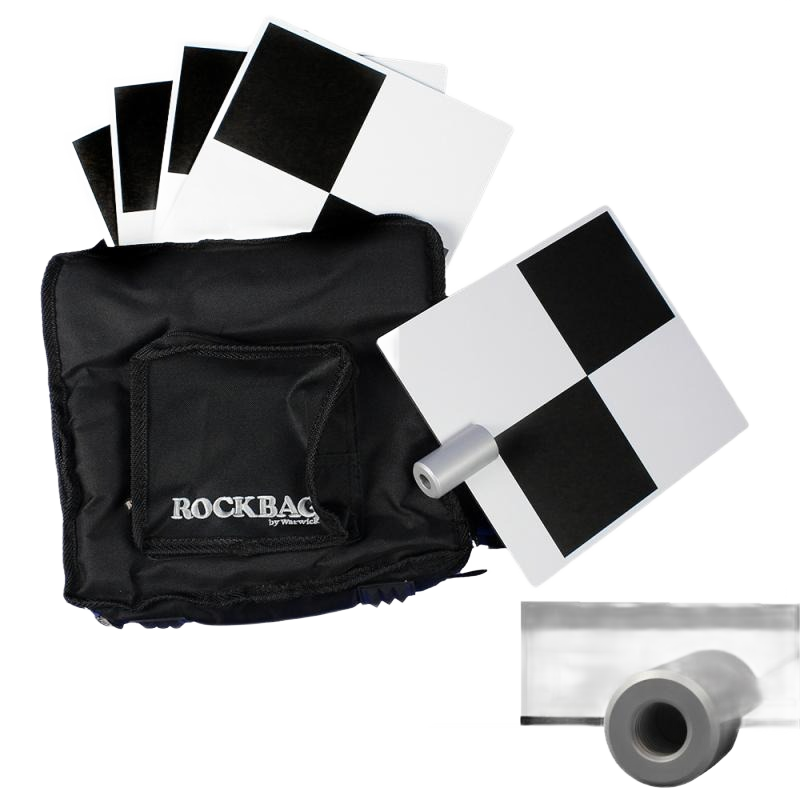

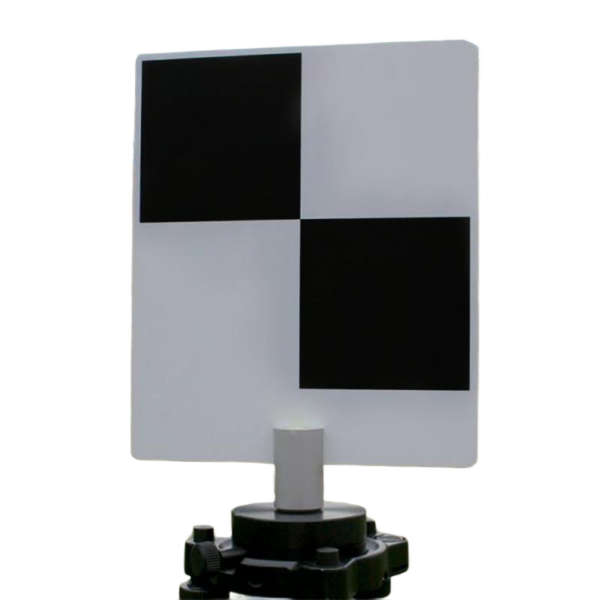

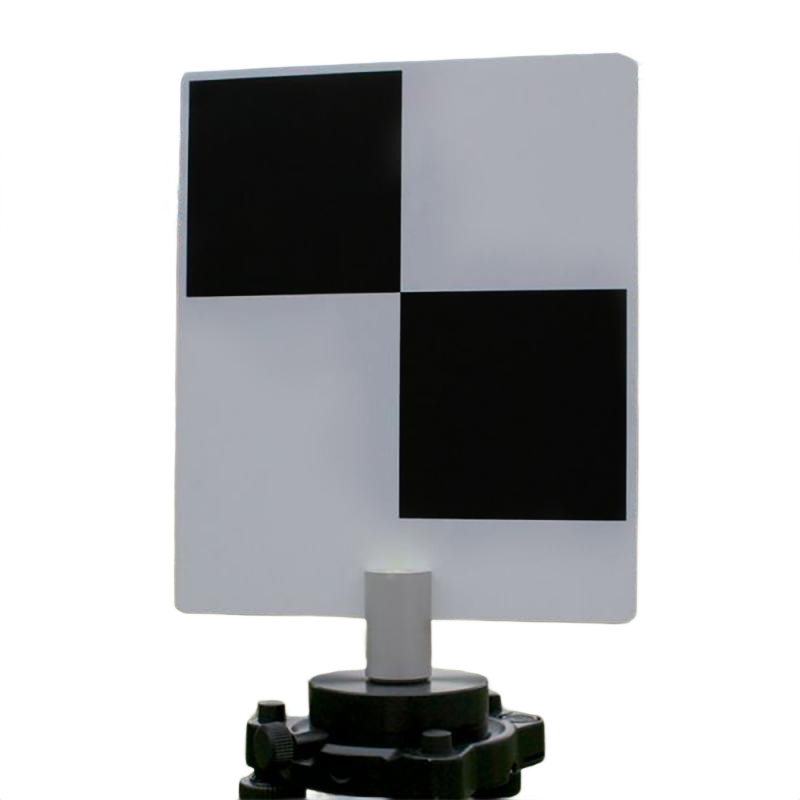

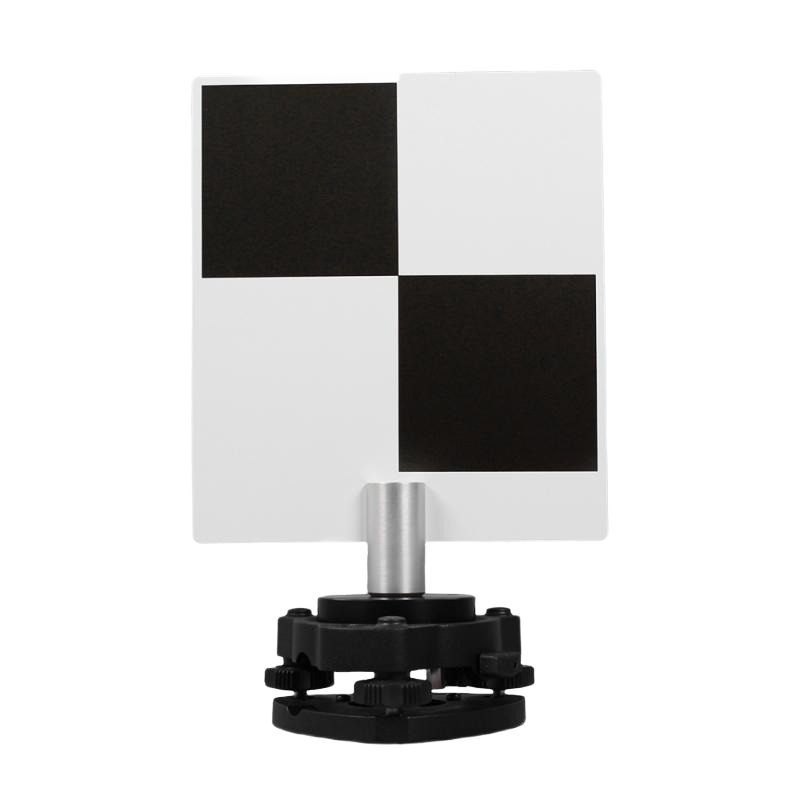

Laser Scanner Target Plates (Small) Set

The Laser Scanner Target Plates (Small) Set combines multiple compact checkerboard targets in a practical set designed for laser scanning and surveying applications. The targets offer long-distance visibility while maintaining compact transport dimensions, making them suitable for projects that require multiple reference points.

The checkerboard pattern is aligned precisely with the mounting axis, ensuring that when the target is leveled, the center point remains unchanged in position and height during rotation. The set includes a padded, water-repellent transport bag for protection and easy transport.

Product Features

• Suitable for measurement with laser scanners and reflectorless total stations.
• Torsionally rigid, lightweight aluminum composite panels.
• Weather-resistant construction.
• Absolutely flat surfaces for reliable measurement results.
• Integrated spirit level.
• Compact target design for easy transport.
• Checkerboard axis aligned with the mounting axis.
• Supplied with a padded, water-repellent carrying bag.

Technical Specifications

• Target dimensions: 24 × 21 cm
• Checkerboard marking size: 20 × 20 cm
• Target visibility up to 25 m
• Standard tilting axis height of 196 mm when using the 5/8-inch connection with a 32 mm high tripod

Purpose of Use

• Reference target marking for laser scanning projects.
• Flexible setup using tripods and prism poles.
• Registration and control point workflows.

Areas of Application

• Architecture, building and monument preservation.
• Digital factory and plant engineering.
• Mining and tunneling.
• Energy and utility companies.
• Aircraft manufacturing.
• Shipbuilding.
• Forensic investigations.

Available Mounting Options

• Leica plug-in pin.
• 5/8-inch connection.
• M8 thread with magnetic base.
