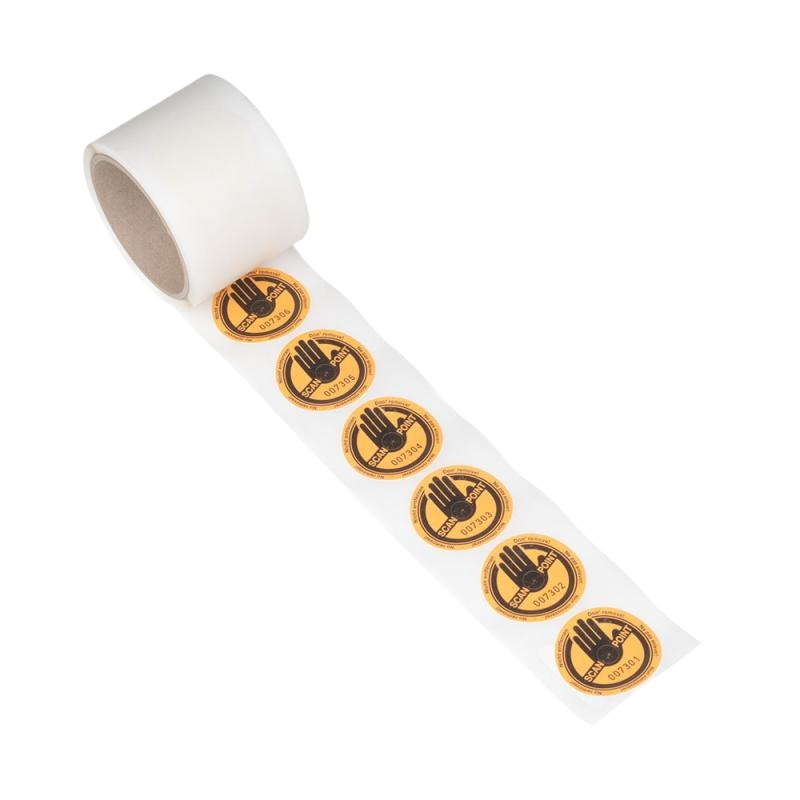

3D measurement point sticker (100 piece)

Overview

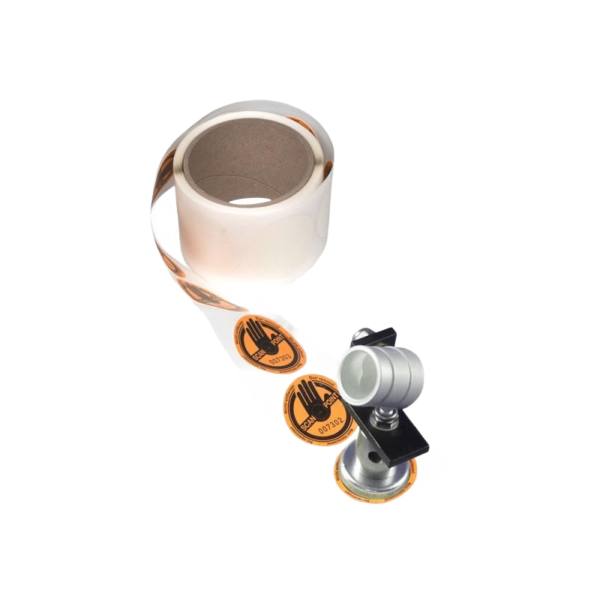

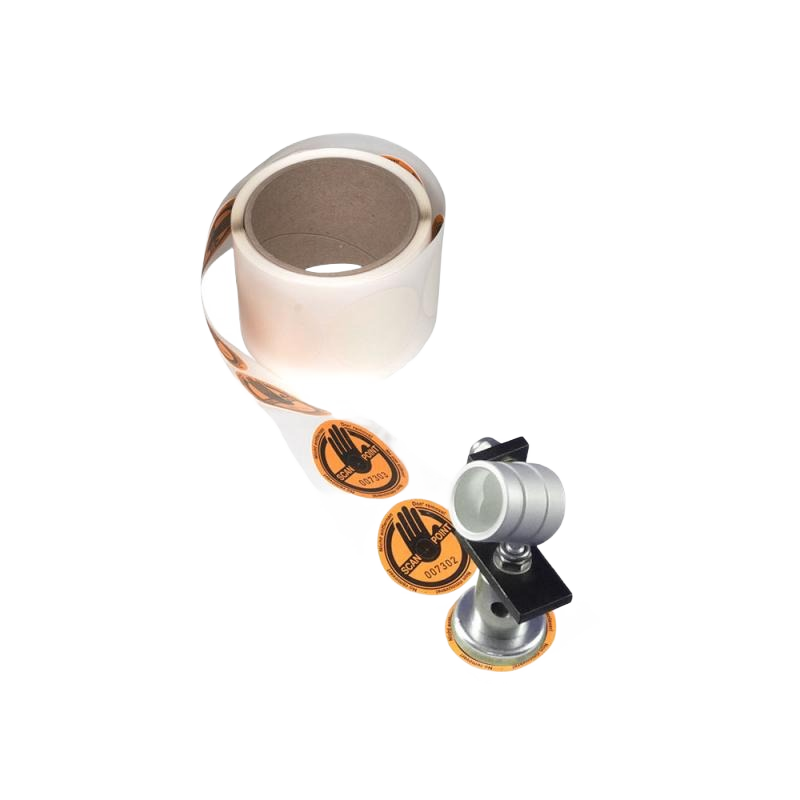

3D measurement point stickers simplify measurement workflows by providing clearly marked reference locations. Once applied, the stickers allow measurement spheres, target markers, and mini prisms to be repeatedly positioned at the same point for registration, coordinate determination, and repeat measurements.

Product Features

• Diameter: Ø 50 mm
• Printed ring diameter: Ø 40 mm
• Suitable for compatible magnetic mounts
• Single-sided self-adhesive
• Strong adhesion, including on rough and fibrous surfaces
• Waterproof
• Weather-resistant
• Age-resistant
• Printed with two concentric circles:
  • 40 mm diameter
  • 42 mm diameter
• The 40 mm circle is intended for normal temperatures
• The 42 mm circle can be used in cold temperatures or after long-term application where material contraction may occur
• Temperature resistance (30 min.): 130°C
• Removable inner hole punch: Ø 10 mm
• Consecutively numbered for unique identification
• Silicone-free
• Printed with the message “Do not remove” as a symbol and in three languages

Storage Information

• Shelf life: approximately 12 months when stored in a cool, dry place
• Temperature fluctuations and heat exposure should be avoided
• Significant temperature fluctuations, especially during colder months, can cause dimensional changes due to the flexible fabric material and rubber adhesive

Purpose of Use

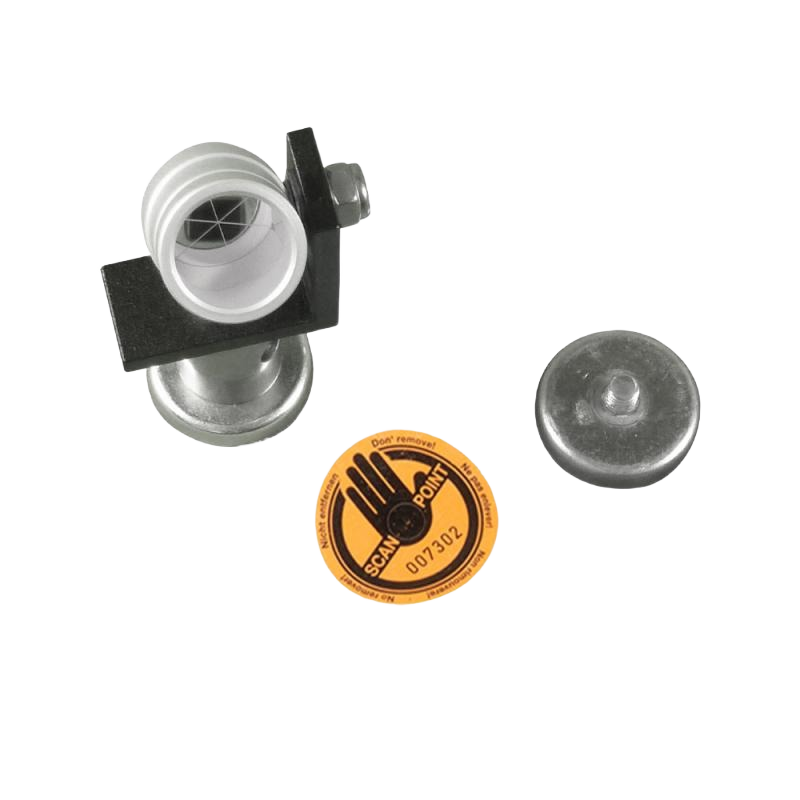

• Marking locations for repeat positioning of measurement spheres and prisms

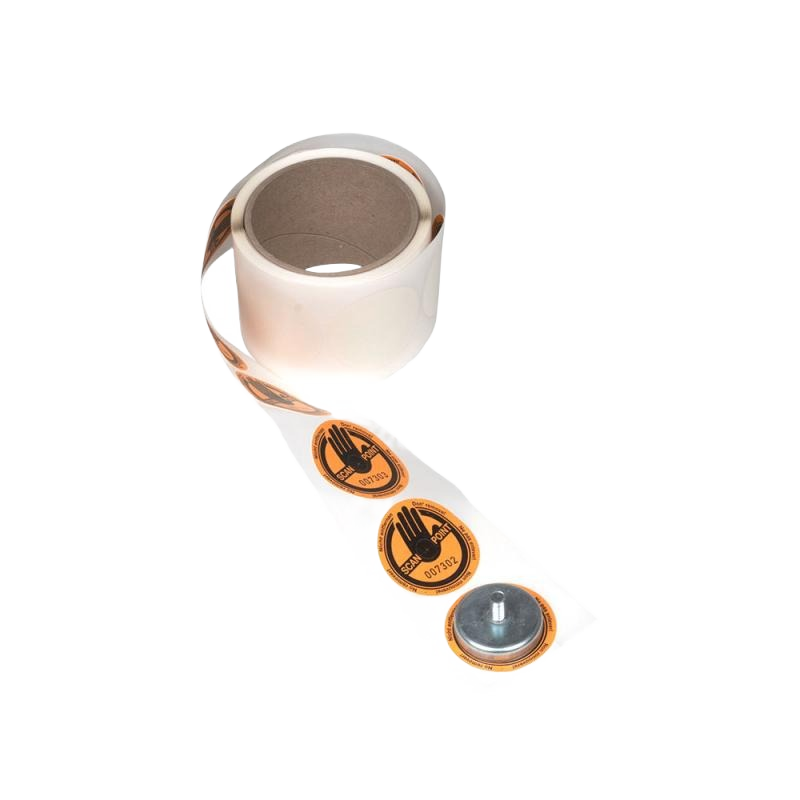

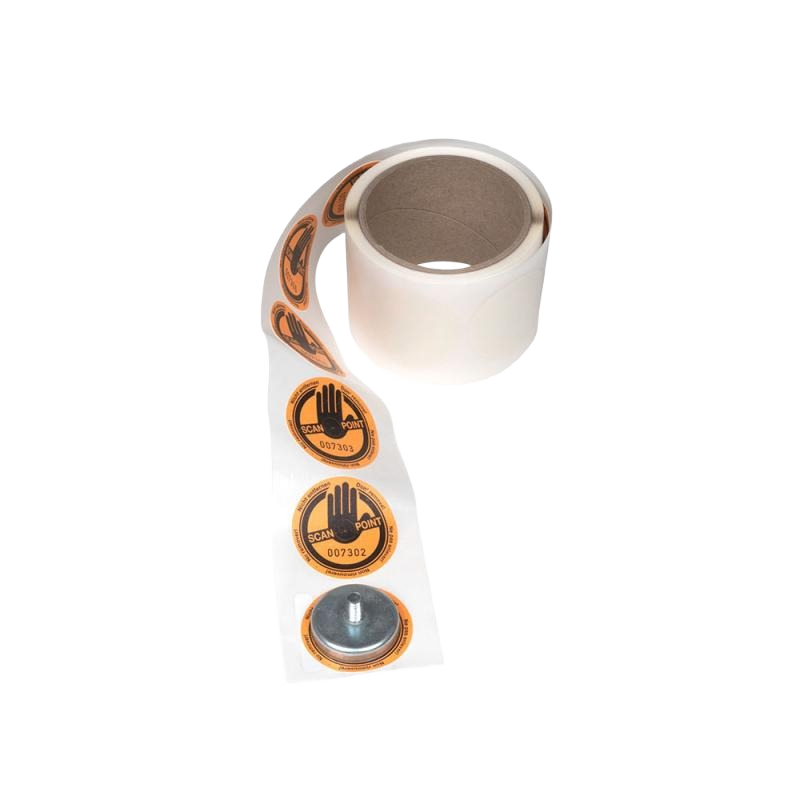

• Marking points for magnetic holders
• Marking points for threaded bolts

Areas of Application

• Architecture, construction and historic preservation
• Digital factory and plant construction
• Mining and tunneling
• Energy and utility companies
• Aircraft and shipbuilding
• Foundries and steel industry
• Chemical and process industry
• Forensics

Compatibility

Compatible with:

• All Laserscanning Europe reference spheres with a magnet
• All Laserscanning Europe target markers with a magnet
• All Laserscanning Europe mini prisms with a magnet
