Laser Scanner Reference Sphere Set (Basic)

Overview

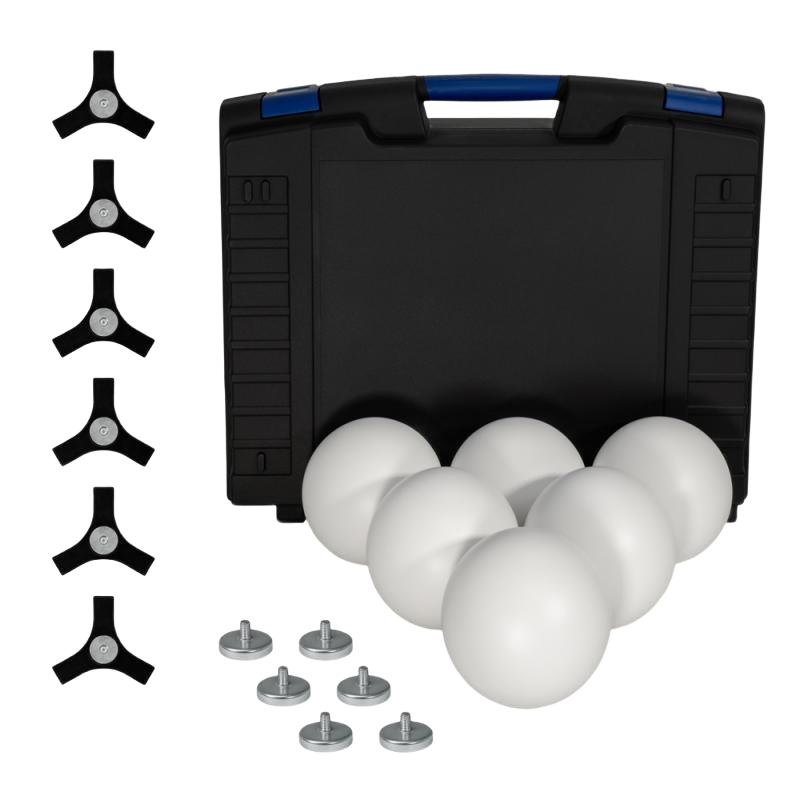

The Laser Scanner Reference Sphere Set (Basic) provides a complete reference target solution for laser scanning projects. The set includes reference spheres with a special reflective coating, magnetic mounting bases, and a durable transport case with custom-fit padding for secure storage and transportation.

The spherical design enables reliable target detection from virtually any direction, making the spheres well suited for registration and alignment workflows across a wide range of scanning projects.

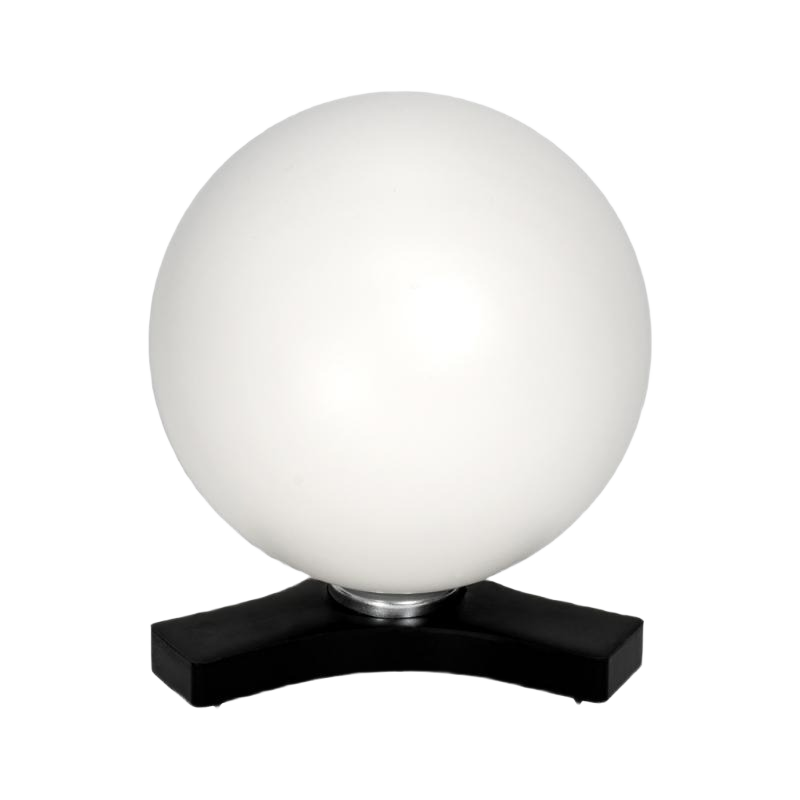

Reference Sphere Features

• Diameter: Ø 145 mm
• Spherical shape for optimal visibility from multiple directions.
• Proven reference target for laser scanning applications.
• Hollow plastic sphere with special coating for optimal reflection properties.
• Includes magnetic mounting base.
• Open special connection with M8 female thread suitable for mini prisms (Part No. 030-90023).
• Manufactured in Germany.

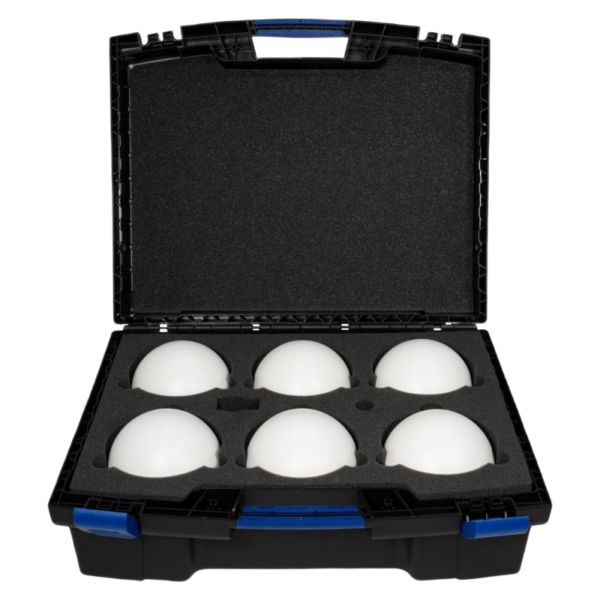

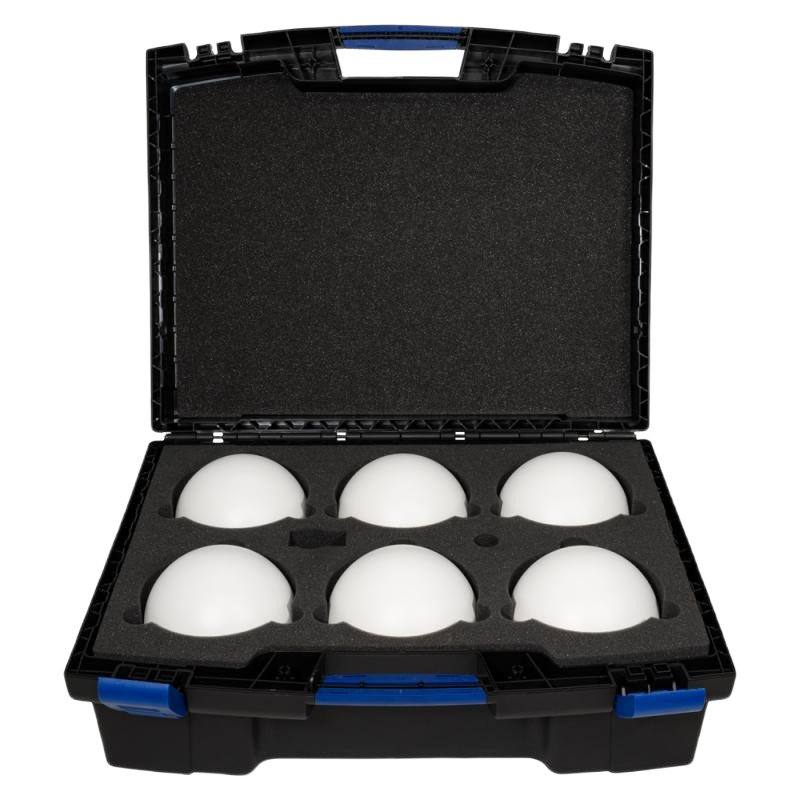

Transport Case Features

• Case dimensions: 575 × 470 × 205 mm
• Durable transport case with custom-fit inner padding.
• Secure storage and transportation of all components.
• Manufactured from recycled materials.

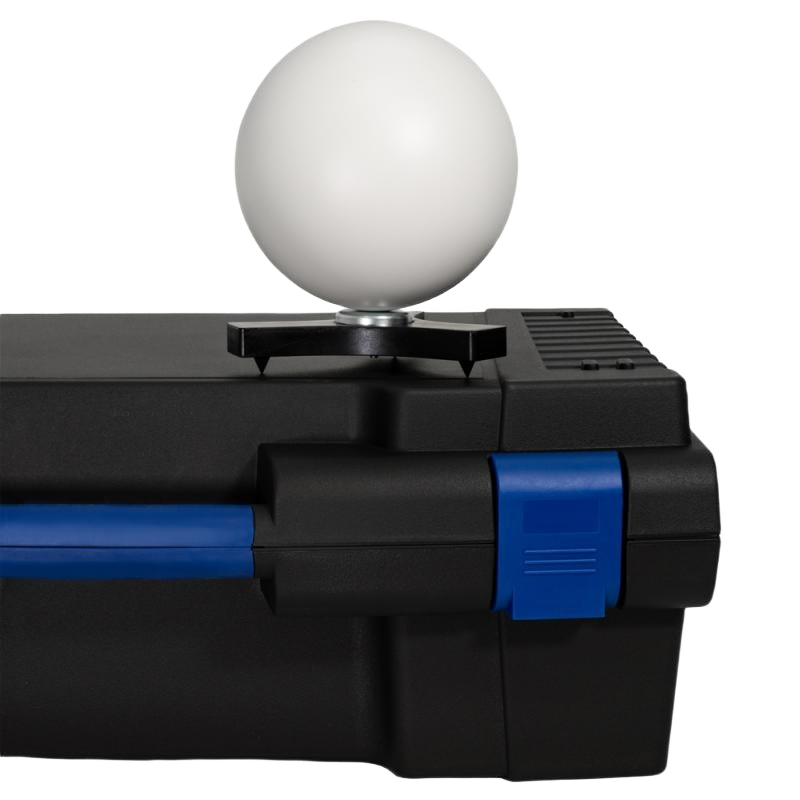

Reference Sphere Pedestal Features

• Weight: 0.15 kg
• Dimensions: Diameter 16 cm, Height 2 cm
• Material: High-strength plastic.
• Durable and corrosion-free construction.
• Precision metal disc interface for magnetic sphere positioning.
• Integrated spikes on the underside for secure placement.

Applications

• Architecture, construction and historic preservation.
• Digital Factory projects.
• Aircraft construction.
• Forensic documentation.
