3D measuring point disk for attaching reference spheres on walls, concrete or wooden surfaces

The 3D measuring point disk is designed for projects where no magnetic surface is available for mounting a reference sphere. Once installed, the disk provides a fixed reference location, allowing compatible reference spheres and mini prisms to be positioned repeatedly in the same place for registration and coordinate determination.

Product Features

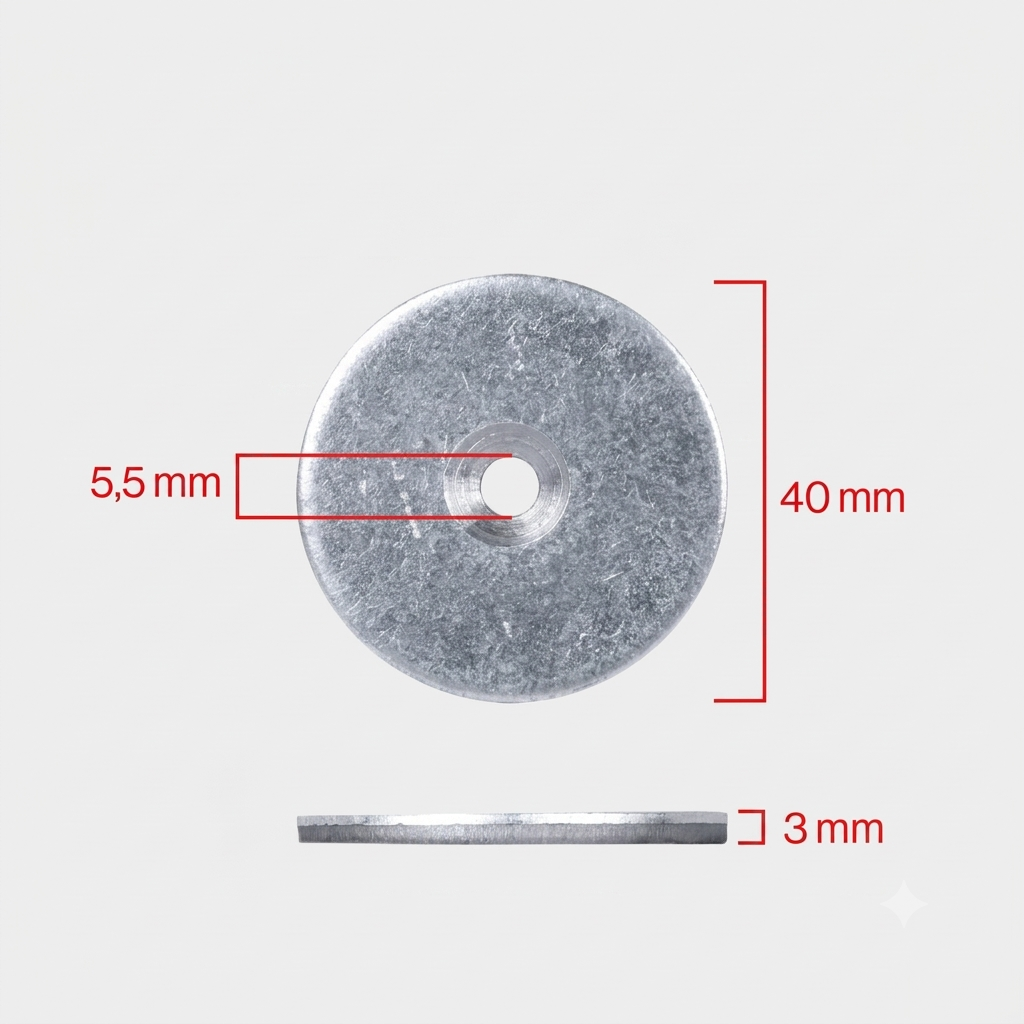

• Metallic disc with Ø 40 mm diameter
• Suitable for magnetic mounting of compatible reference spheres

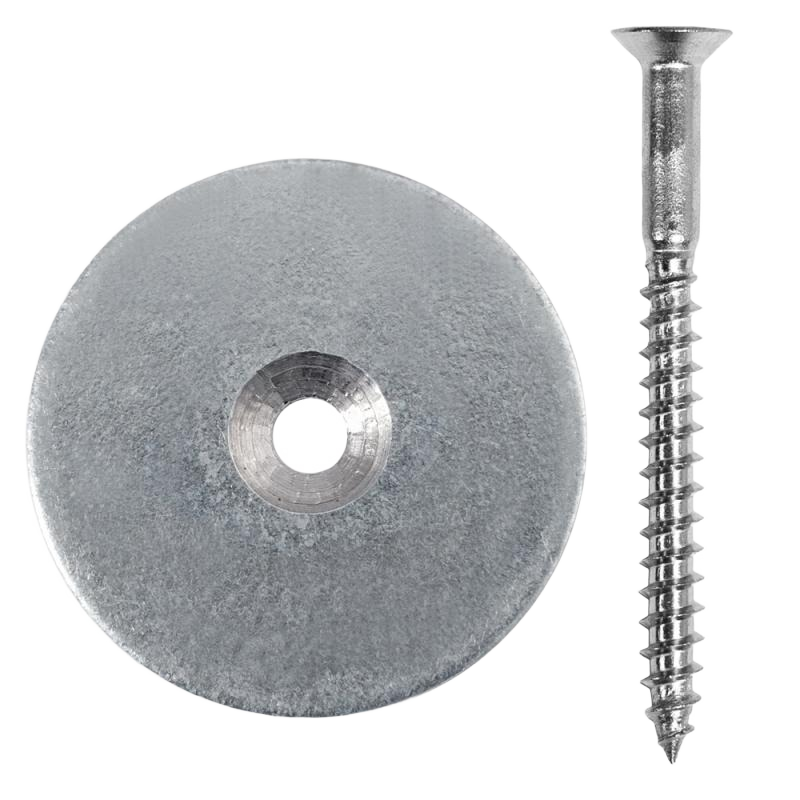

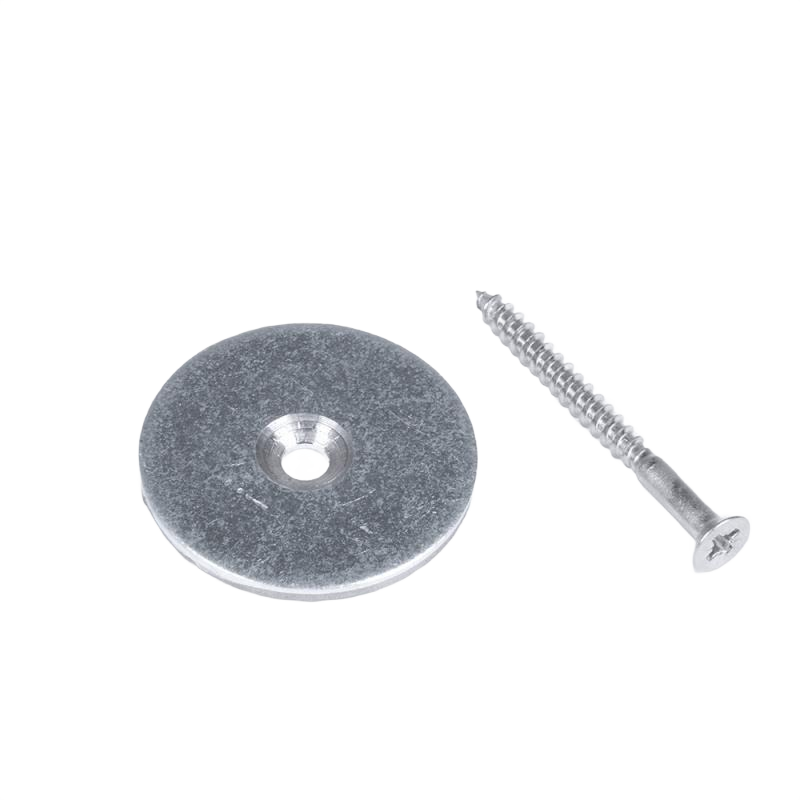

• Central hole for screw mounting
• Countersunk hole design

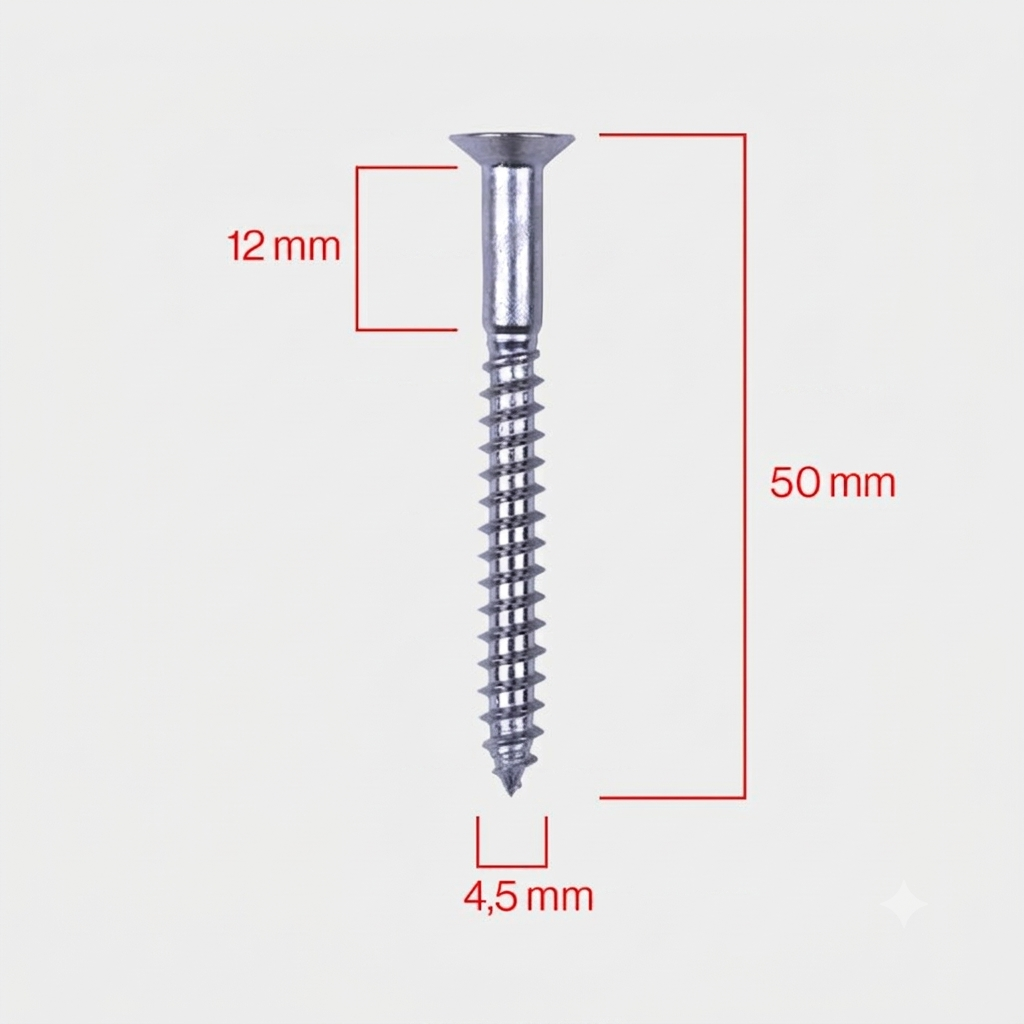

• Included screw sits flush and does not protrude

Purpose of Use

• Permanent measuring point for reference spheres

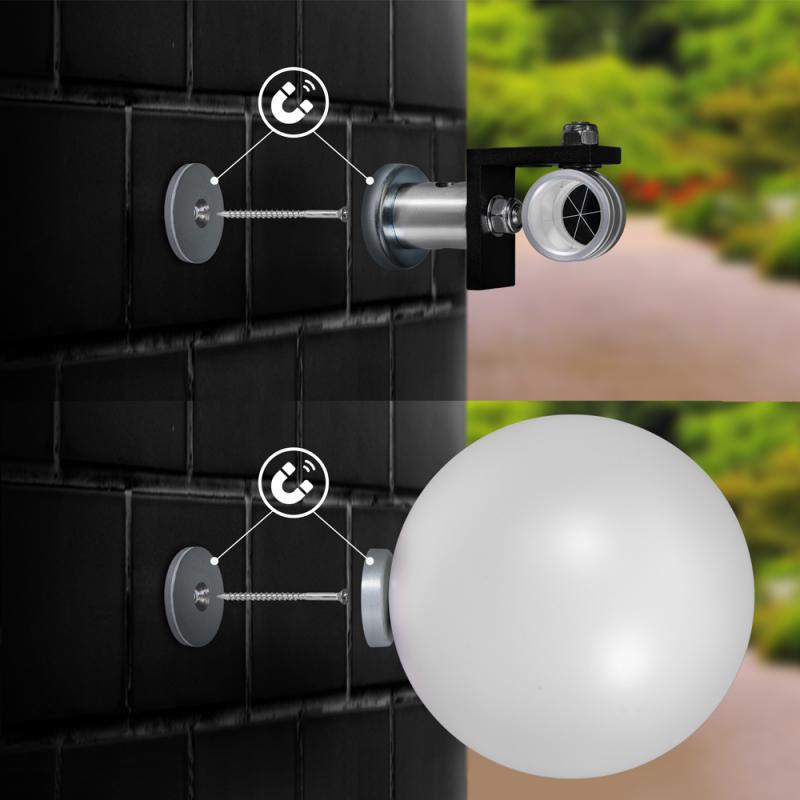

• Positioning and centering of magnetic reference spheres
• Registration and identification of reference spheres
• Coordinate determination using a total station

Areas of Application

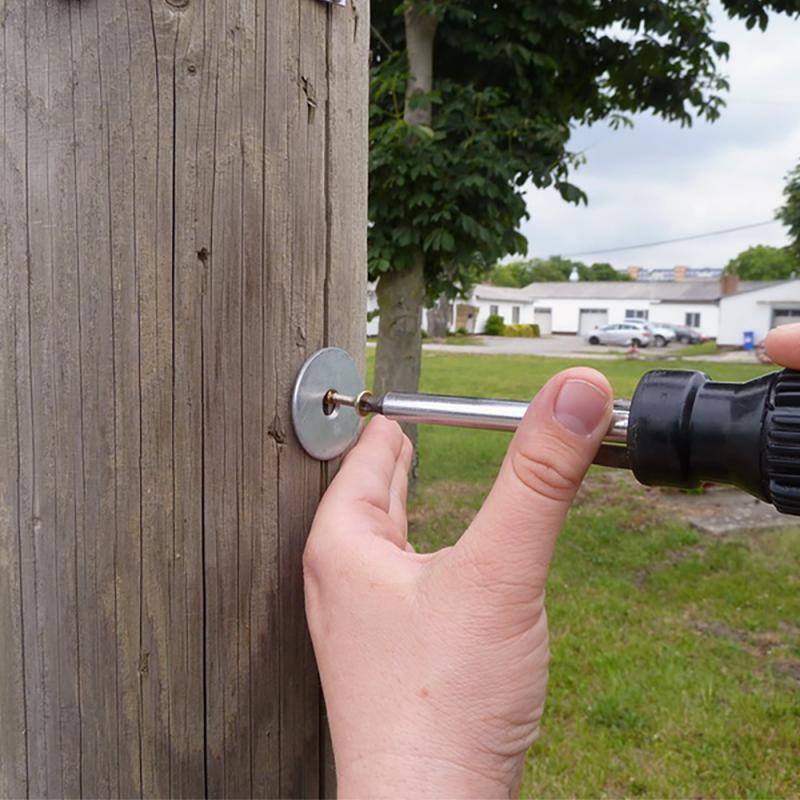

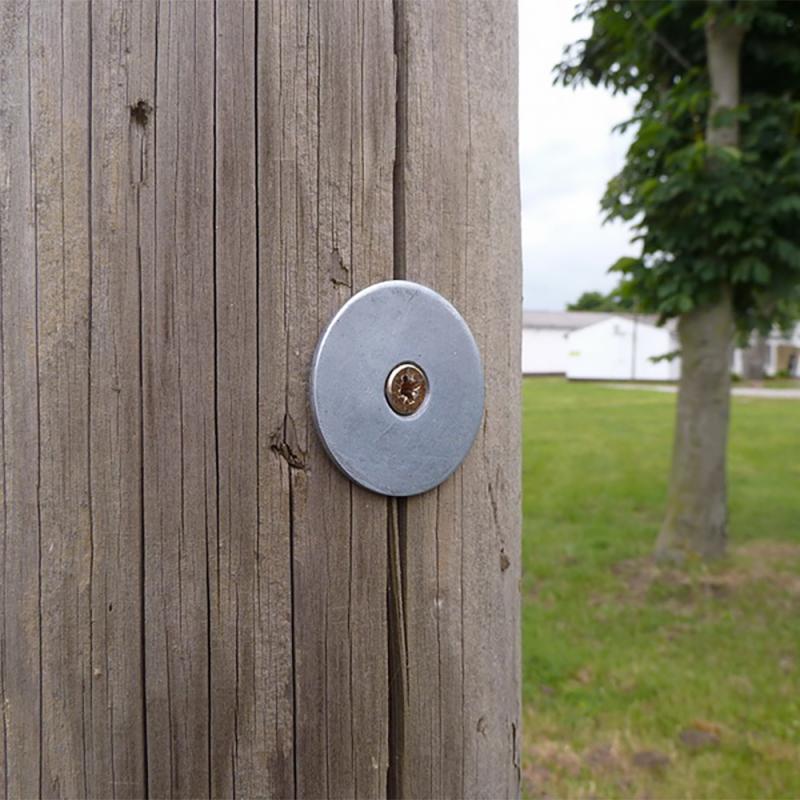

• Permanent mounting on:
  • Walls
  • Concrete
  • Wood
  • Other suitable surfaces
• Scanning of old walls
• Scanning of ruins
• Scanning of retaining walls
• Alternative to 3D measuring point marking stickers where sticker application is not possible

Compatibility

Compatible with:

• Mini prisms
• All Laserscanning Europe reference spheres
