Adapters from M8 to Leica pin

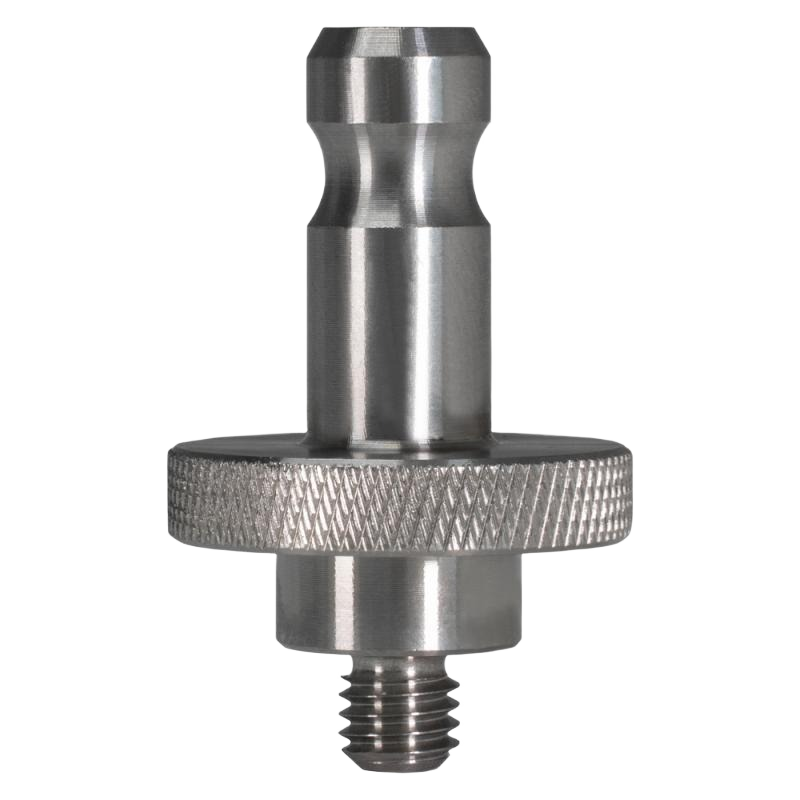

M8 to Leica Connection Adapter

This adapter features an M8 external thread on one side and a Leica pin connection on the other, enabling compatible accessories to be connected to Leica-based mounting systems. The integrated knurled edge allows easy installation and removal while providing a secure grip during handling.

Product Features

• Material: Stainless steel
• Weight: 70 g
• Size: 50 mm × Ø 30 mm
• Connection 1: M8 external thread
• Designed for screwing into a track adapter
• Connection 2: Leica pin Ø 12 mm
• Leica pin length: 27 mm
• Knurled edge: Ø 30 mm
• Adapter length (excluding M8 thread): 40 mm

Purpose of Use

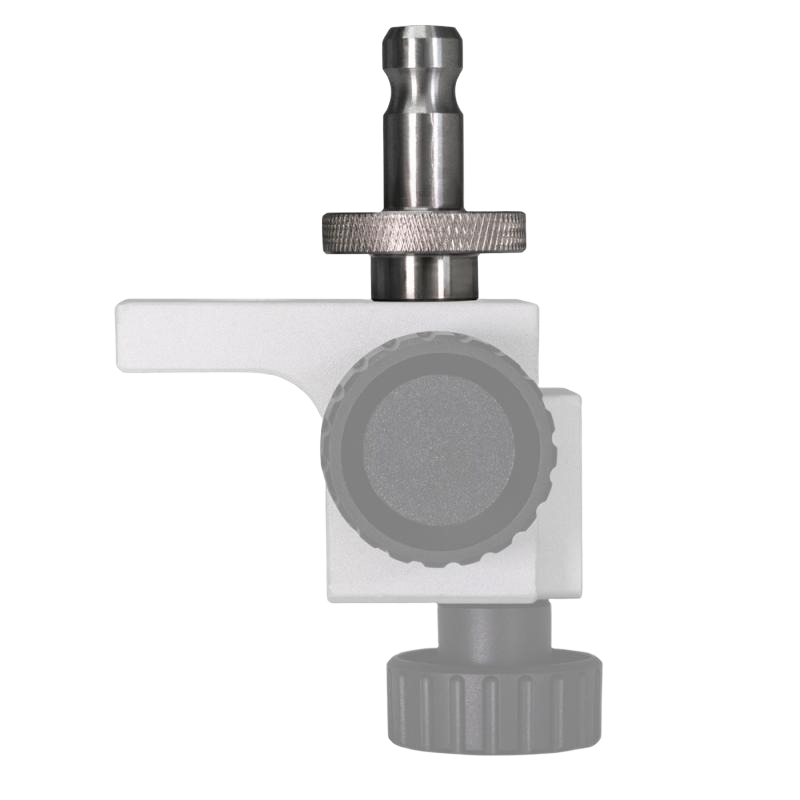

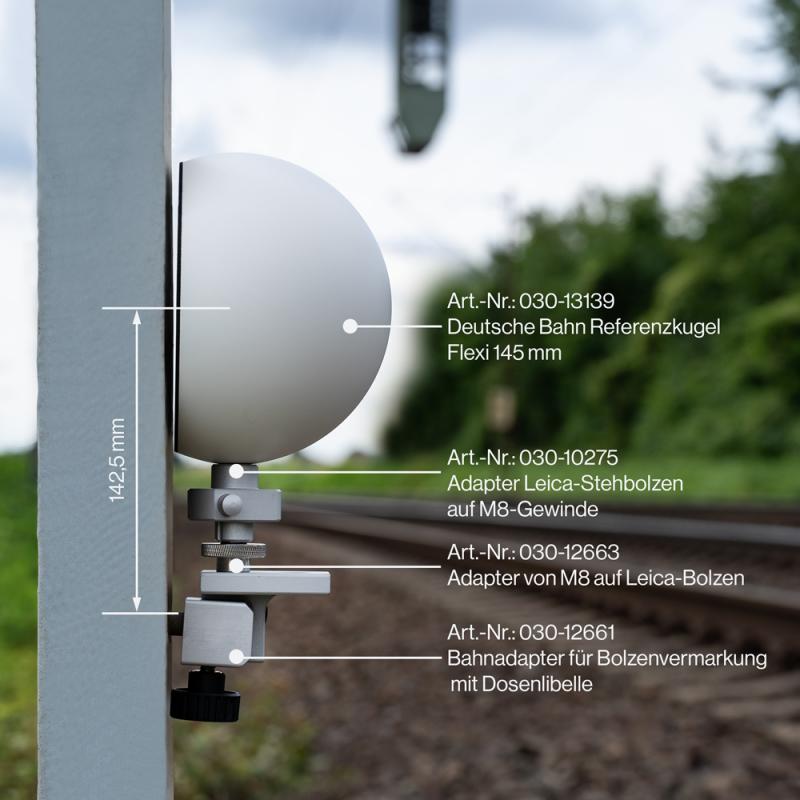

• Mounting on a track adapter
• Connecting compatible accessories with an M8 threaded interface to a Leica pin connection

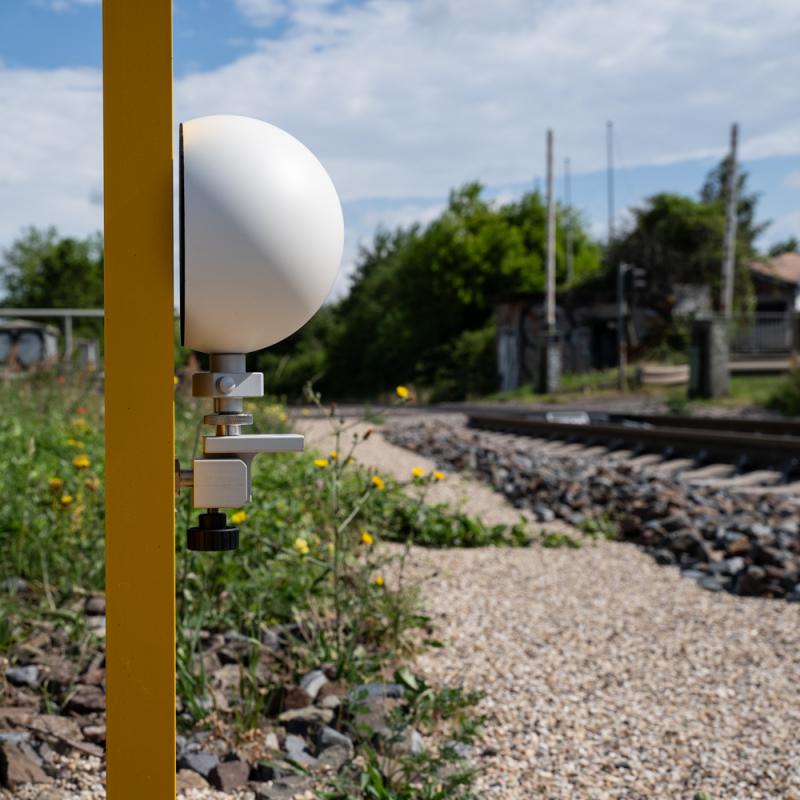

• Surveying and laser scanning setups requiring Leica-compatible mounting

Application Areas

• Surveying workflows
• Laser scanning projects
• Track adapter installations
• Leica-compatible mounting applications
