Adapters M8 male thread – M8 male thread

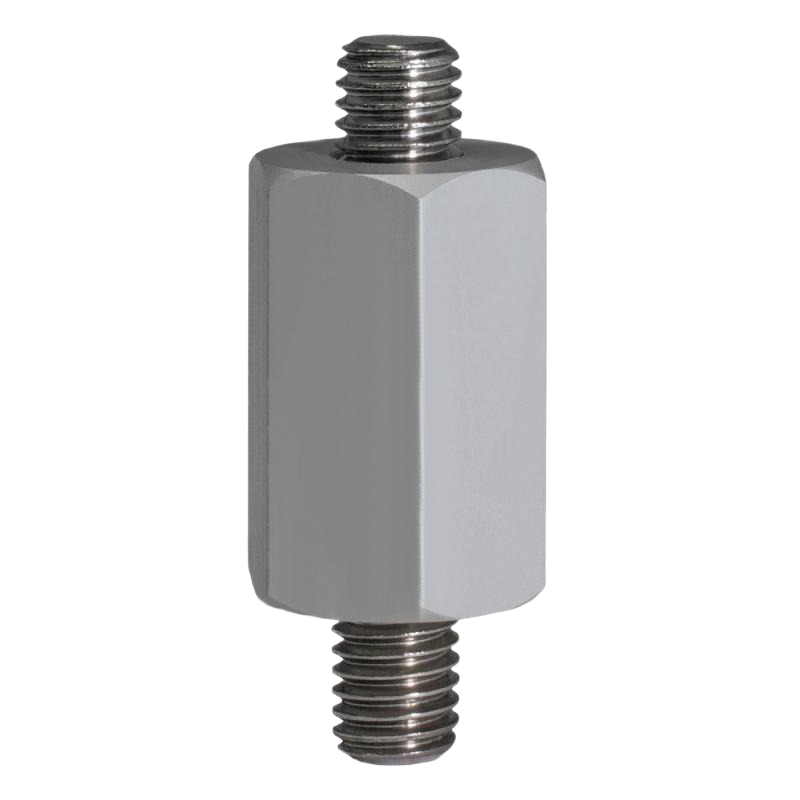

M8 to M8 Threaded Connection Adapter

This adapter features M8 external threads on both ends, providing a simple solution for connecting compatible accessories that utilize M8 threaded interfaces. Manufactured from aluminum, it offers a lightweight and practical connection component for reference sphere and adapter installations.

Product Features

• M8 external thread on both sides
• Manufactured from aluminum
• Size: 45 mm × 17 mm × 17 mm
• Weight: 27 g
• Adapter length (excluding M8 thread): 27.5 mm
• Connection 1: M8 external thread
• Connection 2: M8 external thread

Application Areas

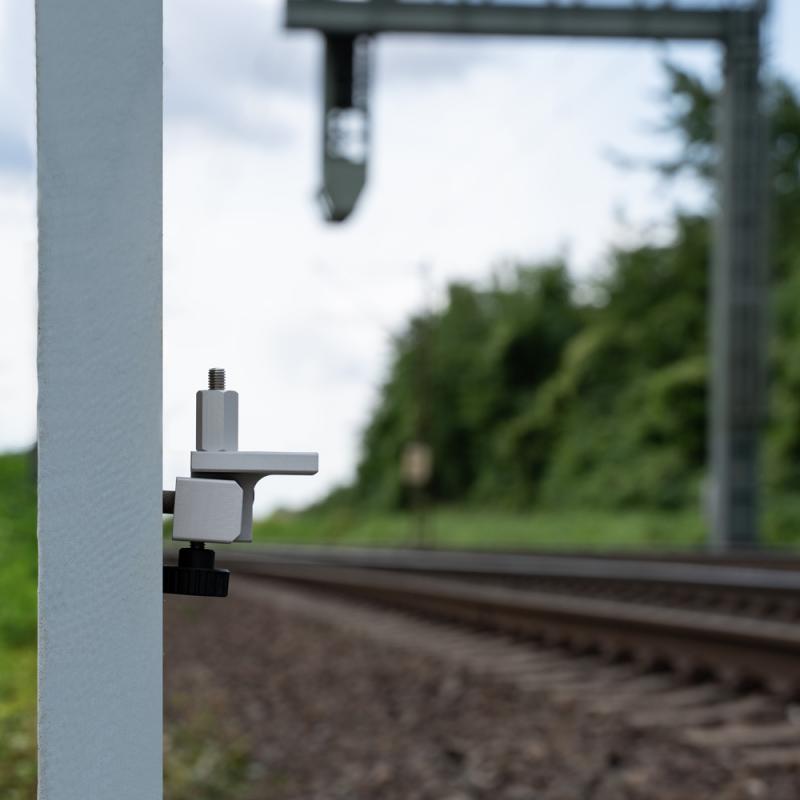

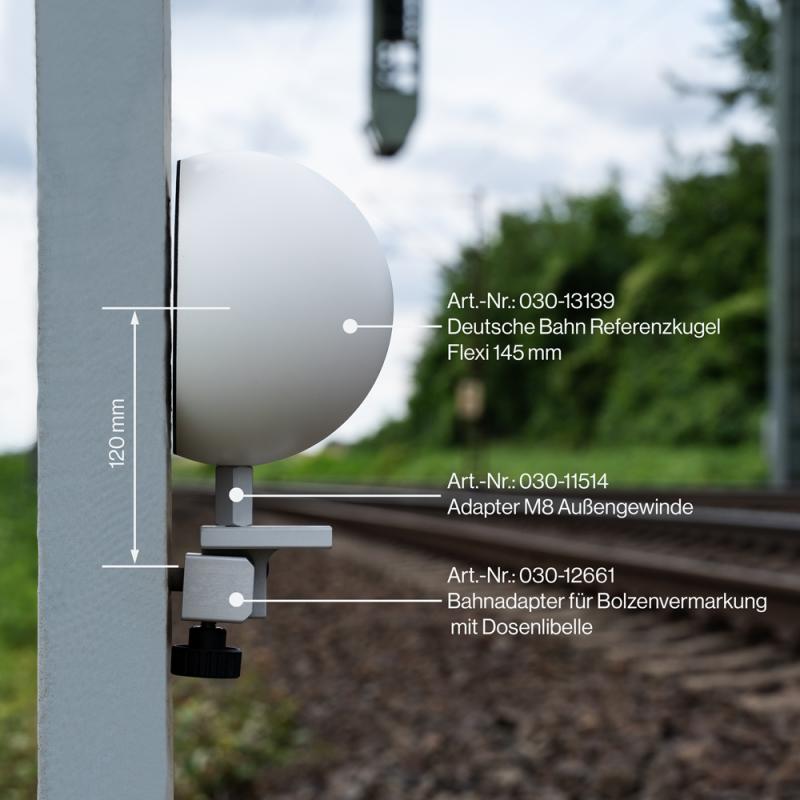

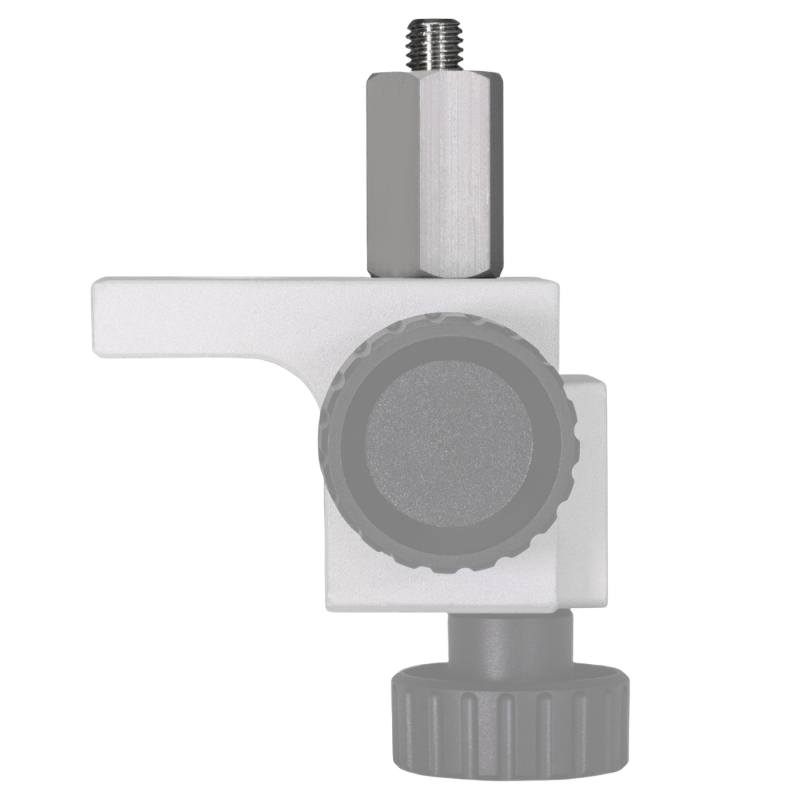

• Use with track reference spheres (030-13139) on track adapters (030-12661)

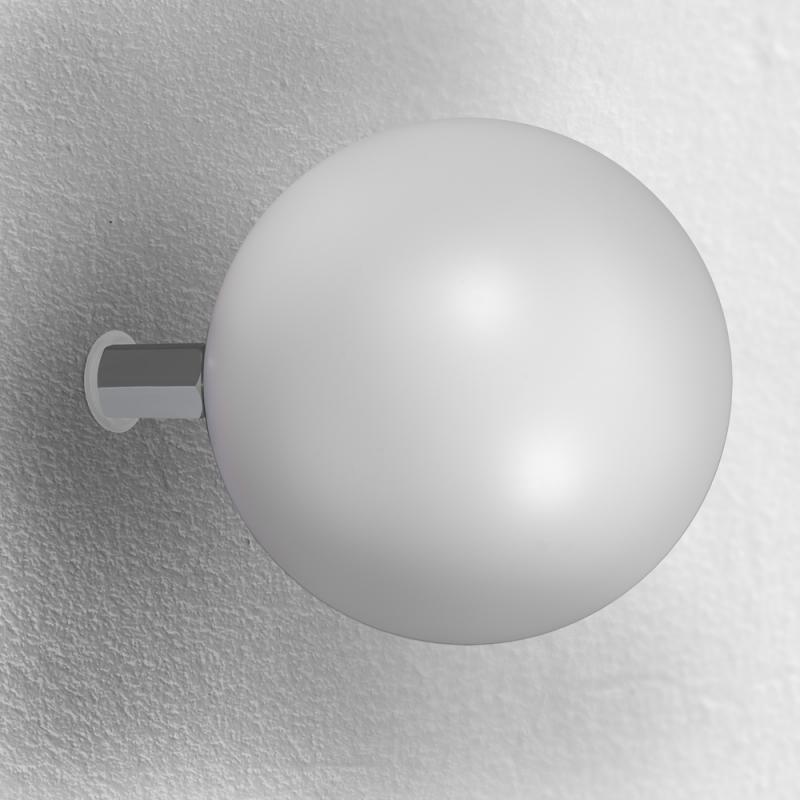

• Mounting a 145 mm reference sphere to an M8 wall bolt
• Mounting a 145 mm reference sphere to other compatible M8 internal thread connections
• Installations where a reference sphere must be positioned away from the mounting surface

Additional Information

• When attaching a 145 mm reference sphere to an M8 wall bolt or compatible M8 internal thread, the distance from the center of the reference sphere to the wall is 100 mm.
