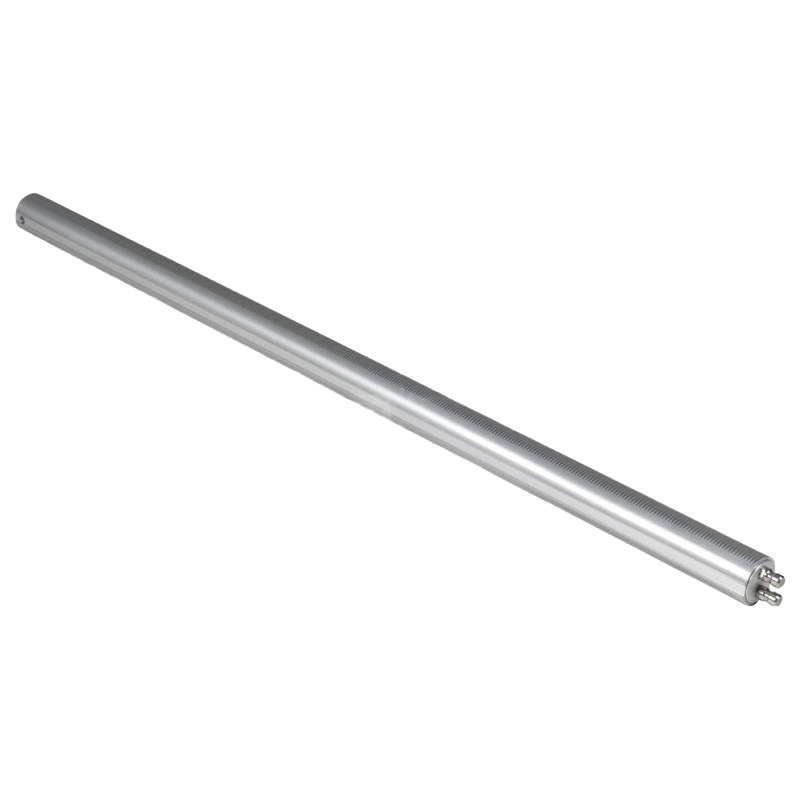

Extension tube (1m length) for 2-way tripod

Overview

The 1 m Extension Tube for 2-Way Tripods is a spare part designed for use with compatible 2-way crank tripods. It can be used as a replacement pole or as part of an approved tripod configuration where additional height is required.

Product Features

• Replacement pole for compatible 2-way crank tripods.
• Length: 1 m.
• Designed as a spare or replacement component.
• Suitable for approved tripod extension configurations.

Technical Specifications

• Length: 1 m
• Weight: 1150 g

Important Notes

• The 2-way crank tripods are approved for continuous use with 4 extension poles, which are already included with each tripod.
• Use of more than 4 extension poles is at the user’s own risk.
• The combined weight of all extension poles and the mounted scanner must not exceed 20 kg.
• When operating the tripod at maximum height, ensure correct vertical alignment and a stable setup.
• Increasing height affects the tripod’s tipping point and overall stability.
• Vibrations may occur during scanning when used above 4 m height.
• Wind can increase vibrations during outdoor operation.
• Do not use the tripod in strong wind conditions.
