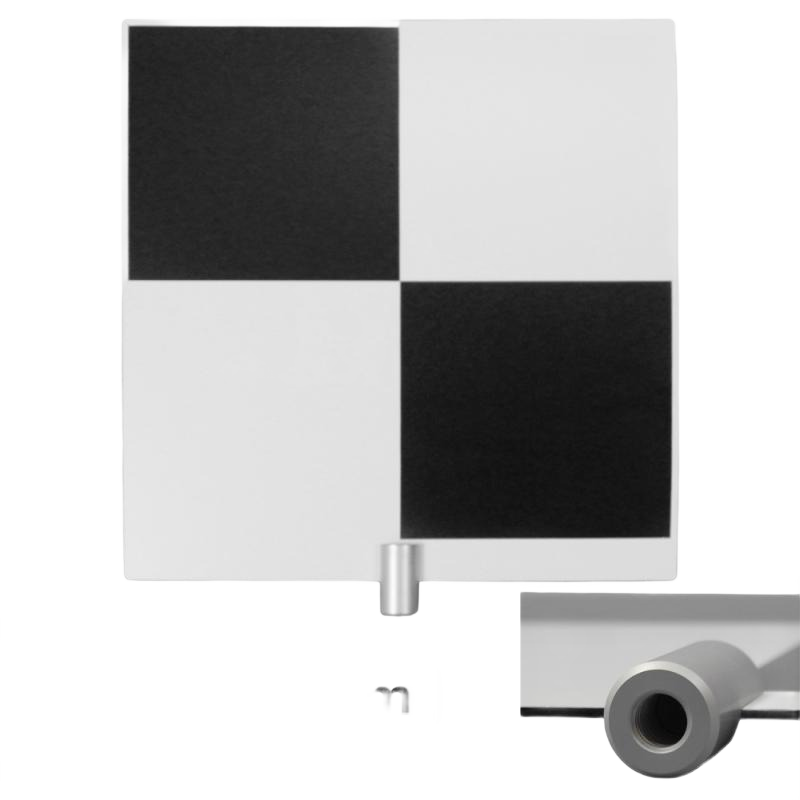

Large Laser Scanner Target Plates

The Large Laser Scanner Target Plates provide a flexible and reliable reference target solution for laser scanning applications. Designed for long target distances and convenient transportation, the target plates combine robust construction with precise geometry to support accurate measurements in the field.

Manufactured from torsionally rigid aluminum composite panels, the targets feature absolutely flat surfaces for reliable measurement results and an integrated spirit level for accurate setup. The target pattern is precisely aligned with the connection axis, ensuring the center point remains unchanged in position and height when rotated around the axis while level.

Product Features

• Suitable for both laser scanners and reflectorless total stations.
• Torsionally rigid and lightweight aluminum composite construction.
• Weather-resistant design.
• Absolutely flat target surfaces for reliable measurement results.
• Integrated spirit level.

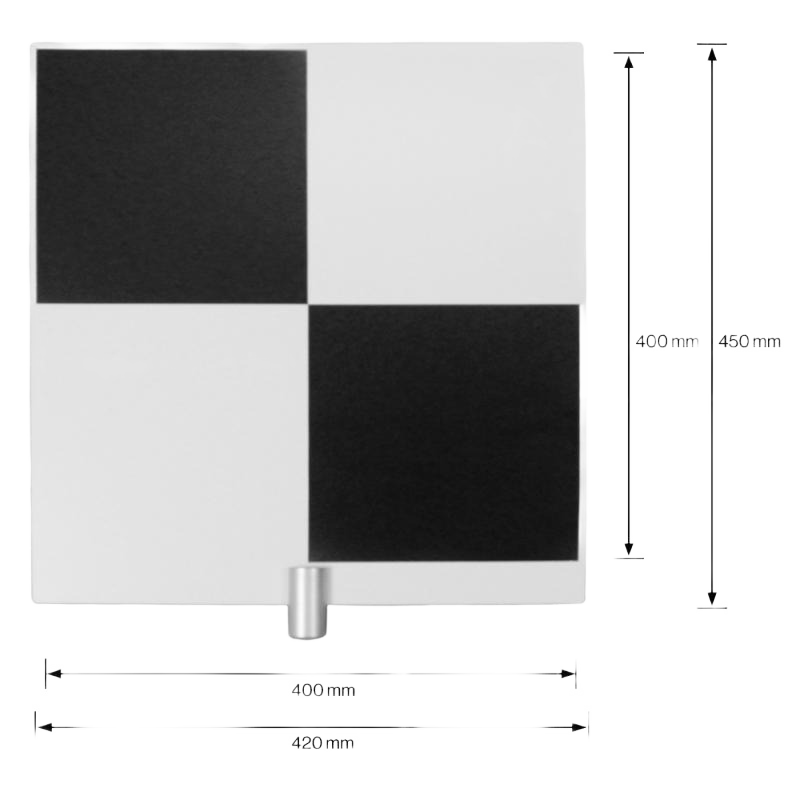

• Panel dimensions: 45 × 42 cm.
• Multiple mounting options available.
• Checkerboard center aligned precisely with the mounting axis.

Purpose of Use

• Long-range target marking up to 45 m.

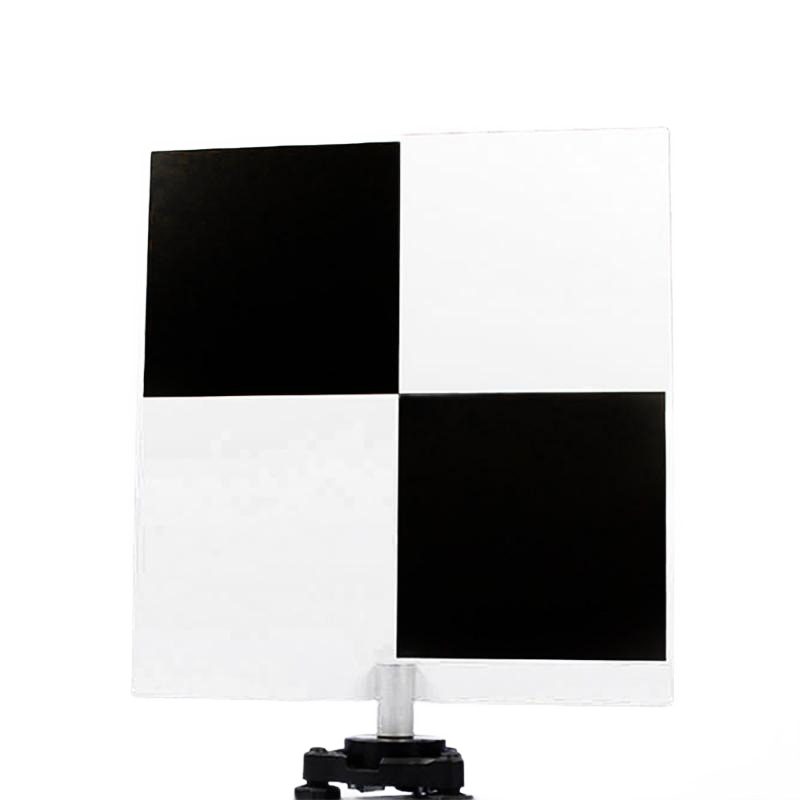

• Flexible setup using tripods, prism poles, and other accessories.
• Reference target for laser scanning and surveying projects.

Areas of Application

• Laser scanning projects with large target distances.
• Site plan and surveying applications.
• Registration and referencing workflows.

Mounting Options

Available connection options include:

• Leica plug-in pin
• 5/8-inch connection
• M8 thread with magnetic base
