Foldable Tripod Dolly

Overview

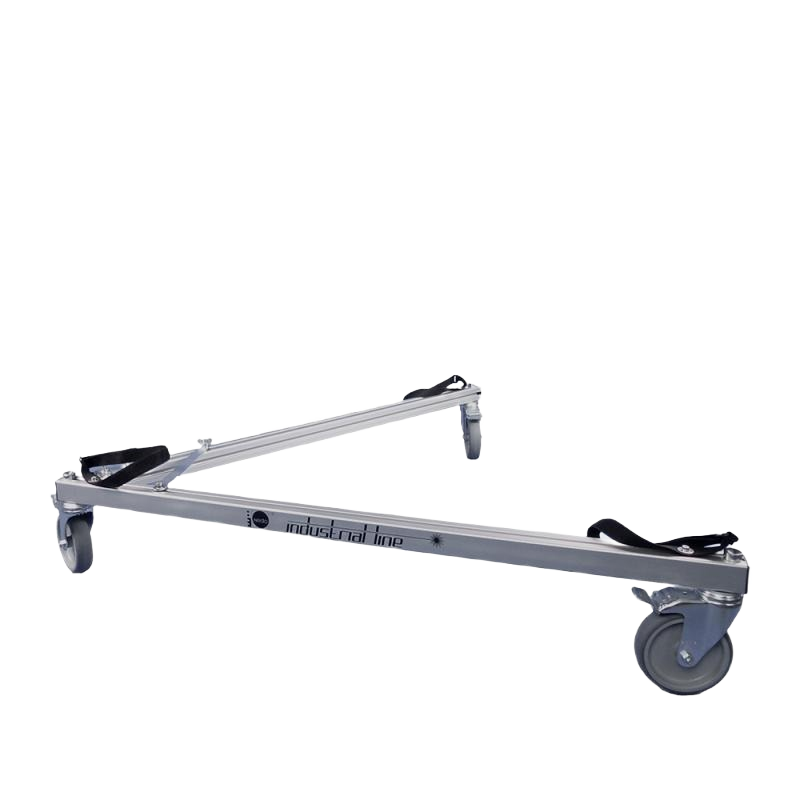

The Foldable Tripod Dolly enables fast and convenient transportation of a laser scanner and tripod without the need to repeatedly dismantle and reassemble equipment between scan locations. Its unique design consists of two foldable legs and an open third side, providing unobstructed access to the scanner and making it particularly useful for scanning tasks that require overhead access.

The tripod is positioned on dedicated support surfaces and secured with straps, while large steerable wheels ensure smooth movement across different environments.

Purpose of Use

• Transport of a laser scanner and tripod between scan positions.
• Reduce setup and relocation time during scanning projects.
• Facilitate movement through narrow doorways and restricted openings.

Product Features

• Constructed from anodized aluminum.
• Triangular design with a robust structure.
• Two foldable legs for flexible positioning and transport.
• Open third side for easier access to the scanner.
• Large steerable wheels (Ø 125 mm) for smooth movement.

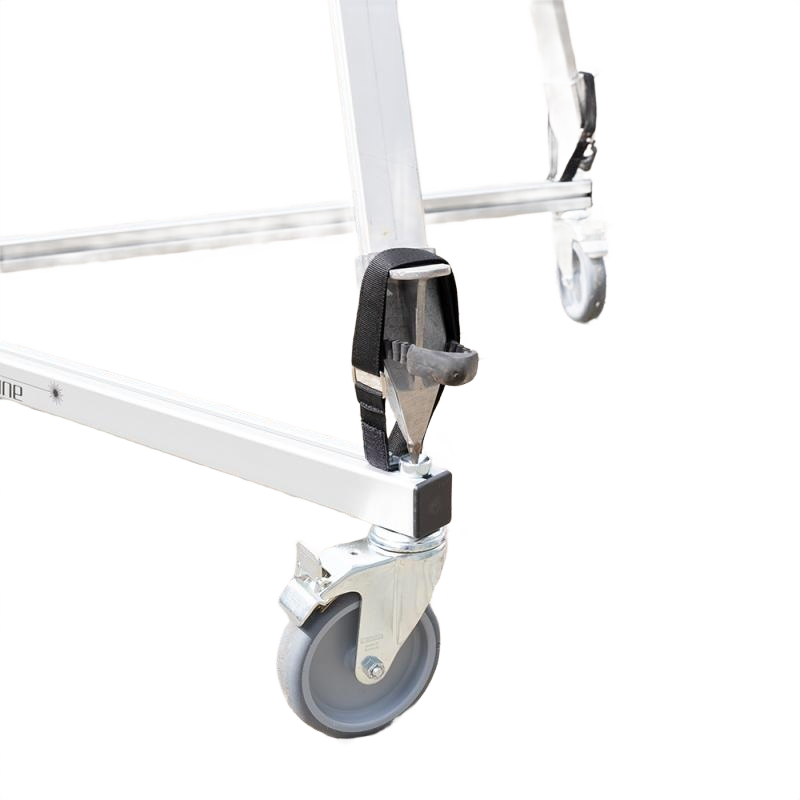

• All wheels can be locked using a lever for stable positioning during scanning.

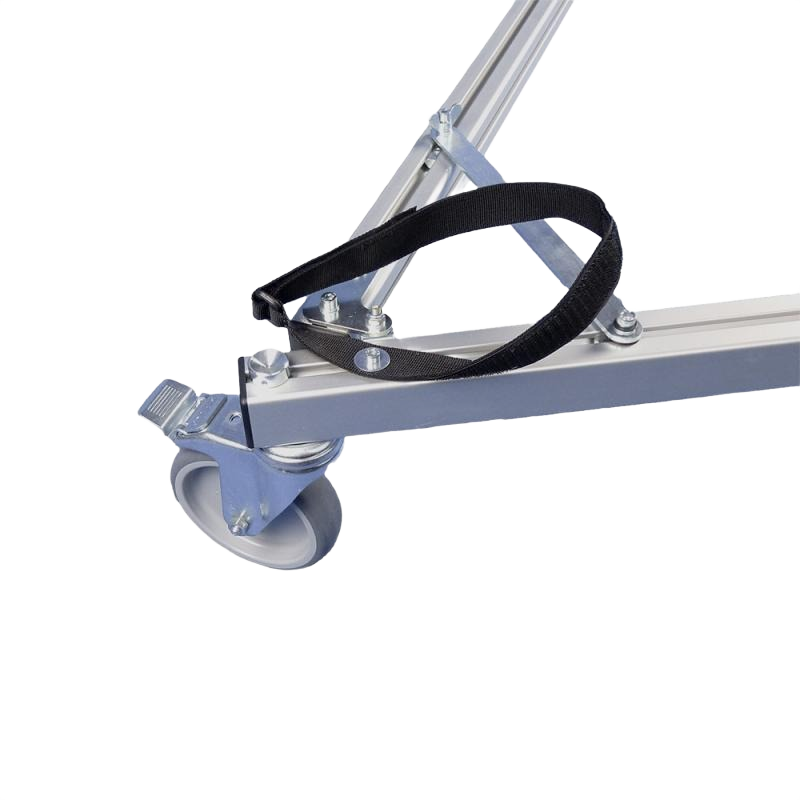

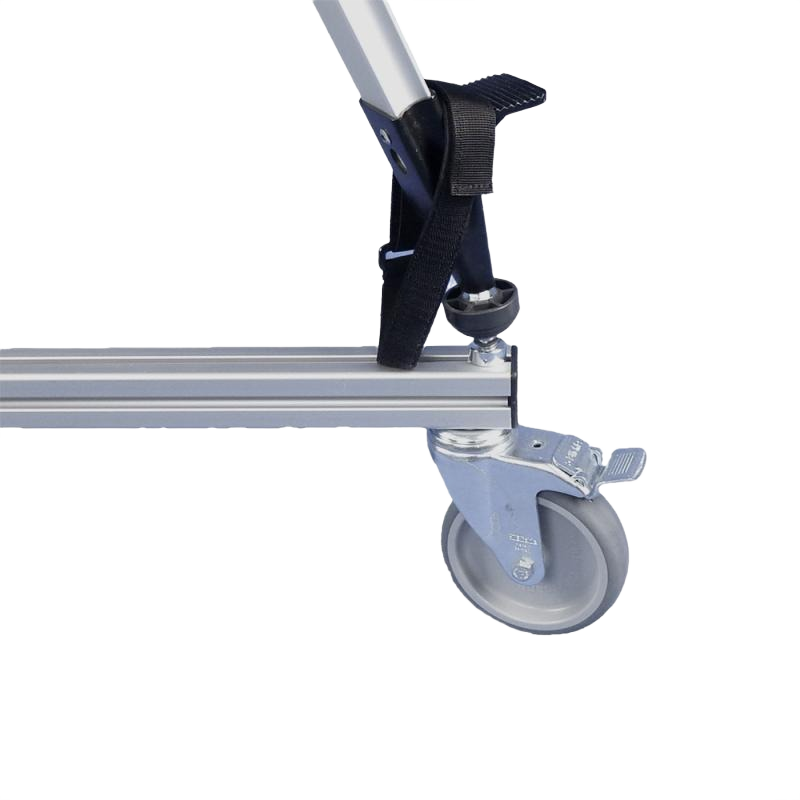

• Tripod secured using straps on dedicated support surfaces.
• Foldable design for easier transport and storage.

Technical Specifications

• Material: Anodized aluminum
• Weight: 6.8 kg
• Height: Approx. 210 mm
• Maximum load capacity: Approx. 60 kg

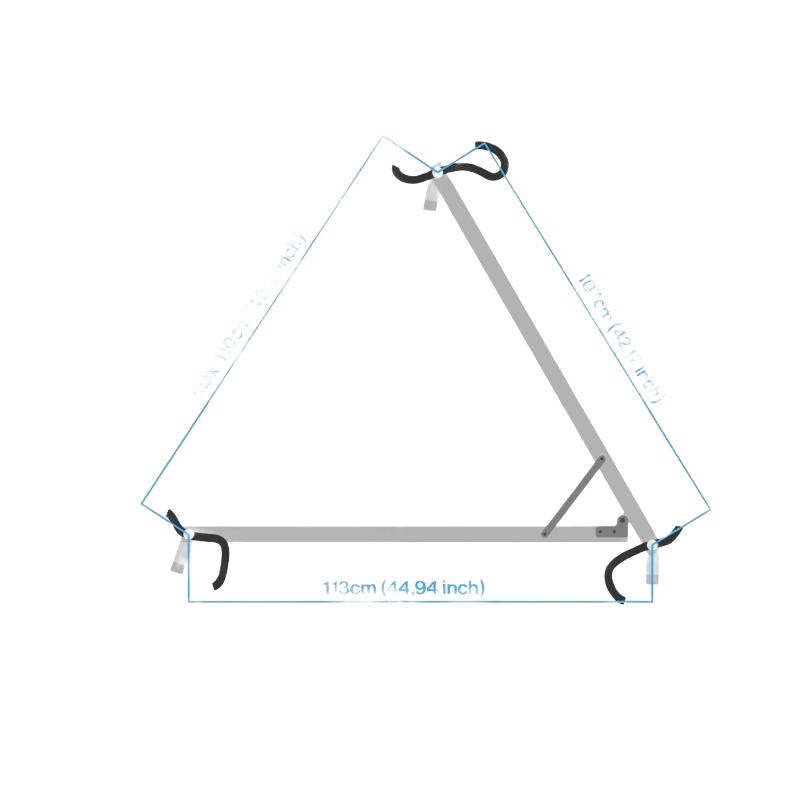

• Distance between tripod support surfaces: 1070 mm
• Transport dimensions: 1180 × 105 × 210 mm
• Wheel diameter: 125 mm

Tripod Compatibility

• Universally suitable for carbon tripods.
• Universally suitable for aluminum tripods.
• Compatible with tripods that can be secured using straps attached to the tripod base.
