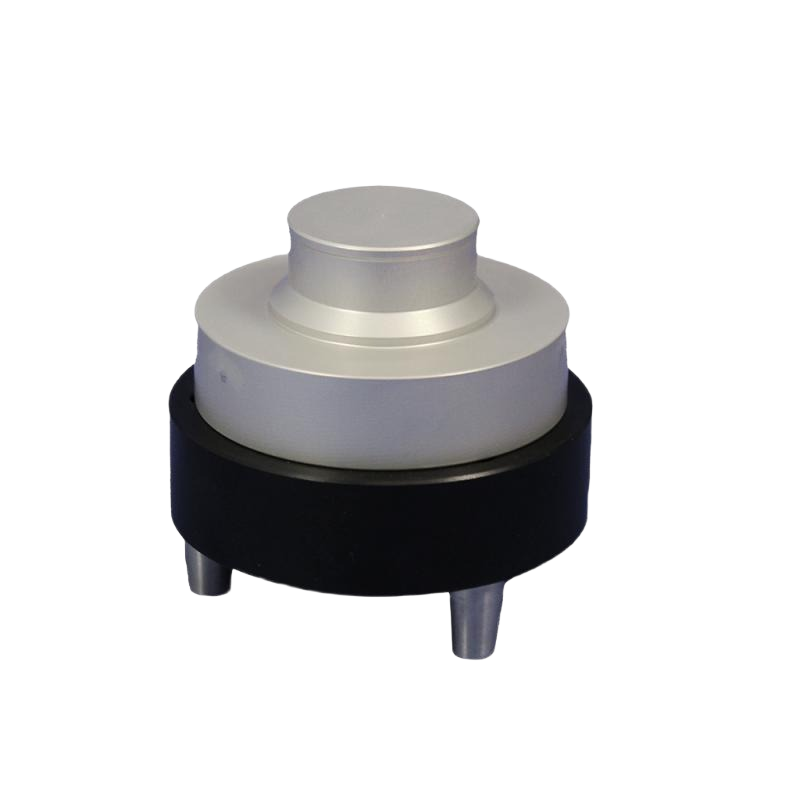

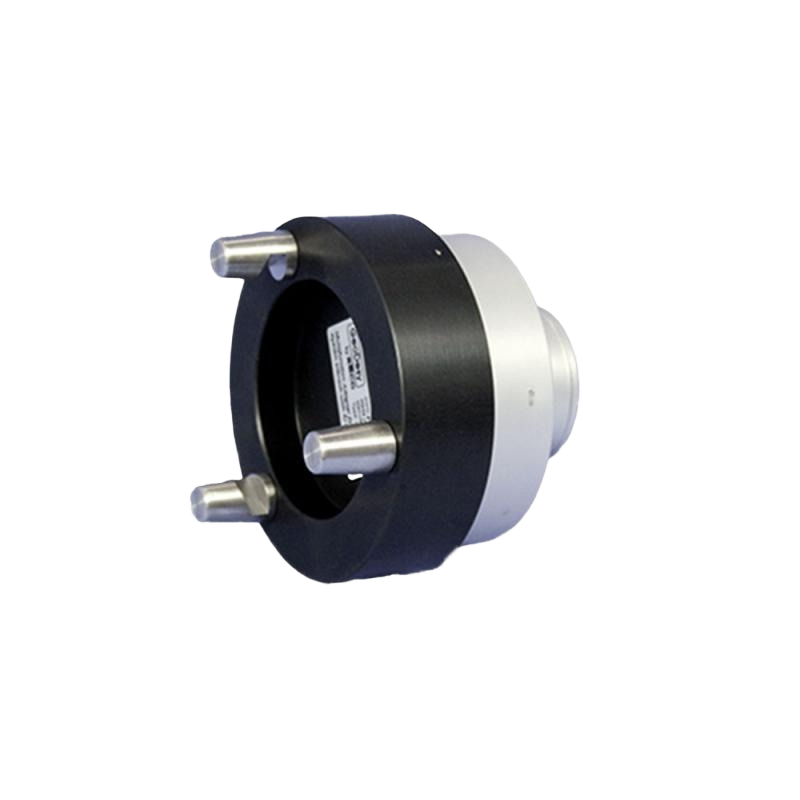

Tribrach Adapters for FARO with ATS/FARO quick release

Overview

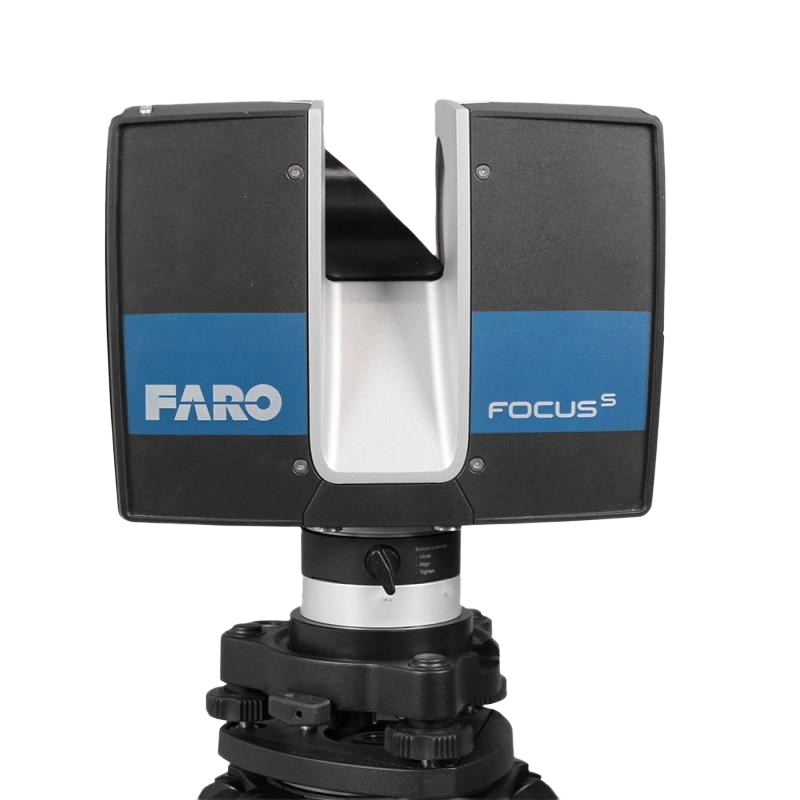

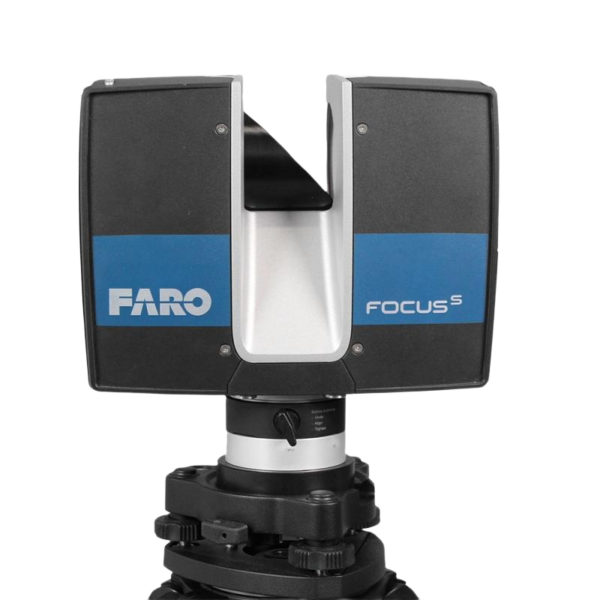

The Tribrach Adapter for FARO with ATS/FARO Quick Release provides a practical and efficient way to integrate FARO laser scanners equipped with ATS/FARO quick-release clamps into tripod-based surveying workflows. Designed for quick installation and removal, the adapter helps reduce setup time while ensuring reliable positioning in the field.

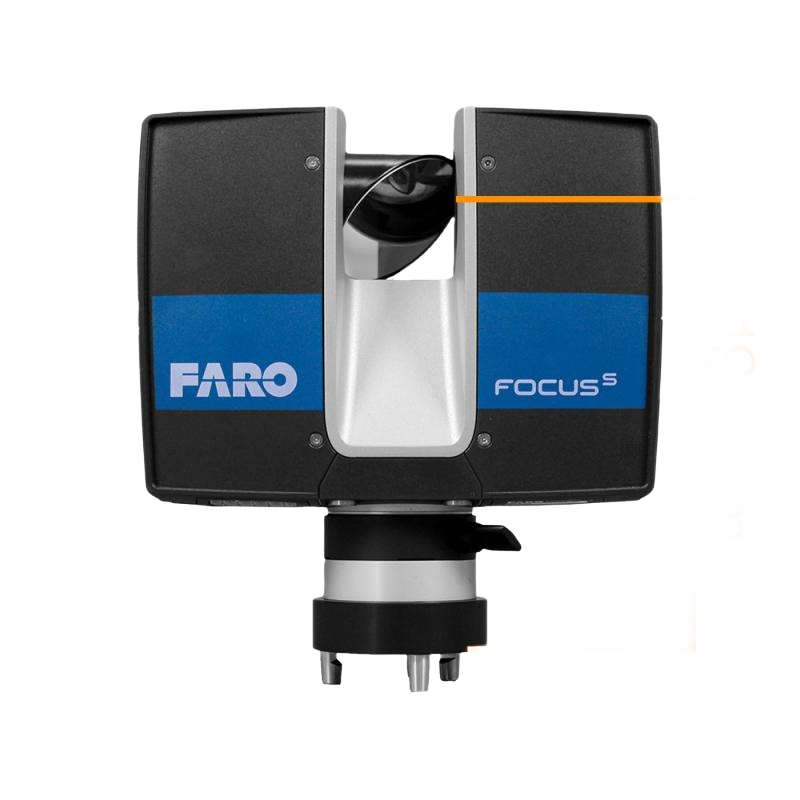

With a mirror axis height of 196 mm, matching the tilt axis height of many total stations, the adapter supports workflows that combine terrestrial laser scanning and traditional surveying methods.

Key Features

• Compatible with ATS/FARO quick-release systems.
• Enables fast mounting and removal of scanners on tripod systems.
• Designed for professional surveying and laser scanning applications.
• Mirror axis height of 196 mm for compatibility with many total stations.
• Stable and secure scanner positioning.
• Compact and durable design for field use.
• Ideal for workflows requiring frequent scanner relocation.

Applications

• Terrestrial laser scanning projects.
• Survey control and geospatial workflows.
• Construction and infrastructure documentation.
• Integration of laser scanning and total station measurements.
• Projects requiring rapid scanner setup and relocation.
• Professional surveying and reality capture operations.

Technical Highlights

• Dimensions: Ø 8 cm / 7 cm.
• Total height: 8 cm.
• Distance between the lower edge of the tribrach and the upper edge of the quick-release support: 40.5 mm.
• Designed for use with ATS/FARO quick-release clamps.
• Mirror axis height: 196 mm.
• Compatible with all FARO Focus scanners fitted with an ATS/FARO quick-release clamp.
• Supports secure attachment to tripod systems.
