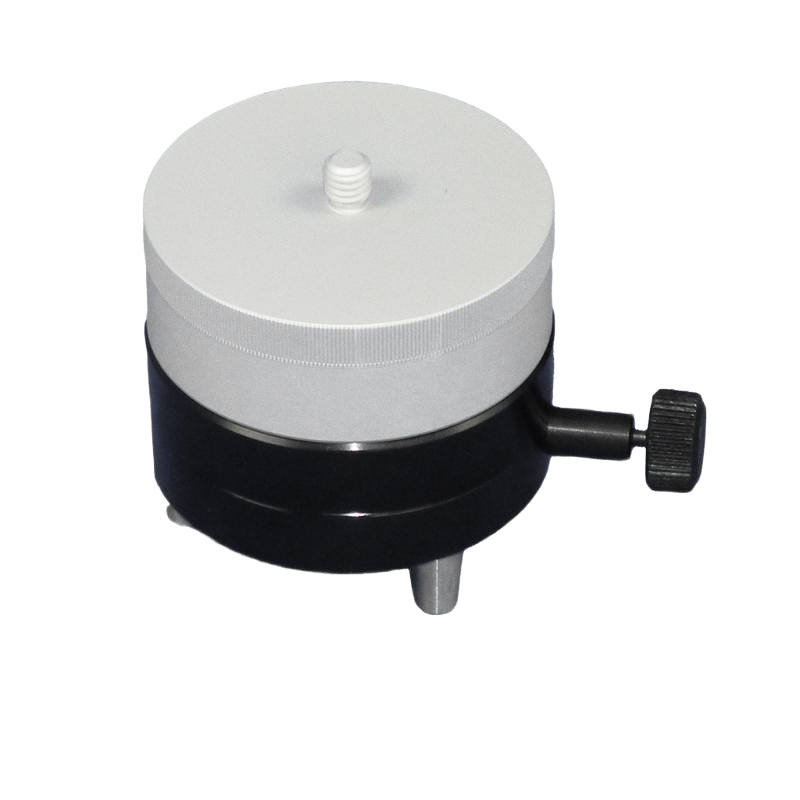

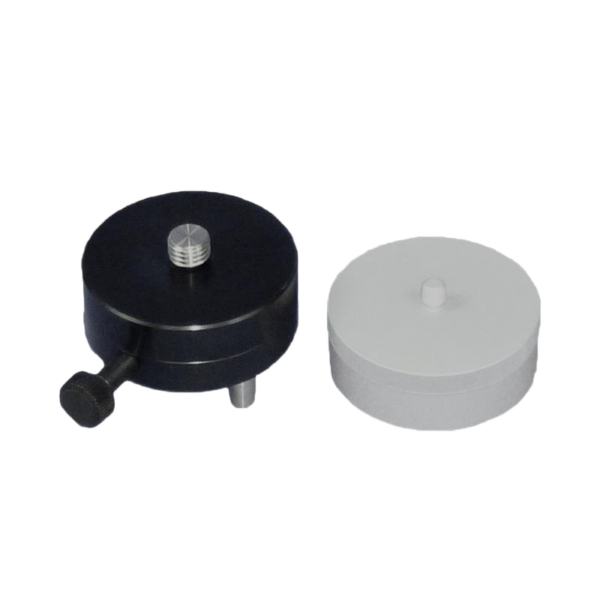

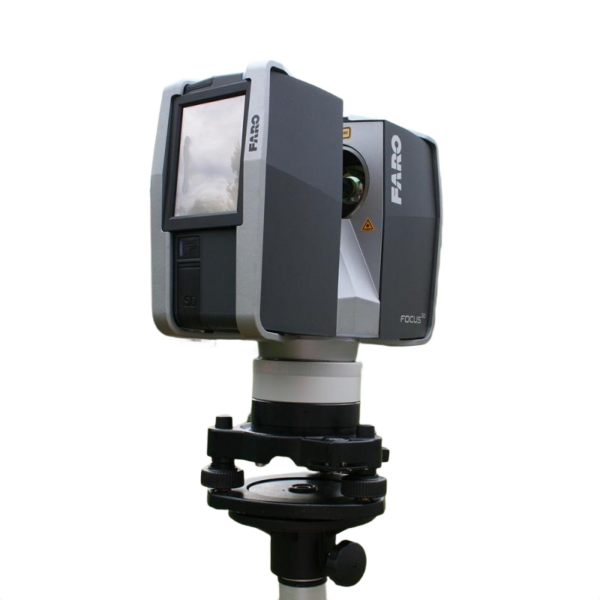

Rotatable tripod Adapters for FARO Focus (height of the mirror axis: 196mm (7.72 in)

Overview

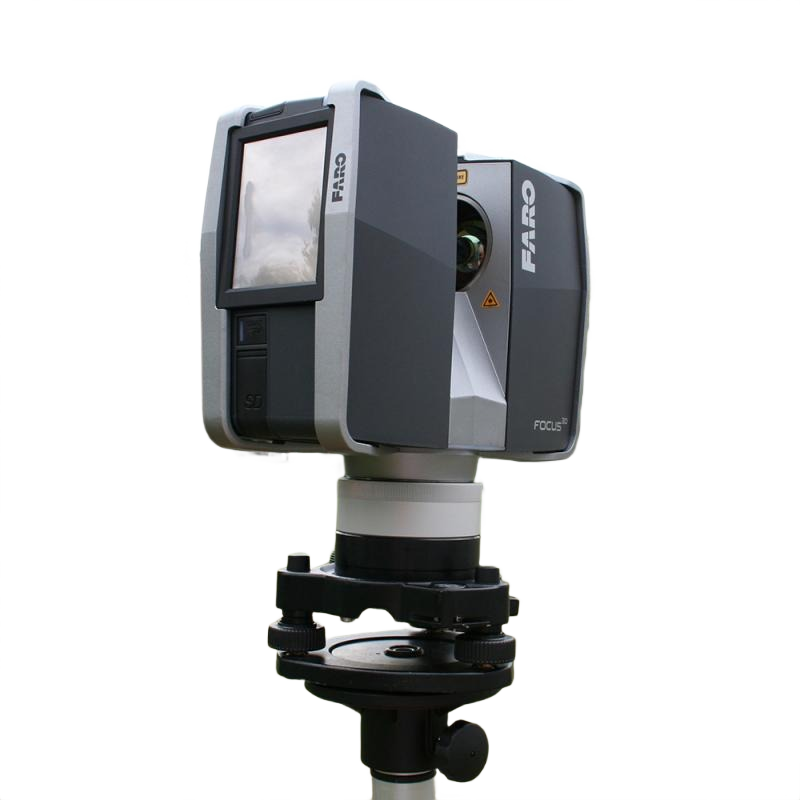

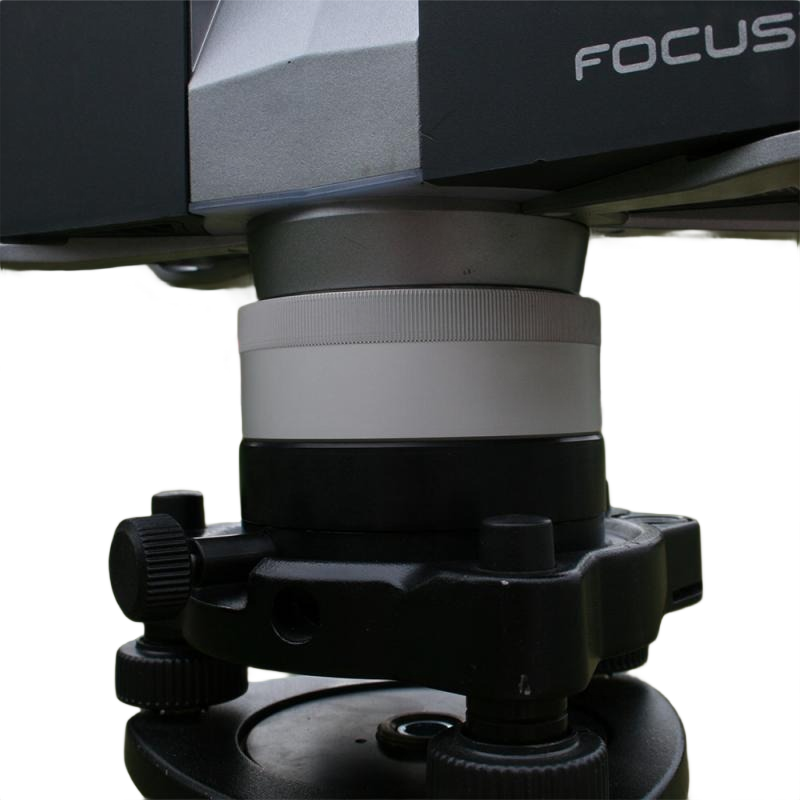

The Rotatable Tripod Adapter for FARO Focus provides a reliable solution for mounting FARO Focus laser scanners on tripods equipped with claw inserts. Designed specifically for surveying and geospatial applications, the adapter positions the scanner mirror rotation axis at a precise height of 196 mm (7.72 in), matching the tilt axis height of many total stations. This enables accurate forced-centering workflows and simplifies the integration of laser scanning and total station measurements.

Its rotatable construction allows users to conveniently select the scanner’s starting orientation before securing it with the integrated clamping screw.

Key Features

• Positions the scanner mirror rotation axis at 196 mm.
• Designed for FARO Focus laser scanners.
• Compatible with all standard claw inserts.
• Rotatable design with locking clamping screw.
• Supports accurate forced-centering workflows.
• Enables seamless integration with total station measurements.
• Durable construction for professional field use.
• Allows fast scanner installation and removal.

Applications

• Survey control and geodetic measurements.
• Forced-centering workflows.
• Registration of scan projects using known ground control points.
• Integration of terrestrial laser scanning and total station data.
• Construction and infrastructure surveying.
• Engineering and monitoring projects.

Technical Highlights

• Compatible with all claw inserts.
• Diameter: 80 mm.
• Height: 61 mm.
• Connection: 3/8-inch male thread.
• Thread length: 10 mm.
• Rotatable adapter with clamping screw.
• Positions the FARO Focus scanner mirror axis at exactly 196 mm when mounted.
• Designed for accurate positioning over marked ground points.
