Tripod for Horizontal Scanning
Price Available Upon Request
The Tripod for Horizontal Scanning is designed for secure laser scanning of facades, windows, roofscapes, parapets, and hard-to-reach areas. Its horizontal arm allows scanners to be positioned outside openings while remaining safely operated from inside the building, making it ideal for facade documentation, bridge inspection, and elevator shaft scanning.
Overview

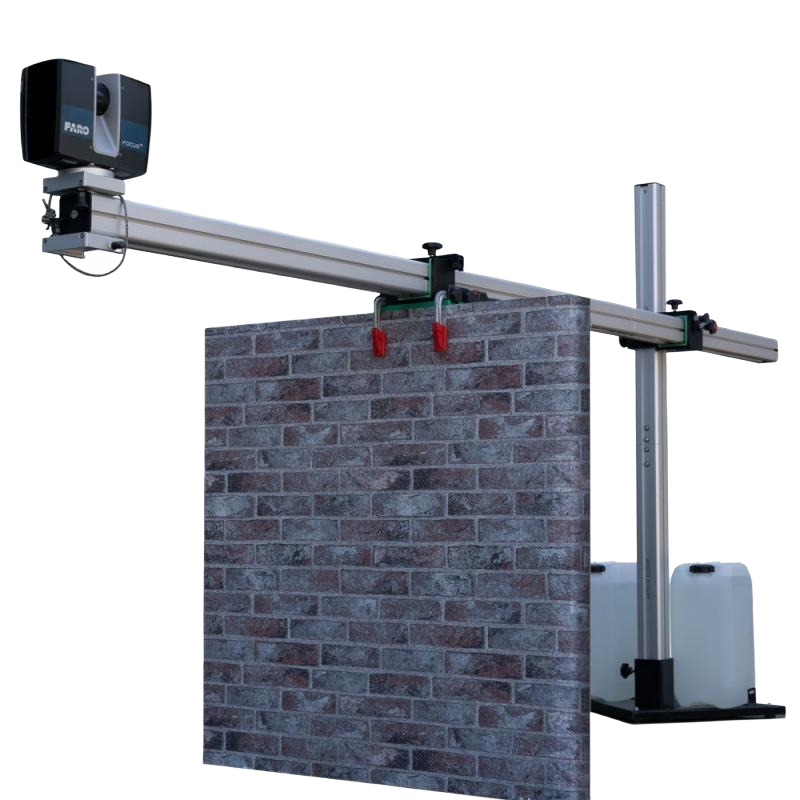

The Tripod for Horizontal Scanning extends the reach of laser scanning systems by allowing scanners to be safely positioned outside windows, dormers, and other building openings. This enables efficient capture of facades, roof structures, parapets, and other areas that are difficult to document using a conventional tripod setup.

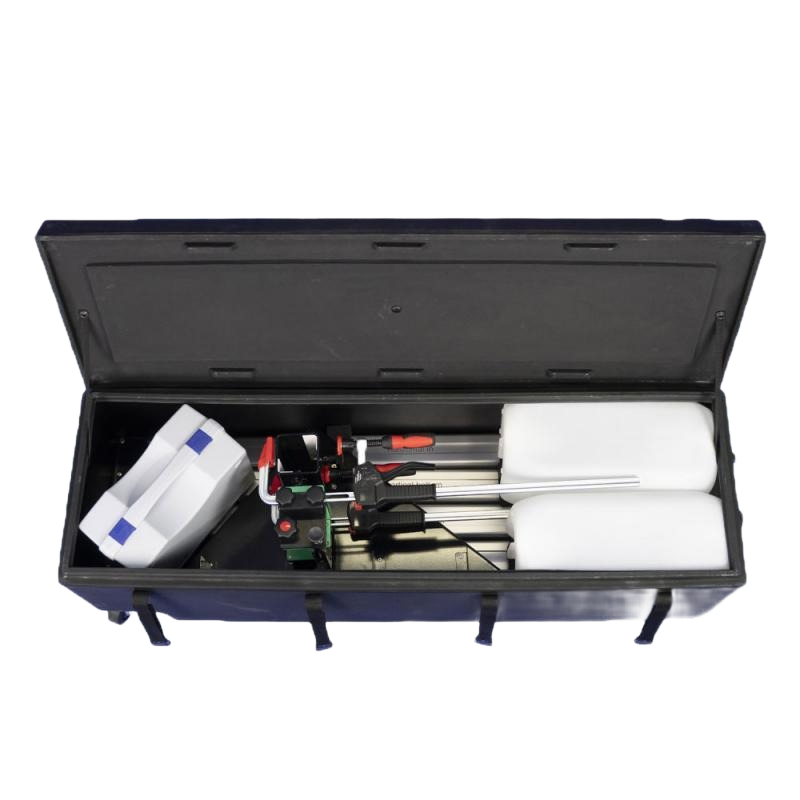

The horizontal arm features dedicated mounting positions for both standard and overhead scanning, allowing upper and lower areas to be captured while maintaining stability and minimizing vibrations. The tripod is supplied in a transport box and can be separated into individual components for easier transportation when required.
Key Features
- Designed for facade and exterior scanning
- Suitable for scanning through windows and dormers
- Supports standard and overhead scanning
- Two adapter positions on the horizontal arm
- High-stability construction to minimize vibrations
- Aluminium and steel construction

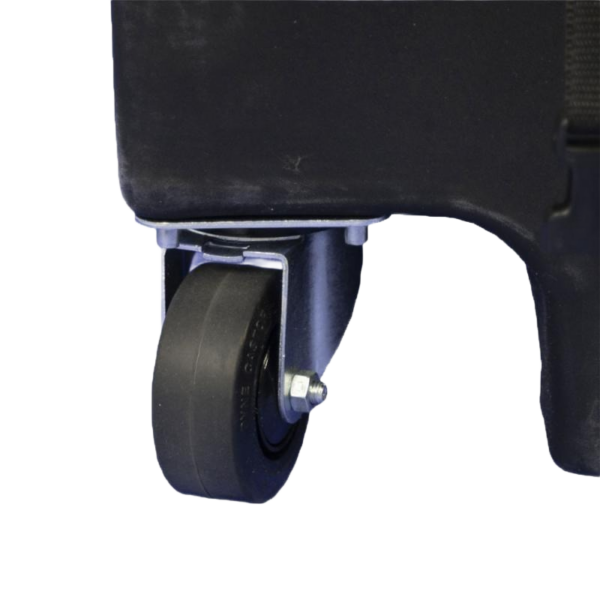

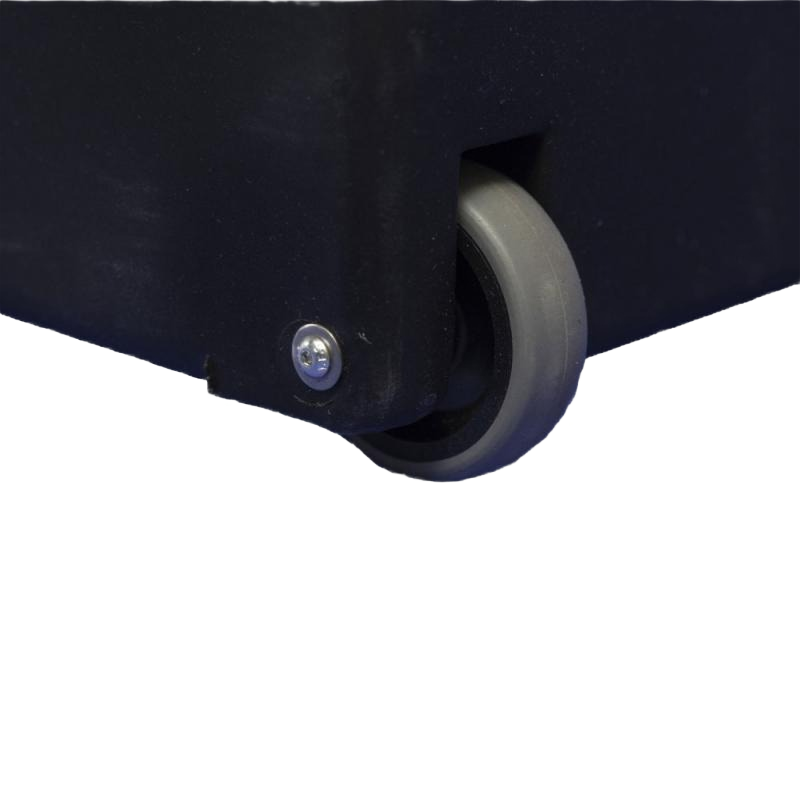

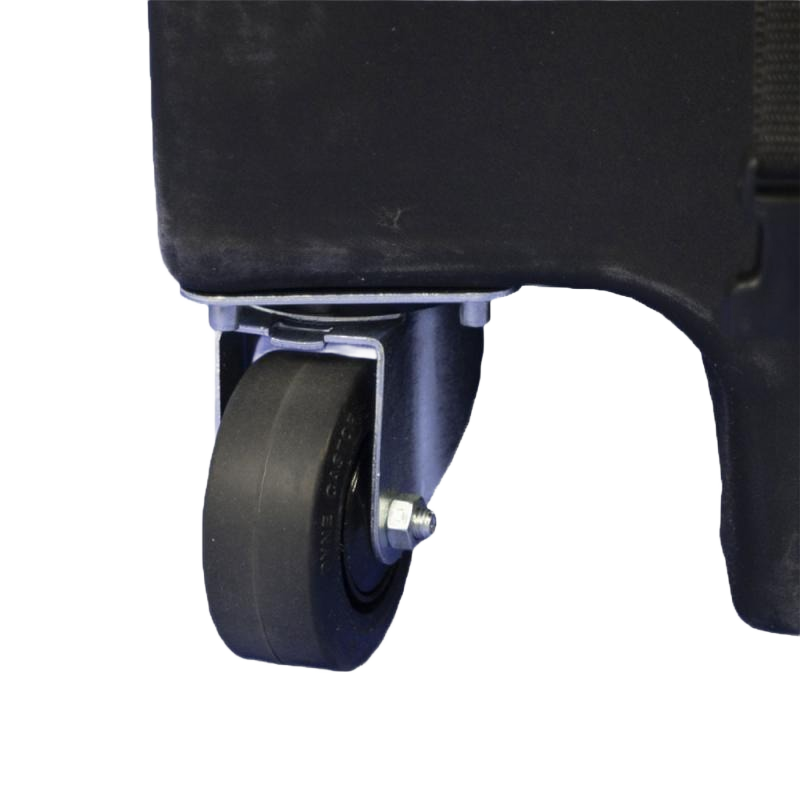

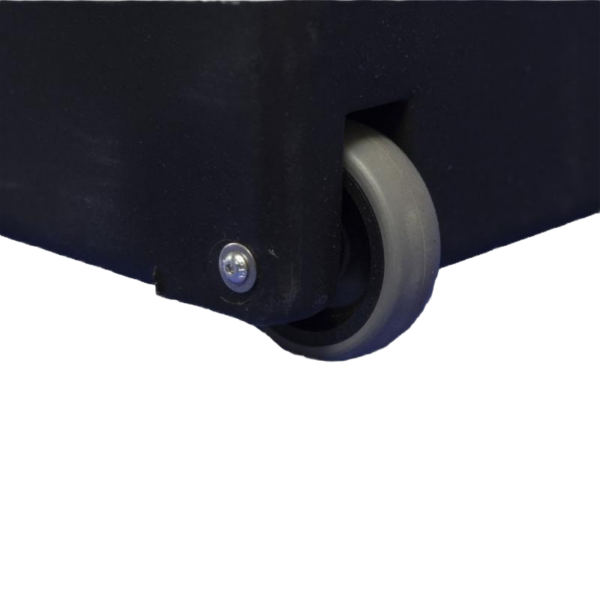

- Supplied with transport box

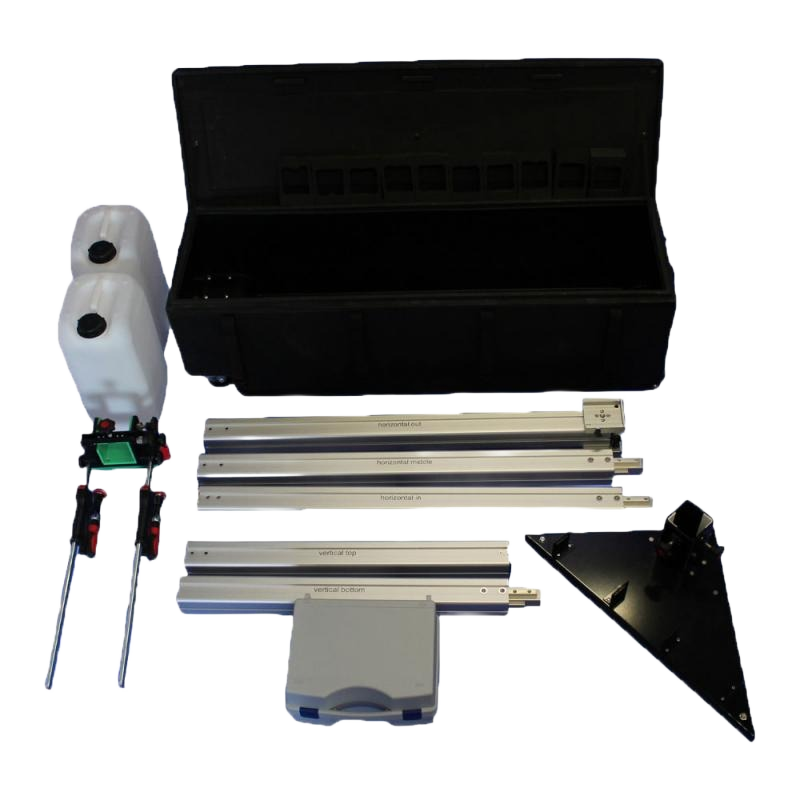

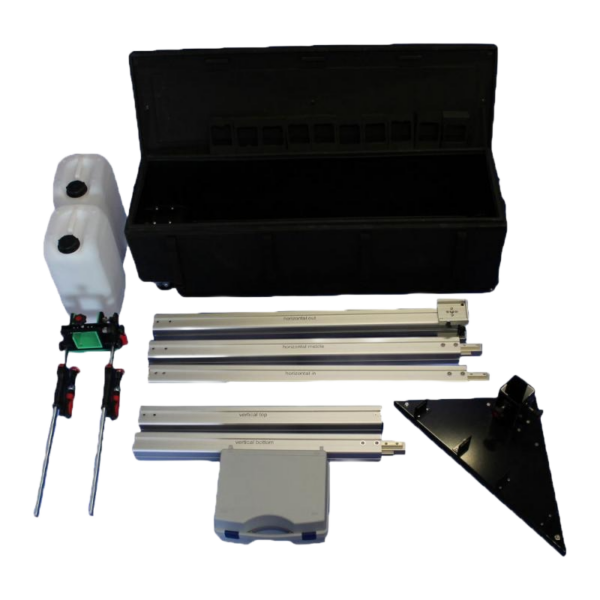

- Modular design for easier transportation
Technical Specifications
- Material: Aluminium and steel
- Maximum Distance from Scanner to Facade: 260 cm
- Maximum Useful Height: 157 cm
- Minimum Useful Height: 18 cm
- Maximum Window/Parapet Width: 22 cm
- Tripod Weight: Approx. 37 kg
- Transport Box Dimensions: 135 × 42 × 44 cm
- Transport Box Weight (Including Tripod): Approx. 50 kg
Applications
- Facade scanning
- Window scanning
- Roofscape documentation
- Dormer inspection
- Scanning behind parapets
- Elevator shaft inspection
- Bridge inspection
| Weight | 49 kg |
|---|---|
| Dimensions | 140 × 44 × 100 cm |
| Compatibility | FARO Focus S/M/Core/Premium, FARO Focus3D X, Leica RTC360, Trimble, Z+F IMAGER 5016 |
