Round checkerboard target 4.5″ with magnetic connection

Overview

The Round Checkerboard Target 4.5″ with Magnetic Connection is designed for laser scanning applications requiring compact and easily deployable reference targets. The target features a torsionally rigid, weather-resistant construction with an absolutely flat measurement surface to support reliable target detection.

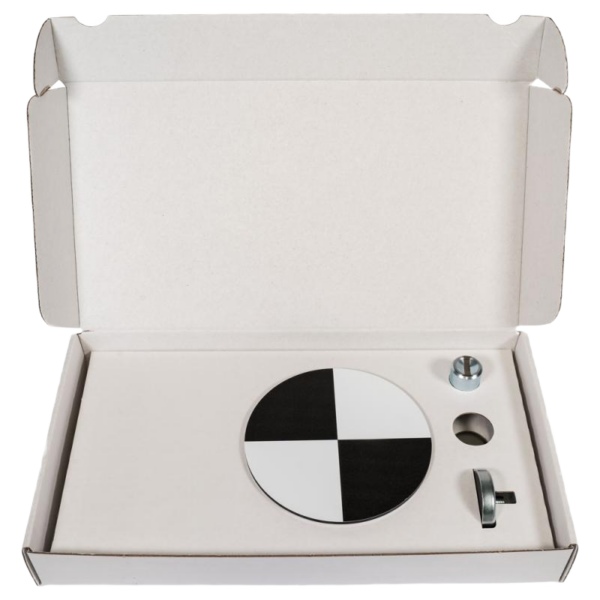

Its semi-circular magnetic system allows the target to be rotated and aligned while keeping the target center unchanged. The target is supplied with an M8 connector and magnetic mount as standard, enabling fast installation on magnetic surfaces and flexible deployment in the field.

Product Features

• Round checkerboard target design.

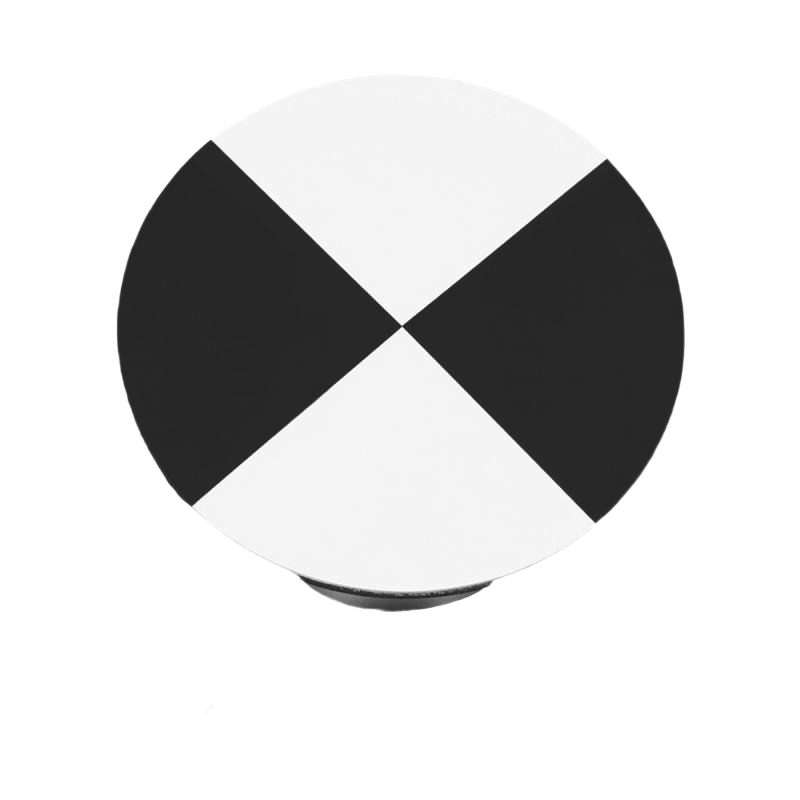

• Plate size: Ø 4.5″.
• Torsionally rigid, lightweight construction.
• Weather-resistant.
• Absolutely flat surface for measurement applications.

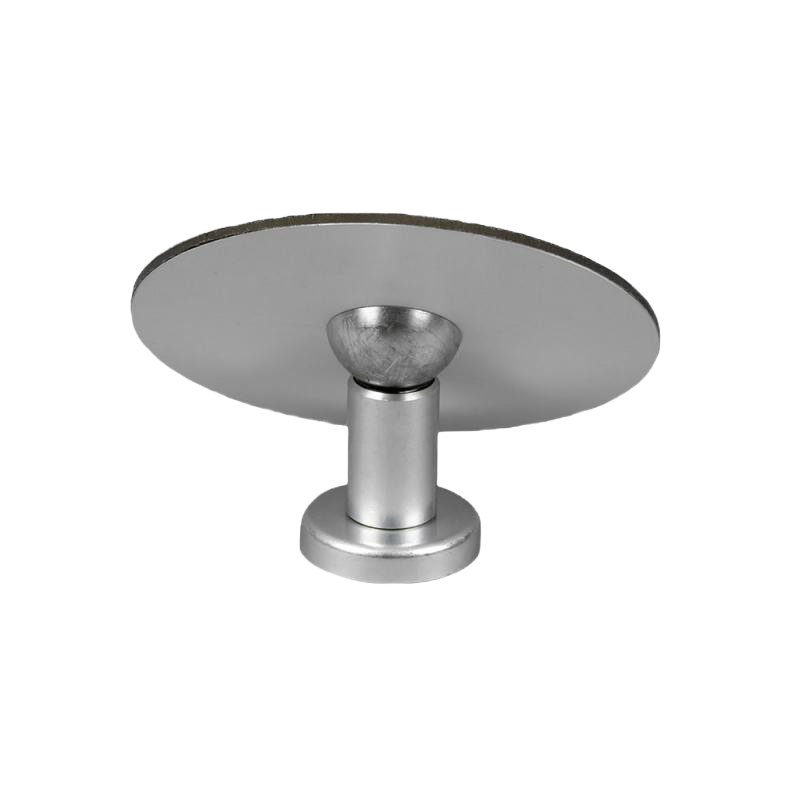

• Semi-circular magnetic system on the rear side.

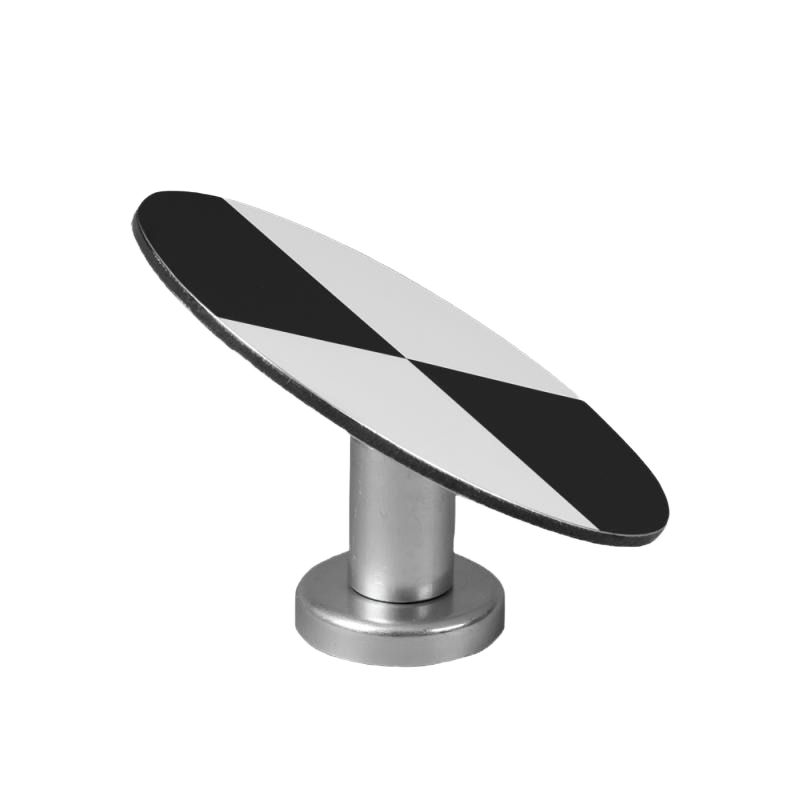

• Target can be rotated while maintaining the same center point.
• Supplied with M8 connection and magnet.

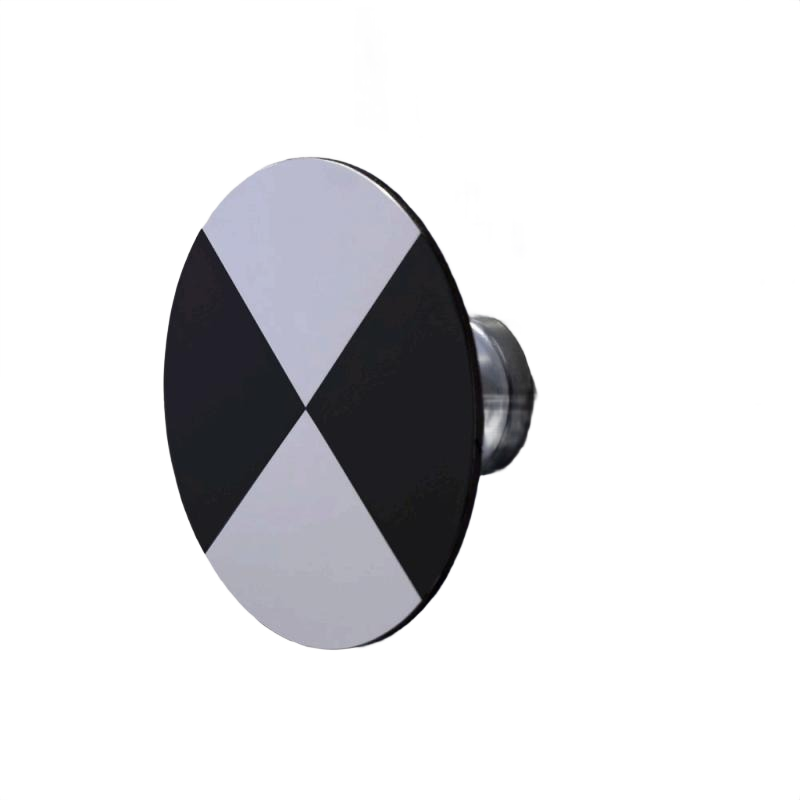

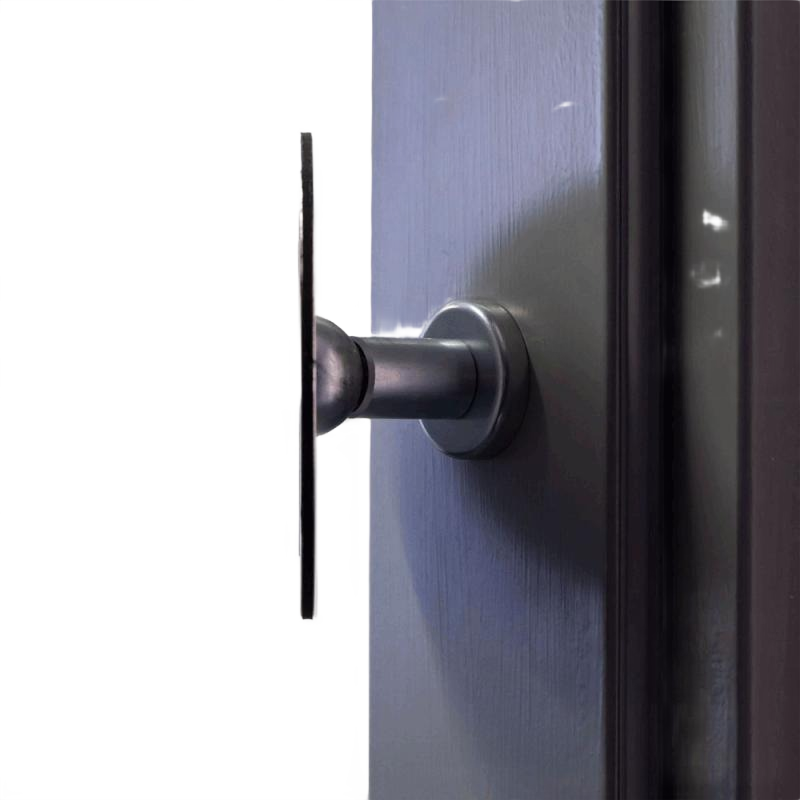

• Easy attachment to magnetic surfaces using the centered magnetic mount.
• Compatible with multiple laser scanner platforms.
• Recognized by several point cloud processing software packages.

Technical Specifications

• Plate size: Ø 4.5″
• Dimensions: 11.43 × 11.43 × 5.5 cm
• Weight: Approx. 208 g
• Standard connection: M8 connector with magnet

Additional Information

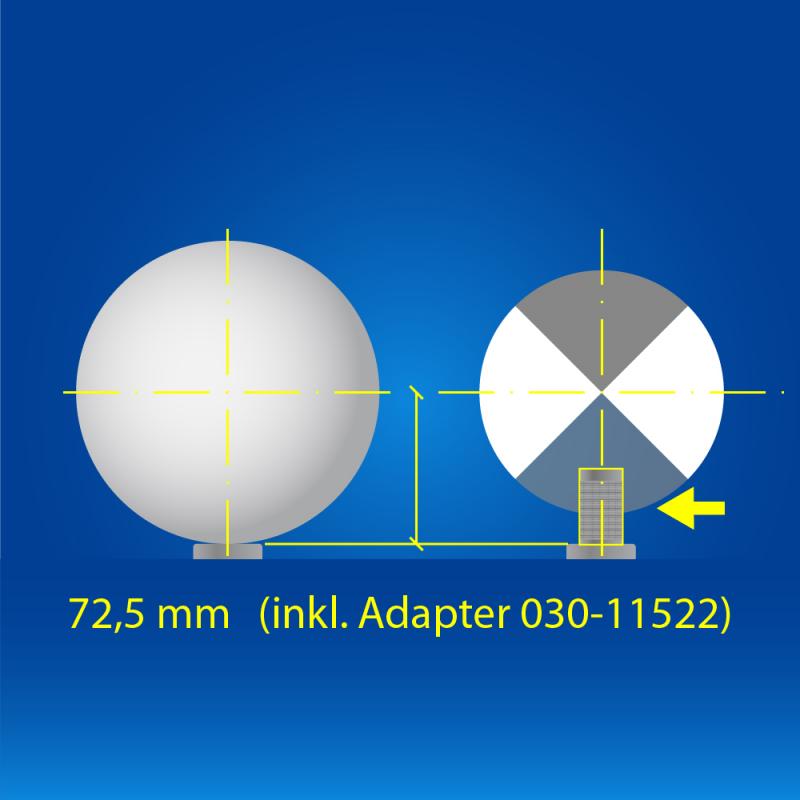

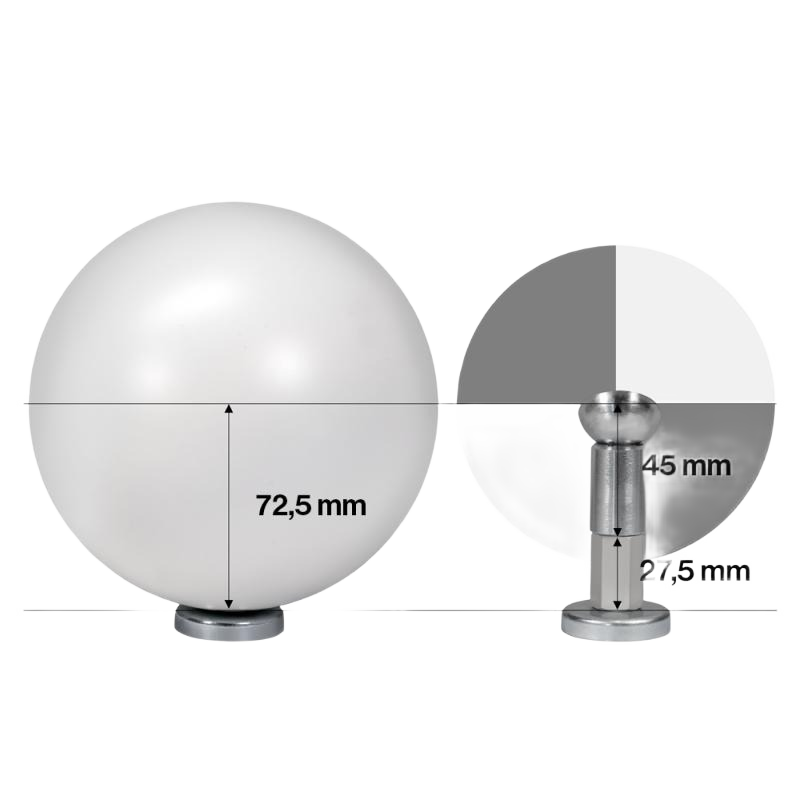

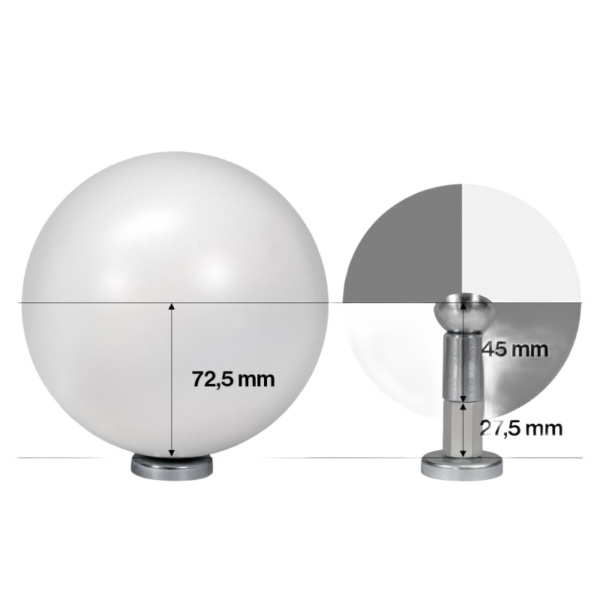

• When used with the spacer adapter and standard magnet, the center of the target plate corresponds exactly to the center of 145 mm reference spheres.

Software Compatibility

The target is recognized by:

• FARO Scene
• Cyclone
• Register 360
• PointCab

Laser Scanner Compatibility

• FARO Focus Premium
• FARO Focus Core
• FARO Focus S Series
• FARO Focus M Series
• FARO Focus3D X Series
• Leica RTC360
• Leica ScanStation P-Series
• Leica BLK360

Purpose of Use

• Reference target visible up to at least 25 m*.
• Flexible setup using tripods, prism poles, or magnetic mounting surfaces.
• Suitable for laser scanning registration workflows.

* Visibility information is based on the specifications provided by the manufacturer.

Areas of Application

• Architecture, construction and historic preservation.
• Digital factory and plant engineering.
• Mining and tunneling.
• Energy and utility companies.
• Aircraft and shipbuilding.
• Forensic investigations.

Notice

• Due to the low magnetic field strength, the magnets are not classified as dangerous goods for air freight when properly packaged.

Safety Instructions

• Users with pacemakers should maintain a minimum distance of 20 cm from magnets.
• Avoid use in explosion-protected environments where sparks could present a risk.
• Keep away from magnetic storage media.
• Magnets may attract ferrous objects and create pinch hazards.
• Dispose of components in accordance with applicable local and international regulations.
• Contact with the nickel coating may cause allergic reactions in sensitive individuals.
