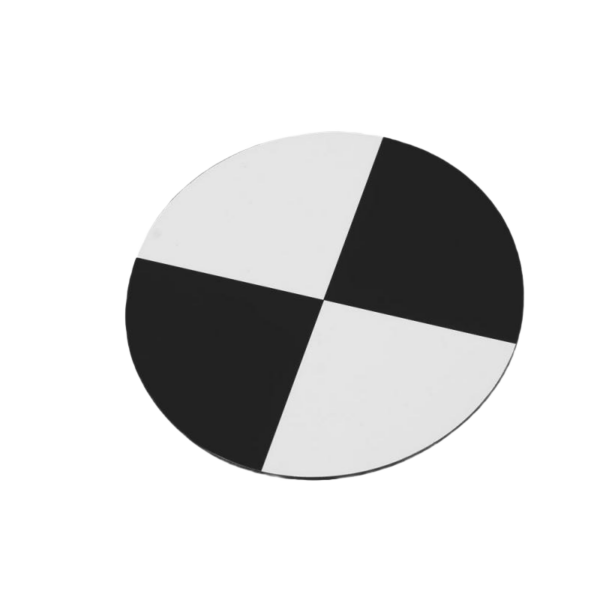

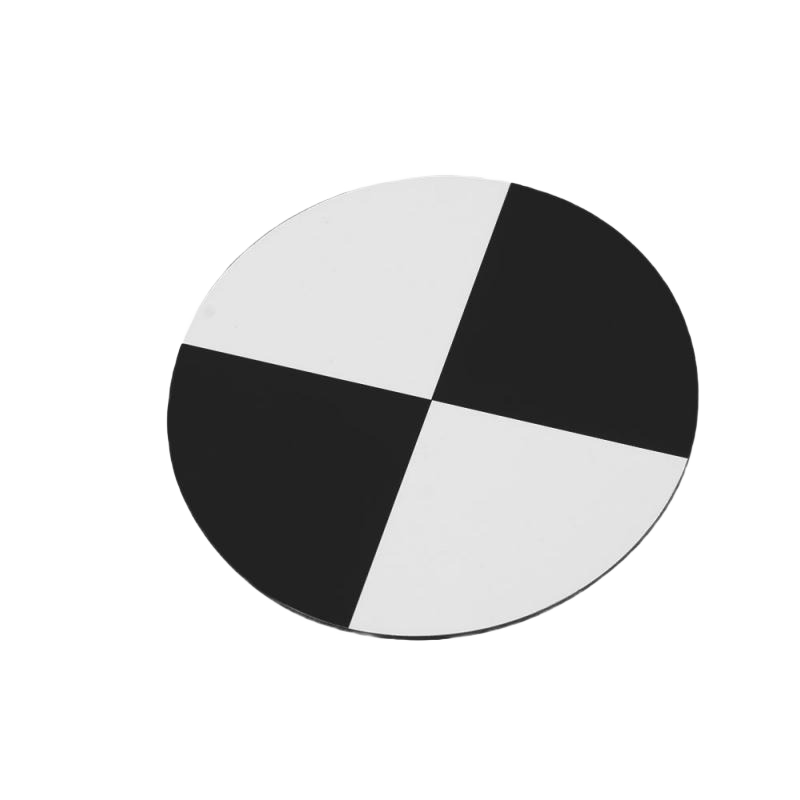

Round checkerboard target 6″ with magnetic connection
Price Available Upon Request
The Round Checkerboard Target 6″ with Magnetic Connection is designed for laser scanning projects that require a larger target size for improved visibility at longer distances. Featuring an integrated magnetic mounting system and standard M8 connection, the target can be quickly attached to magnetic surfaces or compatible laser scanning accessories. Its weather-resistant construction and flat target surface make it suitable for both indoor and outdoor surveying applications.
Overview
The Round Checkerboard Target 6″ with Magnetic Connection provides a larger target surface for laser scanning projects where reference targets need to remain visible over greater distances. Designed with the characteristic LSE magnetic connection system, the target is compatible with a wide range of laser scanning accessories while also allowing direct mounting on metallic surfaces.
The target combines a lightweight yet torsionally rigid construction with a weather-resistant finish and a semi-circular magnetic system that allows rotation and alignment while maintaining a constant target center point.
Product Features
- Round checkerboard target with 6-inch diameter.
- Torsionally rigid and lightweight construction.
- Weather-resistant design.
- Absolutely flat target surface for reliable measurement results.

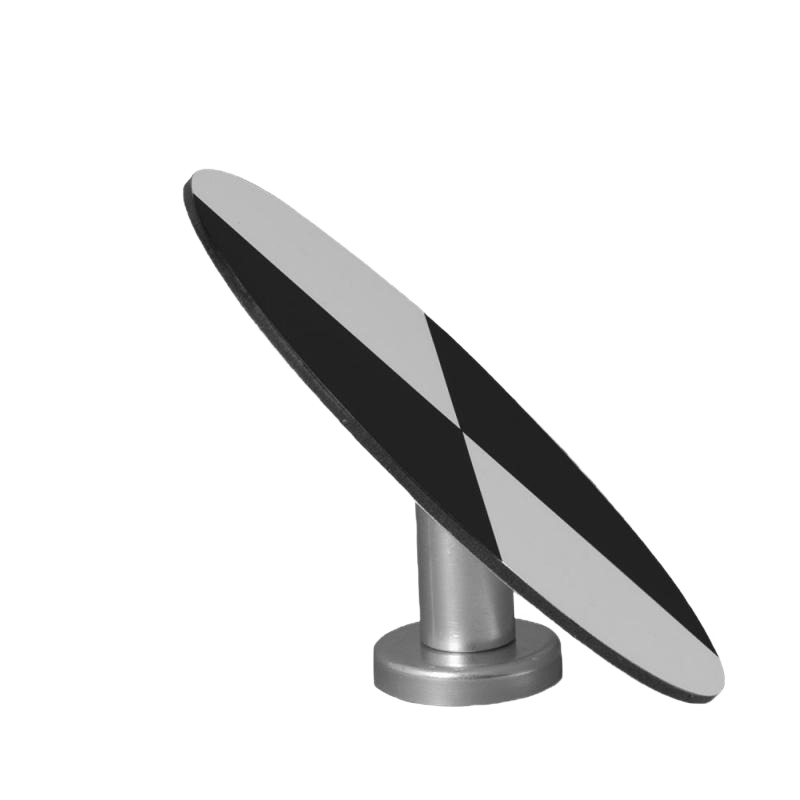

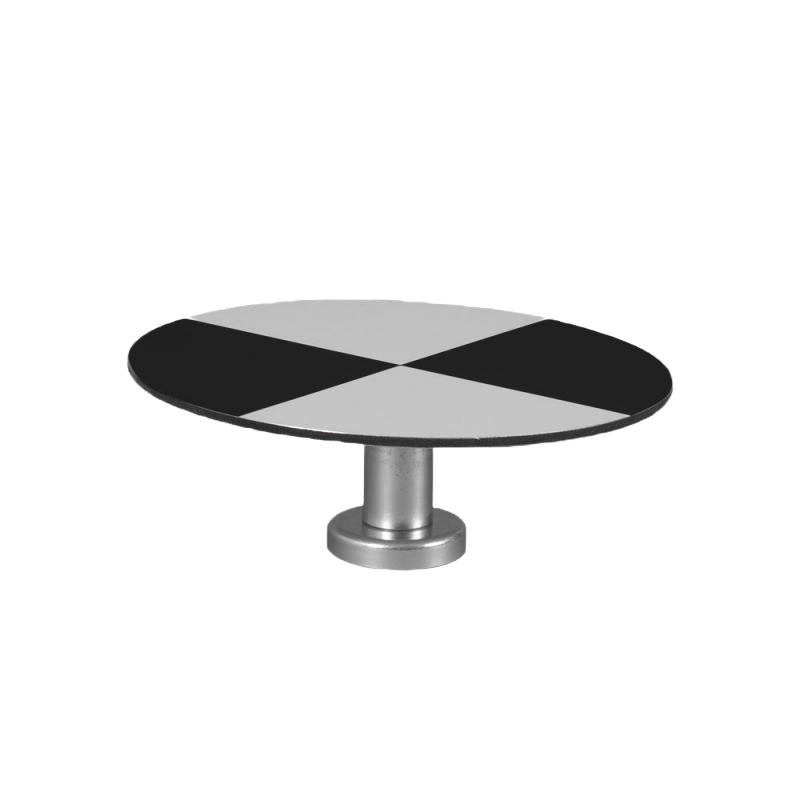

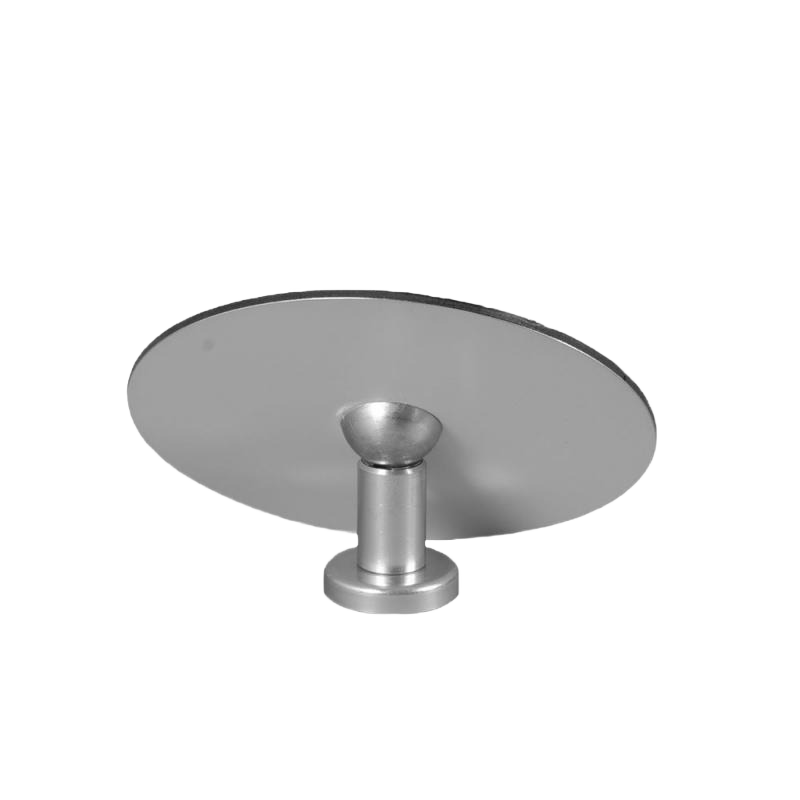

- Semi-circular magnetic system for alignment and positioning.

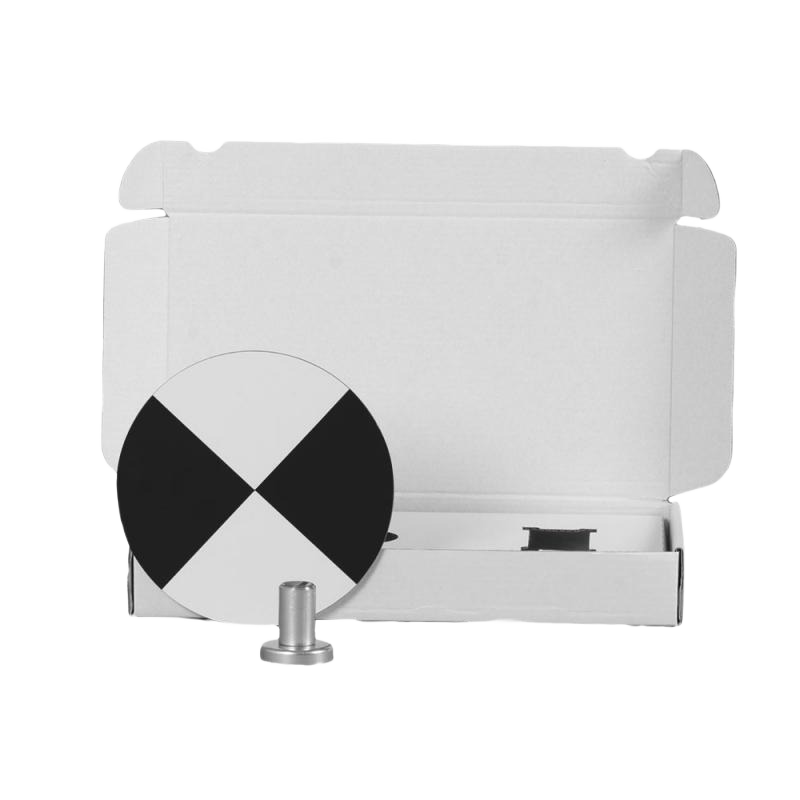

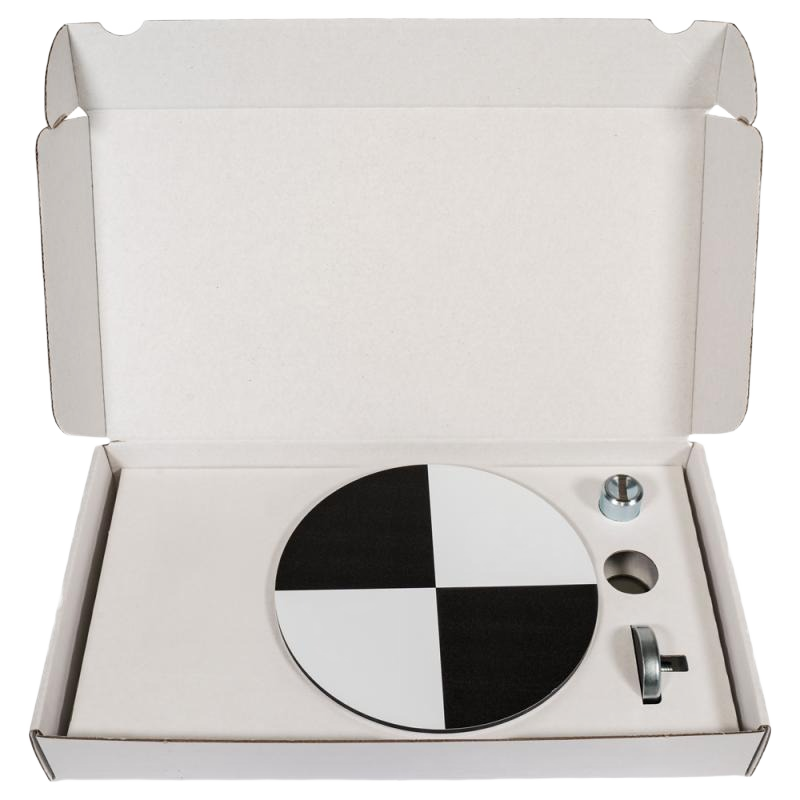

- Standard M8 connector with magnetic mount included.

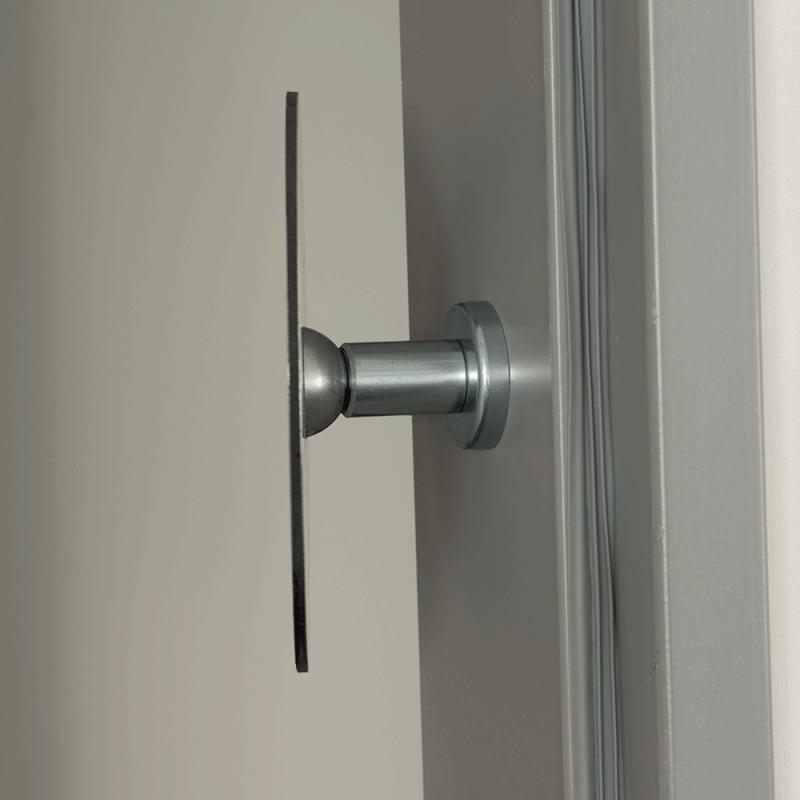

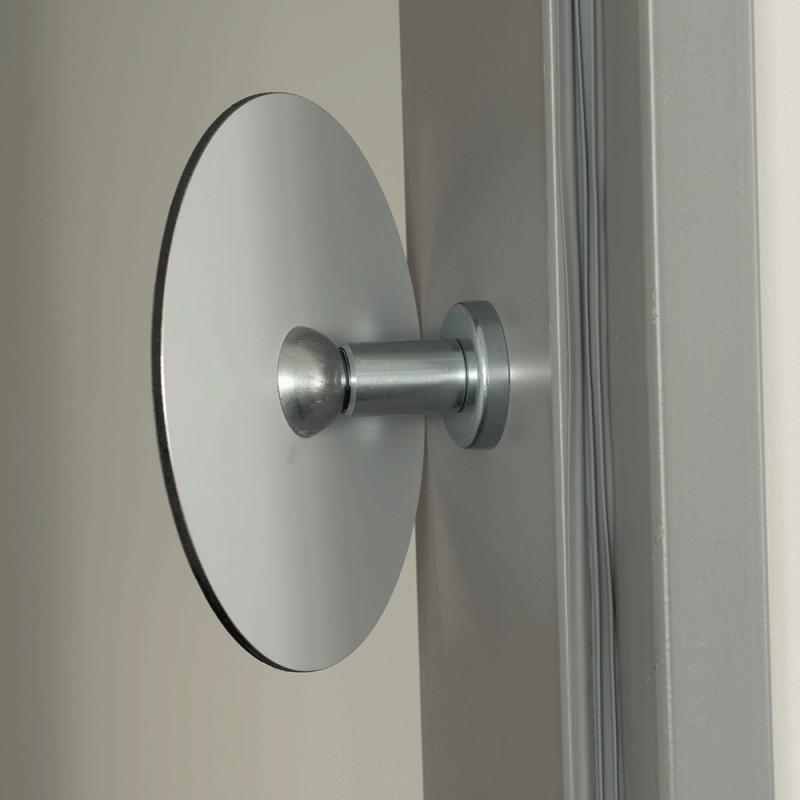

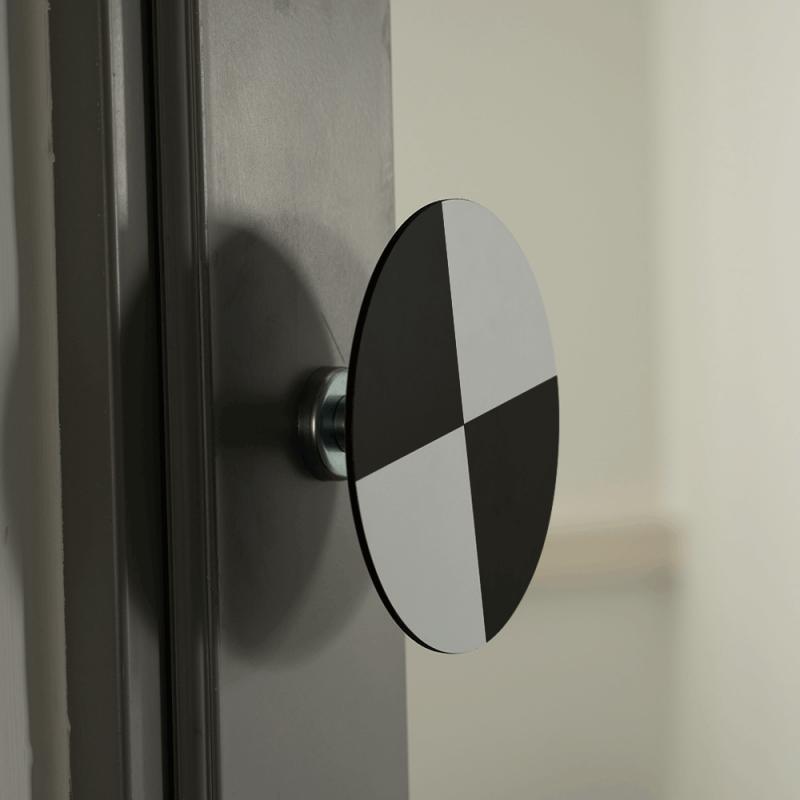

- Fast attachment to magnetic surfaces.
- Compatible with laser scanning accessories using the LSE magnetic system.
- Recognized by major laser scanning software solutions.
Technical Highlights
- Plate size: Ø 6″
- Dimensions: 15.2 × 15.2 × 5.5 cm
- Weight: Approx. 234 g
- Standard connection: M8 connector with magnet
Additional Information

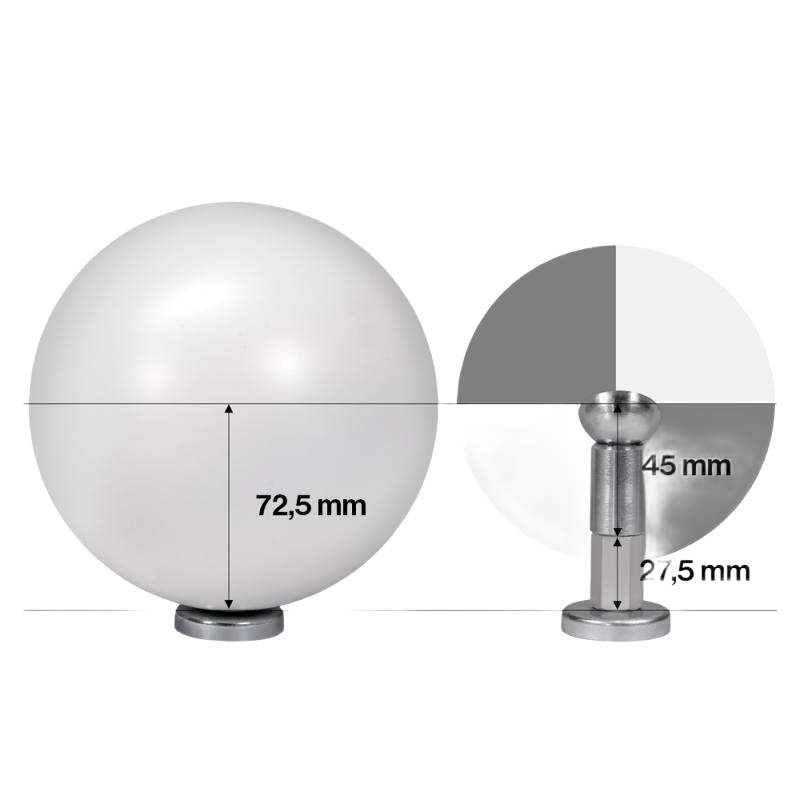

- When used with the spacer adapter and standard magnet, the center of the target plate corresponds exactly to the center of 145 mm reference spheres.
Software Compatibility
Recognized by:
- FARO Scene
- Cyclone
- Register 360
- PointCab
Laser Scanner Compatibility
- FARO Focus Premium
- FARO Focus Core
- FARO Focus S Series
- FARO Focus M Series
- FARO Focus3D X Series
- Leica RTC360
- Leica ScanStation P-Series
- Leica BLK360
Purpose of Use
- Reference target visible up to at least 30 m*.
- Flexible setup using tripods, prism poles, and magnetic mounting surfaces.
- Suitable for laser scanning registration workflows and control point applications.
* Visibility information is based on the specifications provided by the manufacturer.
Applications
- Architecture, construction and historic preservation.
- Digital factory and plant engineering.
- Mining and tunneling.
- Energy and utility companies.
- Aircraft and shipbuilding.
- Forensic investigations.
Notice
- Due to the low magnetic field strength, the magnets are not classified as dangerous goods for air freight when properly packaged.
Safety Instructions
- Users with pacemakers should maintain a minimum distance of 20 cm from magnets.
- Avoid use in explosion-protected environments where sparks may create hazards.
- Keep away from magnetic storage media.
- Magnets can attract metallic objects and create pinch hazards.
- Dispose of components according to applicable local and international regulations.
- Nickel-coated components may cause allergic reactions in sensitive individuals.
| Weight | 0.38 kg |
|---|---|
| Dimensions | 16 × 4.5 × 31 cm |
