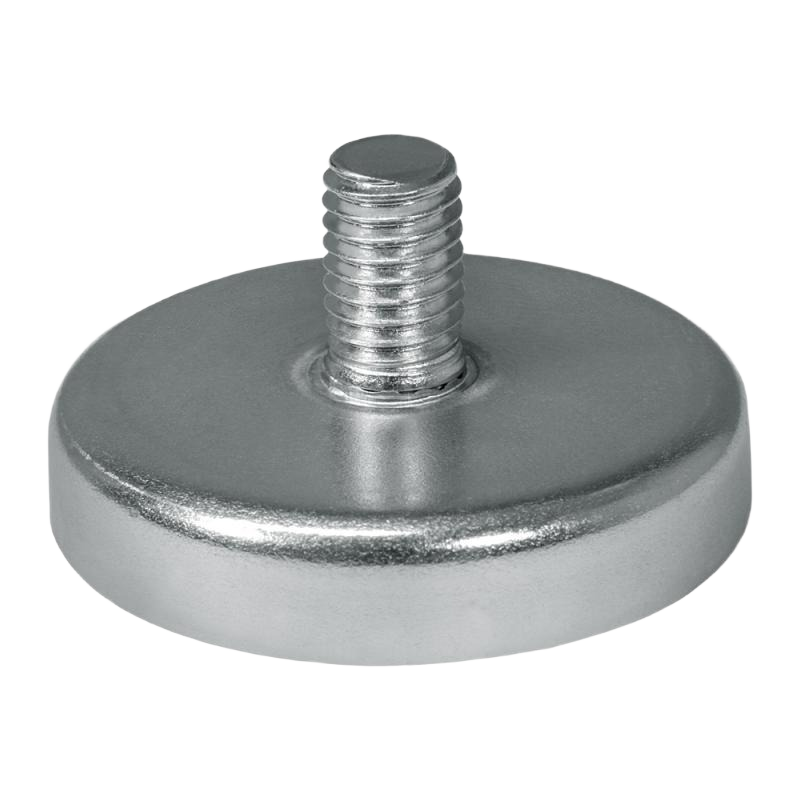

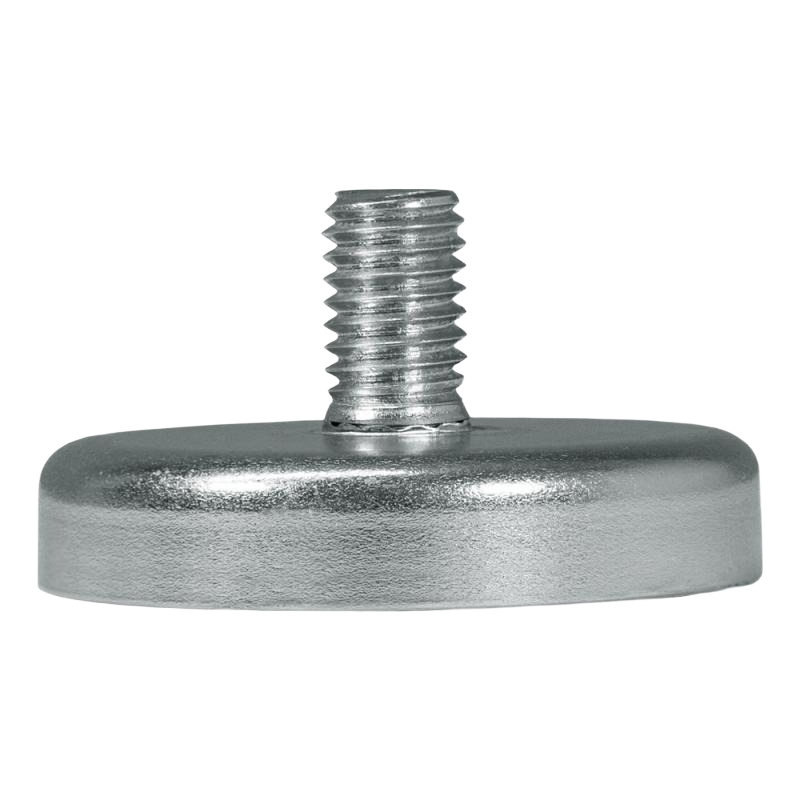

Standard magnet bolt for reference sphere; M8 thread; length 12mm

Product Features

• Adhesive force: 125 N (equivalent to approximately 13 kg)
• Diameter: 40 mm
• Magnet height: 8 mm
• Connection: M8 external thread
• Thread length: 12 mm
• Overall height: 20 mm
• Weight: approx. 83.0 g
• Nickel-plated surface
• Maximum operating temperature: 80°C
• Magnetization direction: North pole on the adhesive surface

Transport Information

Due to the low magnetic field strength, the magnets are not classified as dangerous goods for air freight when packaged correctly.

Safety Instructions

• Patients with pacemakers should maintain a minimum distance of 20 cm from the magnet, as temporary pacemaker malfunctions may occur.
• The use of magnets or magnetic systems in explosion-proof areas can be problematic. If magnets fall and shatter, sparks may be generated.
• Do not store or place magnets near magnetic storage media.
• Magnets can attract iron objects. Improper handling may result in crushing injuries.
• Dispose of the product in accordance with Directives 91/689/EEC and 94/62EU, as well as applicable local, regional, and national regulations.
• Contact with the nickel coating may cause allergic reactions in individuals with hypersensitivity.
