Z+F IMAGER® 5024 3D Laser Scanner
Price Available Upon Request
The Z+F IMAGER® 5024 is a 3D laser scanner series designed for surveying projects, offering maximum flexibility, stability, and high quality for close-range and mid-range applications. The series includes Essential, Advanced, and Supreme models with different performance levels, data rates, ranges, interfaces, and storage capacities.
0
People watching this product now!
Description
Overview
The Z+F IMAGER® 5024 is a 3D laser scanner series designed for surveying projects. The series offers maximum flexibility, stability, and high quality, with models suitable for close-range and mid-range applications. Depending on the selected model, measuring ranges extend from 80 m up to 365 m.
The product family consists of three models:

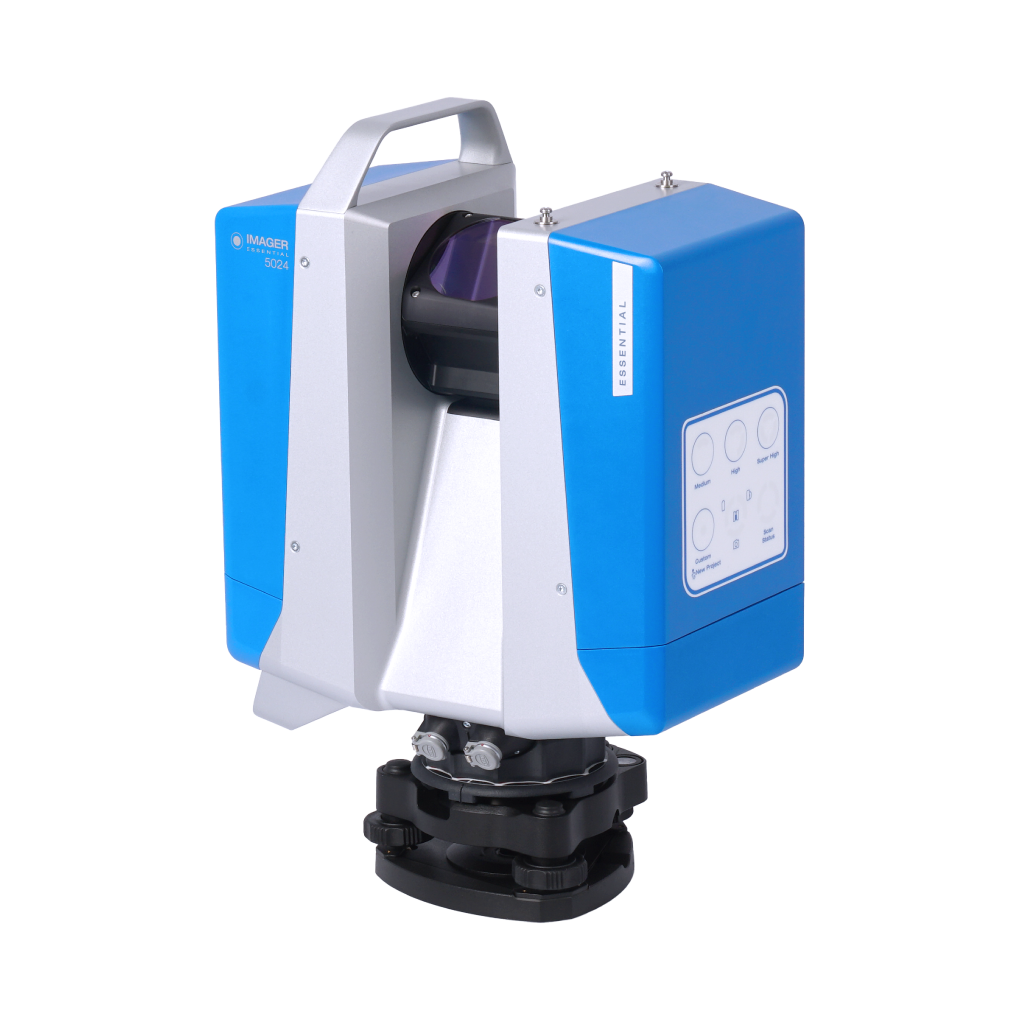

- Z+F IMAGER® 5024 Essential
- Z+F IMAGER® 5024 Advanced
- Z+F IMAGER® 5024 Supreme
Key Features
- Designed for surveying projects
- Close-range and mid-range applications
- Maximum flexibility, stability, and high quality
- Multiple resolution levels and quality modes (model dependent)
- Storage capacities up to 256 GB
- IMU Levelling
- Support for Z+F TopCam
- Support for Z+F T-Cam
Product Comparison
| Feature | Essential | Advanced | Supreme |
|---|---|---|---|
| Data Rate | 1.1 MHz | 2.2 MHz | 2.2 MHz |
| Range | 80 m | 150 m | 365 m / 220 m (2.2 MHz) |
| I-Cam & LEDs | — | — | ✓ |
| Z+F TopCam Support | ✓ | ✓ | ✓ |
| Z+F T-Cam Support | ✓ | ✓ | ✓ |
| High-Resolution Scan Time | 91 sec | 52 sec | 52 sec |
| Parallax Free | — | — | ✓ (I-Cam) |
| Resolution Levels | 4 (L/M/H/SH) | 4 (L/M/H/SH) | 6 (L/M/H/SH/UH/EH) |
| Quality Levels | 2 | 3 | 5 |
| Interface | Control Panel | Control Panel | Touchscreen Display |
| Storage | 128 GB | 128 GB | 256 GB |
| Blue Workflow | — | ✓ | ✓ |
| IMU Levelling | ✓ | ✓ | ✓ |
| Dynamic Compensator | — | — | ✓ |
| Laser Plummet | — | — | Optional |
| Batteries Included | 2 | 4 | 4 |
Additional information
| Choose Variant | Advanced, Essential, Supreme |
|---|
