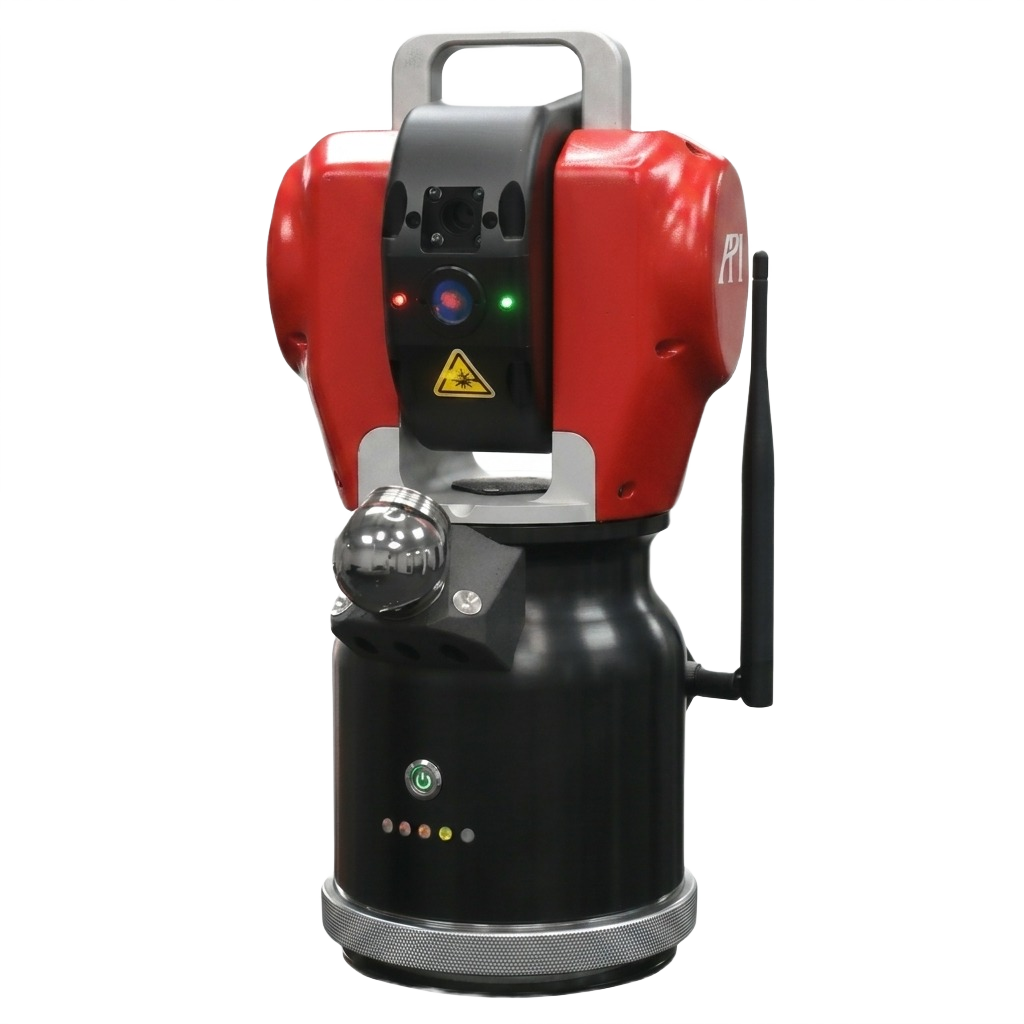

API iLT Laser Tracker
Price Available Upon Request
The API iLT Laser Tracker series provides portable, wireless precision coordinate measurement with an integrated controller, 1,000hz sample output, and measurement ranges from 25m to 80m, depending on configuration. Available as iLT and iLT X, both models weigh 4.9 kg and support up to 8 hours of battery operation, while the iLT X adds hand-held probing, laser scanning, and 6DOF Active Target capability.
API iLT Laser Tracker
The API iLT Laser Tracker is a compact, portable 3D measurement system designed for precision measurement across large distances. Using laser measurement technology, the iLT series supports accurate coordinate measurement for applications including alignment, calibration, part inspection, tooling inspection, reverse engineering, robotics, and adaptive control.
Available as iLT and iLT X, the series provides measurement ranges from 25m to 80m, depending on the selected model, with wireless operation, an integrated controller, and battery-powered portability.
Portable Measurement with Integrated Operation
Designed for flexible measurement in production and inspection environments, the iLT series combines a 4.9 kg tracker body with cableless operation and onboard functionality.
Key features include:
- Wireless operation for reduced setup requirements
- Integrated controller for cableless measurement
- 1,000hz sample output
- SMR measurement
- Up to 8 hours battery operation
- Autolock Function that automatically re-establishes beam interruptions in a 30° field of view
- Dual Virtual Level for establishing a gravity coordinate frame
- Onboard weather station for compensation of temperature, pressure and humidity
- IEC 60529 certified ingress protection against dust and other contaminants
- Integral tracker battery providing 4 hours of operation, extendable to 8 hours with the external power pack
iLT and iLT X Configurations
The two models provide different measurement ranges, accuracy specifications, and measurement capabilities.
| Specification | iLT | iLT X |
|---|---|---|
| Laser Technology | ADM -3D | ADM -3D/6D |
| Maximum Distance Range (Diameter) | 25m | 50m | 50m | 80m* |
| Accuracy | ±(25 µm + 15 µm/m)* | ±(15 µm + 7 µm/m)* |
| Sample Output | 1,000hz | 1,000hz |
| Weight | 4.9 kg | 4.9 kg |
| Wireless Operation | yes | yes |
| SMR Measurement | yes | yes |
| Hand-Held Probing (vProbe) | – | yes |
| Hand Held Laser Scanning (iScan) | – | yes |
| Integrated Controller | yes | yes |
| Battery Operation | up to 8 Hours | up to 8 hours |
| 6DOF Active Target | – | yes |
Measurement Capabilities & Applications
The API Laser Tracker range provides a portable coordinate measurement solution for measurement tasks including dynamic 3D reflector measurement, hidden-point probing, high-definition surface scanning, feature extraction, automation, and machine control.
Applications supplied for the iLT Laser Tracker range include:
- Alignment
- Calibration
- Part Measurement
- Jigs, Fixture & Tooling Inspection
- Reverse Engineering
- Robotics
- Adaptive Control
The system is identified for use across industries including Aerospace, Automotive, Energy, Heavy Machinery, Agricultural Equipment, Military & Defense, Machine Tools, Automation, and Tooling.
Extended Measurement Functionality
API provides measurement accessories that extend Laser Tracker functionality for tactile measurement, laser scanning, and 6DOF measurement.
vProbe
A hand-held, lightweight, wireless tactile probe designed for inspection of intricate features and cavities on large, complex parts.
iScan 3D
Designed for large-scale scanning, including highly reflective and high-contrast surface areas.
According to the supplied technical specifications, Hand-Held Probing (vProbe) and Hand Held Laser Scanning (iScan) are supported by the iLT X configuration.
| Weight | 4.9 kg |
|---|---|
| Choose Variant | iLT, iLT X |
