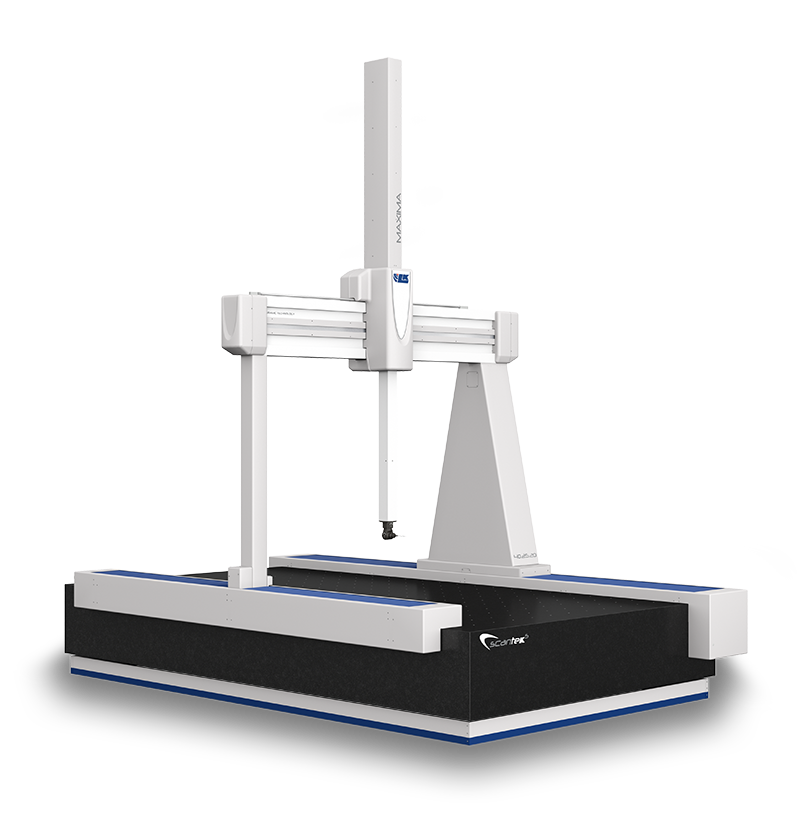

Maxima

Large Volume CMM

The MAXIMA range offers measuring volumes from 12m³ to 72m³, providing the largest measurement capacity of any table bridge-type CMM available today. Its high-capacity granite table delivers outstanding stability for measuring oversized and complex components.

By combining LK ceramic technology with a robust structural design, the MAXIMA delivers consistent accuracy, long-term stability, and dependable results.

Key Features

• Bonded ceramic beam and spindle construction.
• Near-perfect stiffness-to-weight ratio.
• Exceptional durability and performance consistency in varying manufacturing environments.
• Modular design for ease of maintenance and reliability.

High Performance and Reliability

• Low gap, high-efficiency air bearings.
• Zero hysteresis drive systems.
• Supports touch-trigger, contact scanning, and non-contact laser scanning probing solutions.

Technology and Software

• Advanced multi-sensor ready technology.
• Optimized for throughput.
• Adaptable to new materials and components.
• Innovative software workflows and intuitive features.

Specifications

• 28 standard sizes.
• Measuring volume:
• X: 3000 mm to 6000 mm
• Y: 2000 mm to 3000 mm
• Z: 2000 mm to 3000 mm
• Accuracy: 2.7+L/375
• Repeatability: 2.9 µm

Accessories for CMM

• ECOAIR
• RACKS
• SURFACER (SRP)
• Automation & Material Handling
• Workplates
• Handbox Unit
