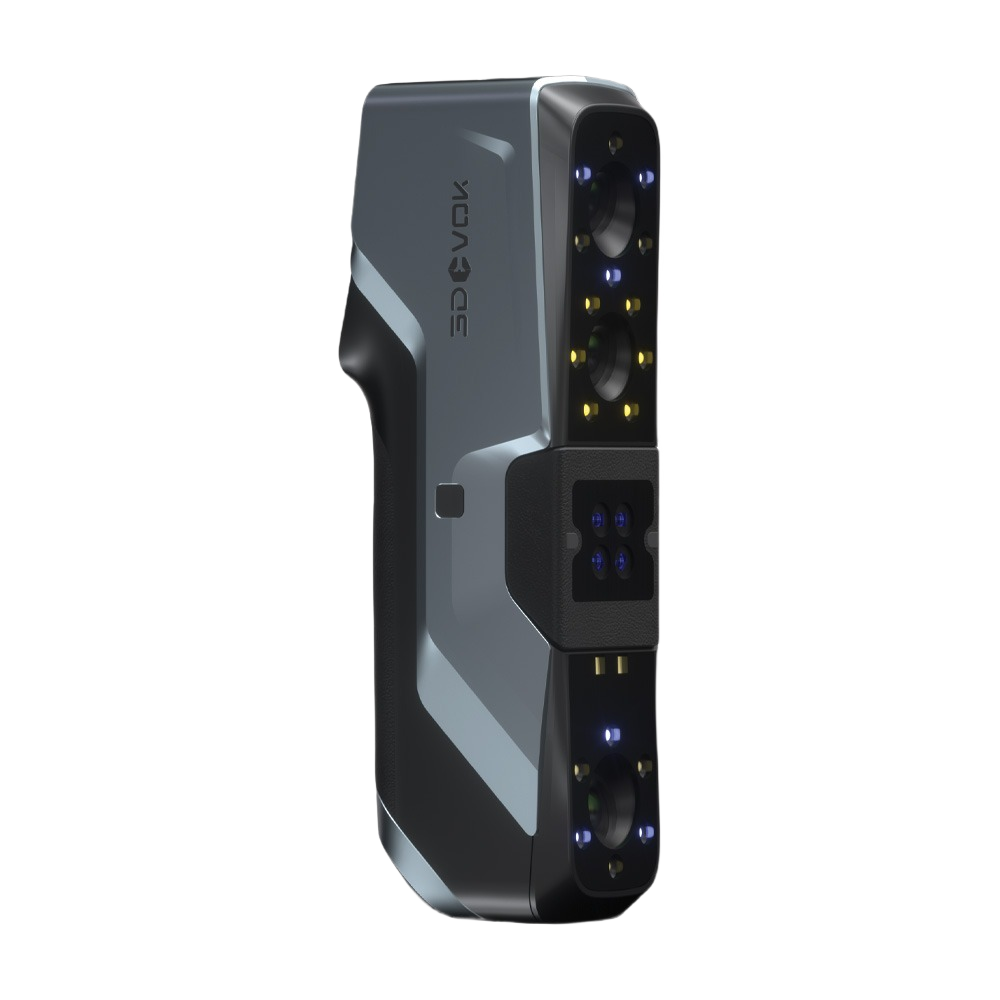

3DeVOK MT Gen2 Advanced 3D Scanner

Advanced 3D Scanner with Four Light Sources

3DeVOK MT Gen2 is an advanced 3D scanner featuring four light sources for industrial design and reverse engineering. It delivers high-precision scanning with enhanced performance, professional software support, and wireless scanning capability.

Key Features

• Accuracy up to 0.03 mm
• Resolution up to 0.05 mm
• 34 cross blue laser lines
• 11 parallel blue laser lines
• 1 single blue laser line
• Infrared VCSEL structured light
• Wireless scanning support (with wireless handle)
• Captures texture
• Enhanced capability to capture deep holes and hard-to-reach areas
• Supports hybrid, marker, texture feature, and geometric feature alignment

Key Technical Specifications

• Basic Accuracy: Up to 0.03 mm
• Volumetric Accuracy: Up to 0.03 mm + 0.04 mm/m
• Scanning Speed: Up to 4,500,000 Points/s
• Scanning Frame: Up to 80 FPS (Marker Alignment)
• Field of View: Up to 1100 × 1000 mm
• Output Formats: *.obj, *.stl, *.ply, *.asc, *.mk2, *.txt, *.epj, *.apj, *.spj, *.map, *.sk
• Interface: USB 3.0
• Working Temperature: 0–40°C
• Working Humidity: 10%–90% RH (Non-condensing)
• Power Source: DC 12 V, 5.0 A
