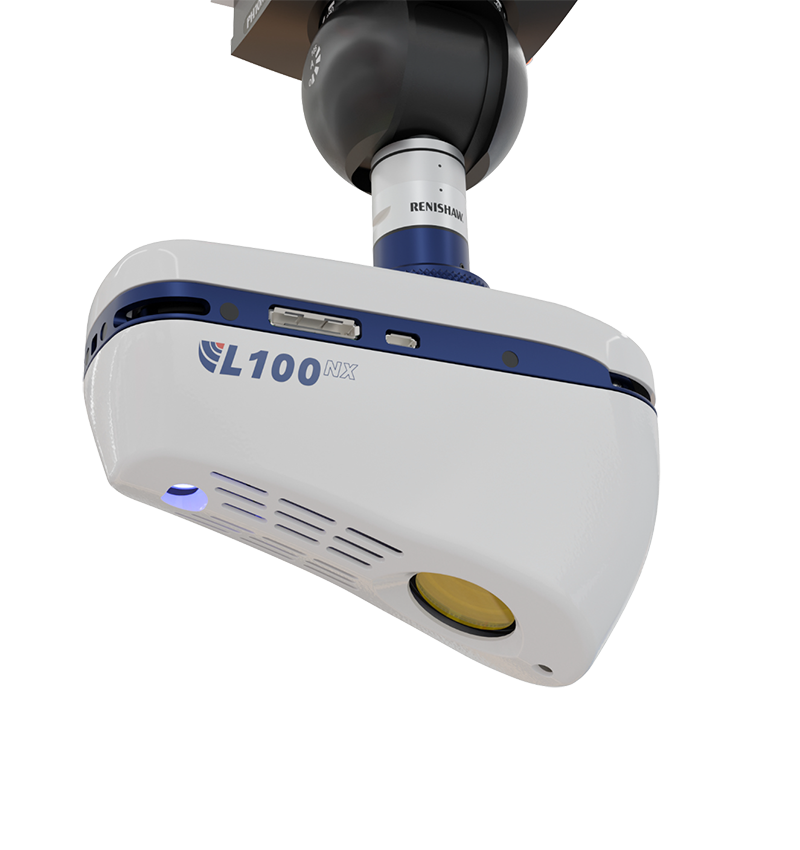

L100NX

CMM Laser Scanner

The L100NX is a CMM laser scanner designed for high-speed 3D scanning and precise surface and feature measurements. Building on the L100, it introduces blue laser technology for cleaner and more reliable scan data.

Key Features

• Blue Laser Precision to reduce scan data noise compared to traditional red laser systems.
• High-Speed Scanning with up to 420,000 points per second and a 110 mm stripe width.
• Enhanced Sensor Performance (ESP) automatically adjusts laser power for every point.
• Reflection Filter automatically removes unwanted reflections on shiny surfaces.
• High-Quality Nikon Optics with a custom-designed Nikon lens.
• Integrated Rotation Adaptor for improved scanner orientation on complex geometries.
• Field of View Projector displays the scanner coverage area directly on the part.

Specifications

• Scanner Type: Line
• Points/second (full field of view): 420,000
• Scan rate (full field of view): 210 Hz
• Points/second (reduced field of view): 530,000
• Scan rate (reduced field of view): 530 Hz
• Points per line: 2,000
• Resolution: 42 µm
