HC90

Horizontal CMM

The HC-90 Series is a horizontal Coordinate Measuring Machine (CMM) designed to combine the precision of bridge CMMs with horizontal flexibility. It features LK Metrology’s proprietary air bearing design and a ceramic column construction for accurate measurement of larger components.

Advanced Material for Supreme Performance

• Constructed using Alumina Ceramic.
• Designed to provide optimal speed, stiffness, and long-term measurement accuracy.
• Alumina Ceramic is 330% stiffer and four times more thermally stable than aluminum.

Designed for Versatility and Integration

• Optimized for production-line integration.
• Flexible positioning and articulation for installation in a wide range of environments.
• Available in four design options:
  • HC-90T – Table-mounted (10.4.6 up to 50.16.20)
  • HC-90R – Single-arm guideway (40.16.20 up to 100.16.30)

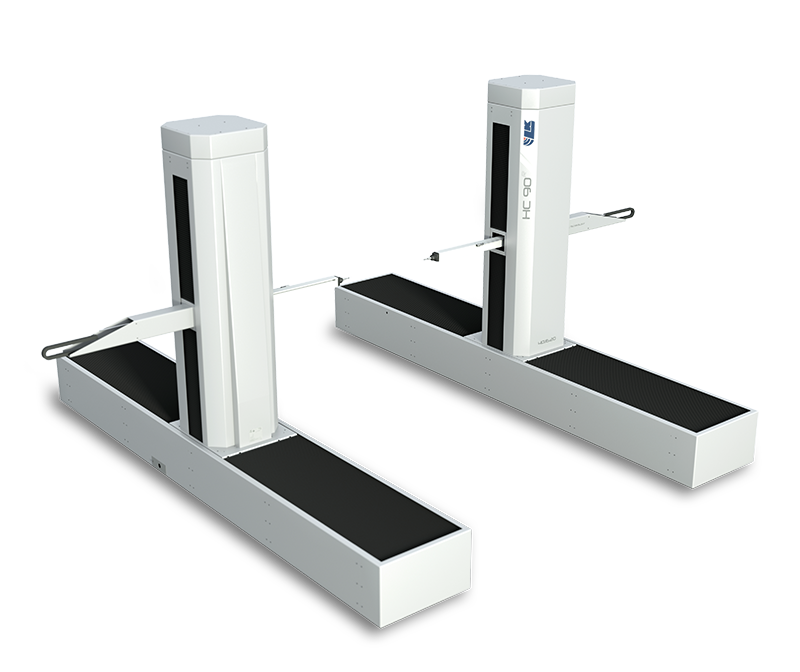

  • HC-90TR – Twin-arm guideway (40.16.20 up to 100.16.30)
  • HC-90WTR – Floor-integrated twin guideway (45.16.20 up to 100.16.30)

Stress-Free Construction

• Stress-free ceramic guideways for long-term dimensional stability and accuracy.
• Lightweight Alumina Ceramic enables faster measurement speeds across temperature ranges.

Accessories for CMM

• ECOAIR
• RACKS
• SURFACER (SRP)
• Automation & Material Handling
• Workplates
• Handbox Unit
