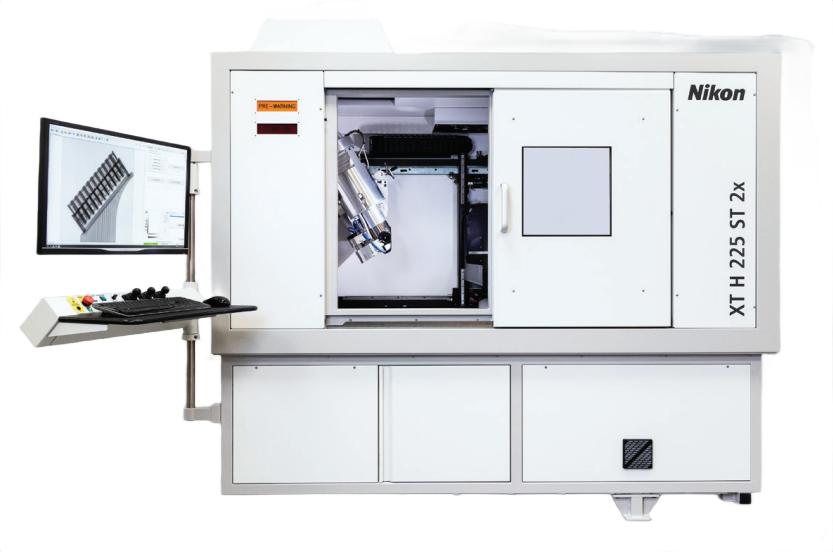

XT H Series – Helical CT Scanner

Overview

The XT H Series – Helical CT Scanner is a versatile microfocus CT system designed for high-resolution inspection of components ranging from tiny plastic connectors to aluminum castings. It is suitable for R&D, failure analysis, and production quality control, combining flexible CT scanning capabilities with technologies that help shorten cycle time and improve system uptime.

Key Features

• High-resolution microfocus CT inspection.
• Suitable for components ranging from tiny plastic connectors to aluminum castings.
• Supports R&D, failure analysis, and production quality control.
• 225 kV Rotating.Target 2.0 for continuous operation up to 450 W.
• Up to three times higher resolution for the same power or three times faster data collection for a given resolution.
• X.Tend Helical CT enables scanning of tall objects in a single acquisition.
• Eliminates artifacts associated with cone beam and multi-scan stitching.
• Supports higher magnification for increased resolution.
• Flexible system configuration with a choice of X-ray source, targets, CT scanning strategies, and motorized source-to-detector distance adjustment.
• Compatible with Inspect-X for 3D CT, AI Reconstruction, and Scatter Correction CT.

Applications

• Research and Development
• Failure Analysis
• Production Quality Control

General Technical Specifications
