Pole mount for reference marks
Price Available Upon Request

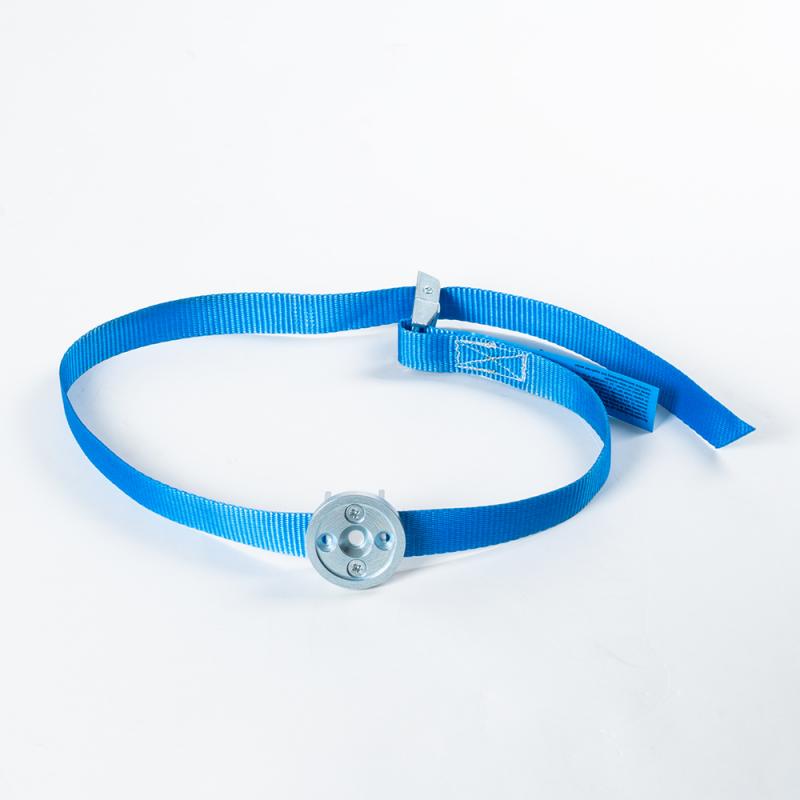

The Pole Mount for Reference Marks is designed for the secure attachment of surveying accessories with magnetic bases to pipes, trees, cables, masts, streetlights, and similar structures. Equipped with a 40 mm precision measuring point disc and an adjustable lashing strap, it provides a practical mounting solution for reference spheres, target plates, and mini prisms in both indoor and outdoor environments.

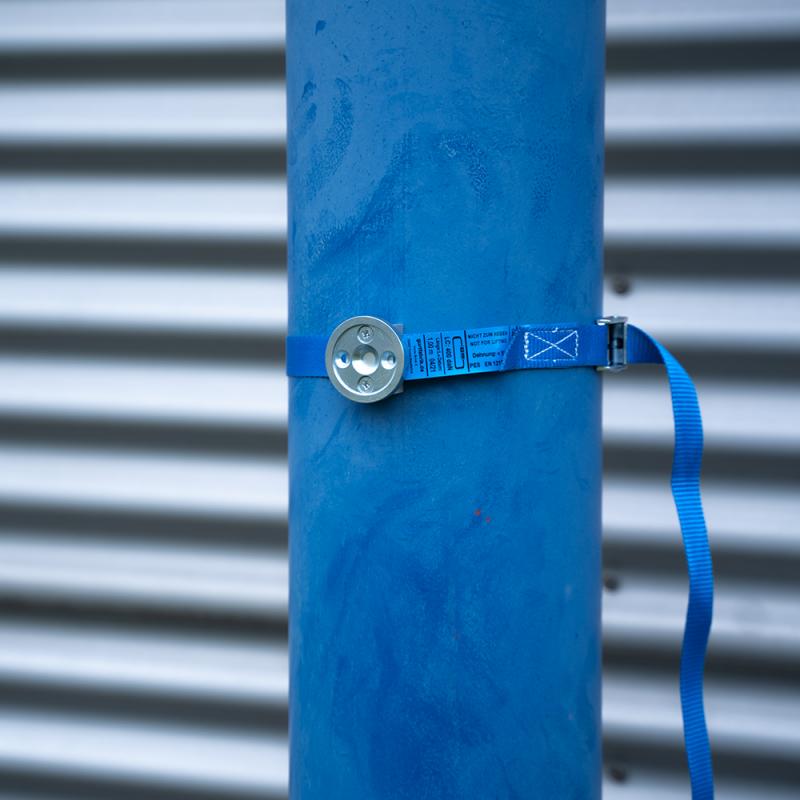

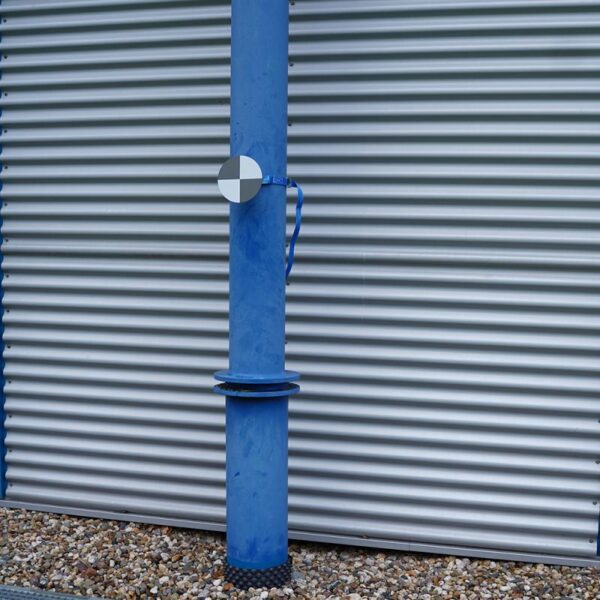

This pole mount enables fast and reliable installation of compatible surveying accessories on a wide variety of structures. Using the supplied lashing strap, the mount can be attached securely to round or irregular surfaces while providing a stable magnetic mounting point.
The integrated precision measuring point disc features a 40 mm centering diameter, making it suitable for accessories equipped with compatible magnetic bases.
Product Features

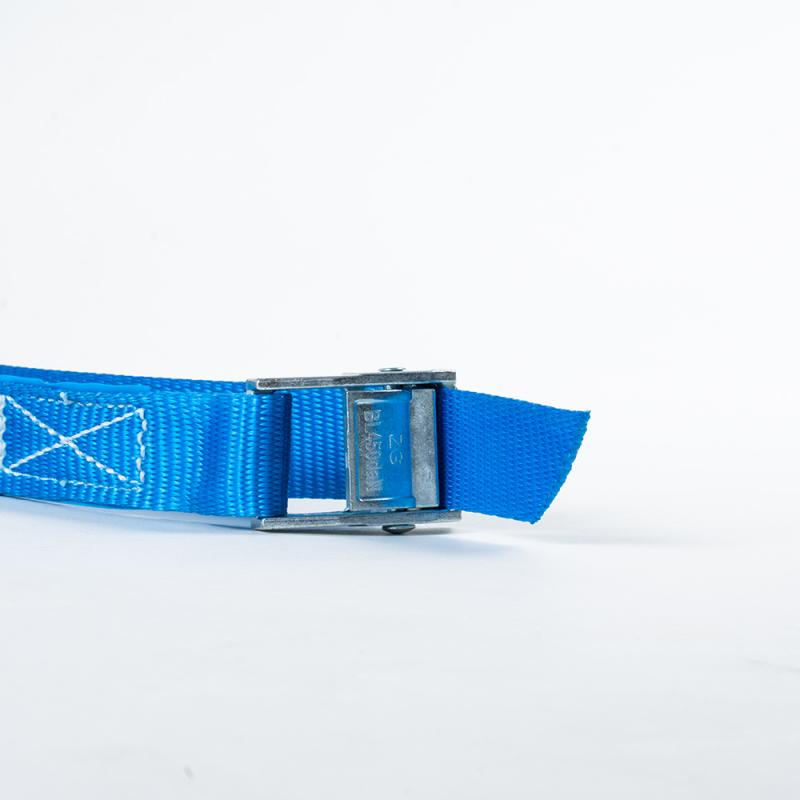

- Length of lashing strap: 1,000 mm
- Maximum pipe diameter: 318 mm
- Minimum pipe diameter: 35 mm
- Tensile strength of lashing strap: LC = 400 daN
- Elongation of lashing strap: < 5%

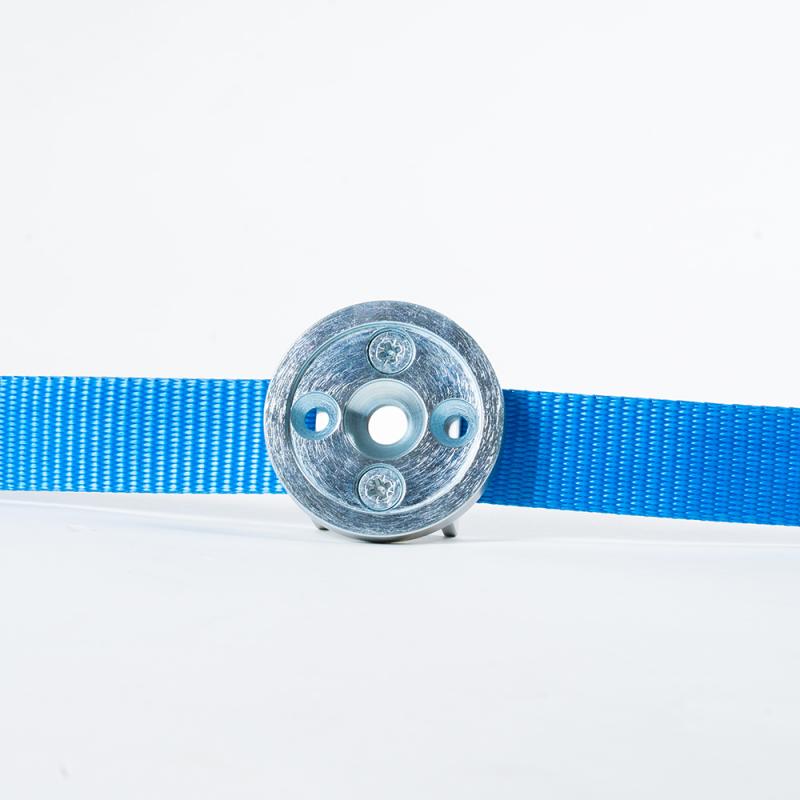

- Precision measuring point disc with 40 mm diameter centering
- Material of precision measuring point disc: Electro-galvanized steel
- Base dimensions: 40 × 30 × 15 mm
- U-shaped cutout dimensions:
- Height: 12 mm
- Width: 24 mm
Purpose of Use

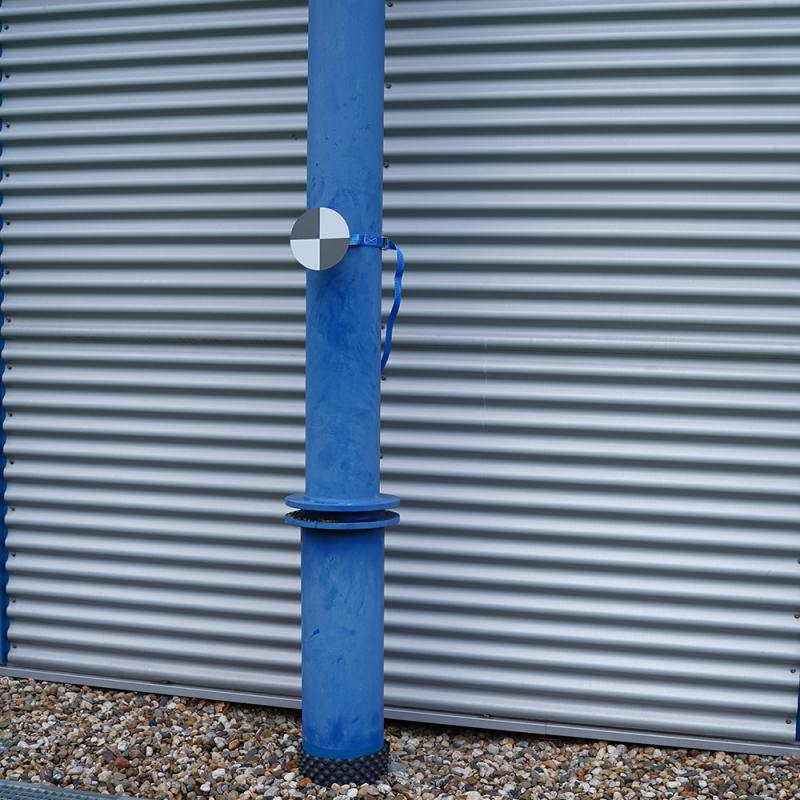

- Attachment to pipes, cables, trees, masts, streetlights, and guideposts
- Holder for surveying accessories with a magnetic base
- Suitable for indoor and outdoor use
Compatible Accessories

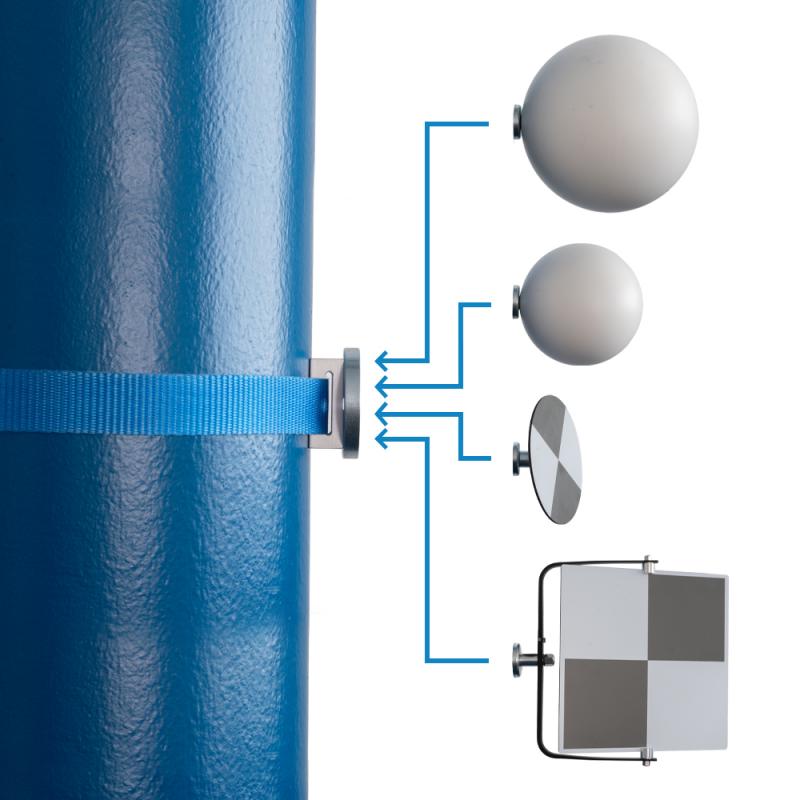

The mounting disc is designed for accessories with a 40 mm magnetic base, including:

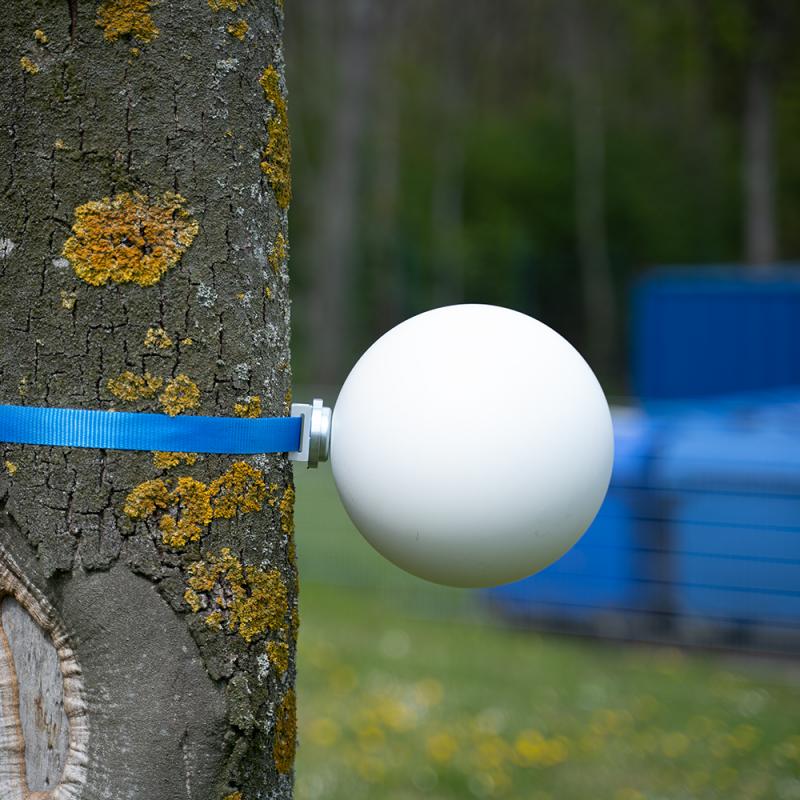

- Reference spheres

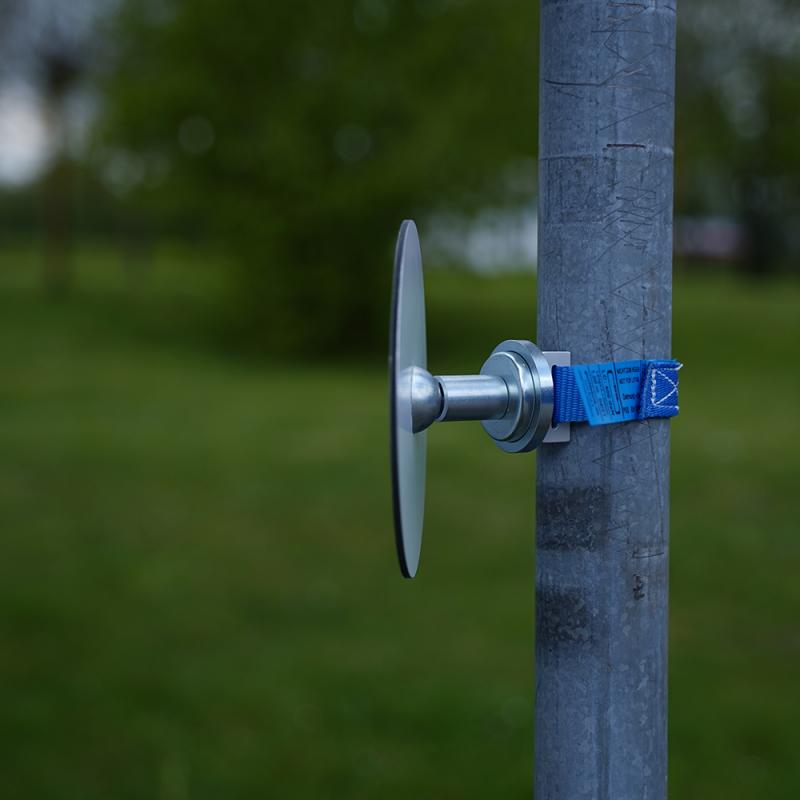

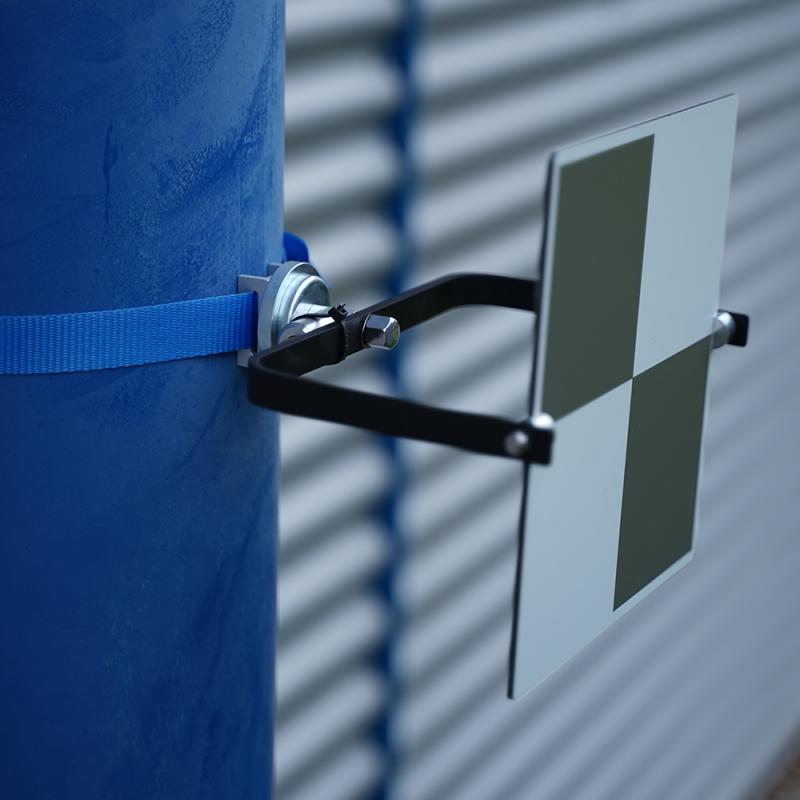

- Target plates
- Mini prisms
Application Areas
- Architecture, construction, and modeling
- Energy and utility companies
- Factory and plant construction
- Aircraft and shipbuilding
- Crime scene and accident analysis
| Weight | 0.10 kg |
|---|---|
| Dimensions | 5 × 2.5 × 5 cm |
