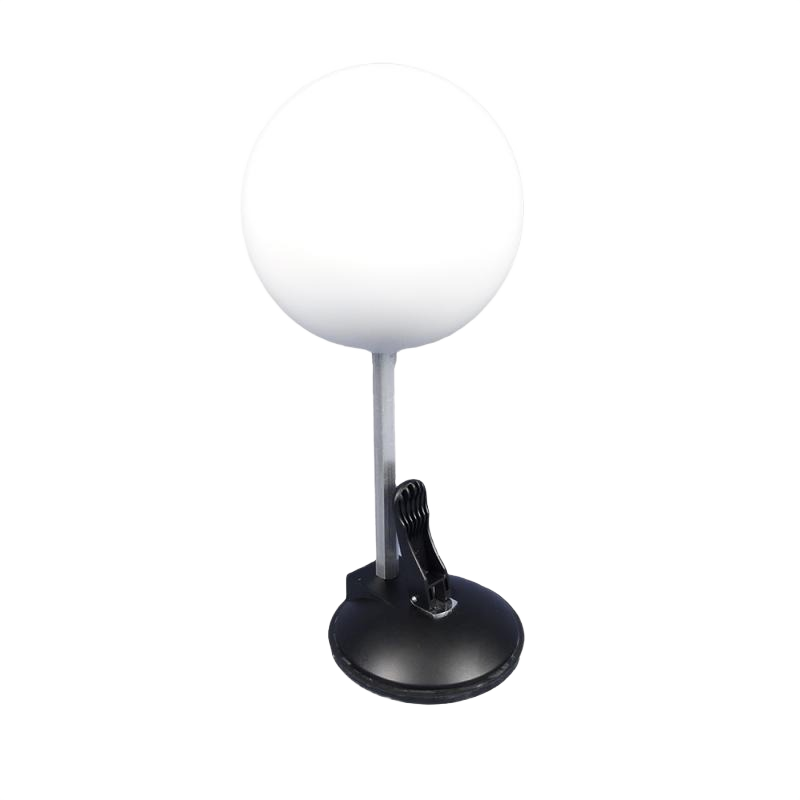

Suction cup holder for reference spheres

This suction cup holder is designed for attaching reference spheres to smooth, non-porous surfaces where conventional mounting methods may not be practical. The system is particularly suitable for façade surveying, architectural documentation, and historic preservation projects.

The integrated spacer helps maintain visibility of the reference sphere, even when mounted on windows or surfaces with deep frames and jambs.

Product Features

• Suction disc diameter: 120 mm
• Load capacity: 15 kg
• Weight of suction cup holder: 315 g

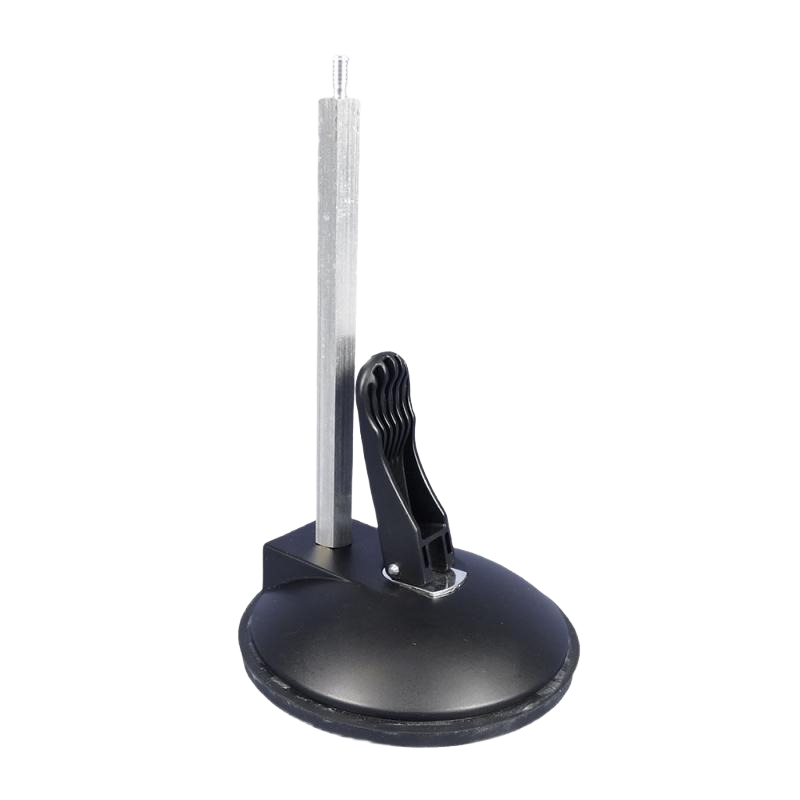

• Spacer length: 150 mm
• Spacer equipped with 2 × M8 threads
• Weight of spacer: 60 g
• Distance between mounted surface and sphere center with a 145 mm reference sphere: approximately 250 mm
• Toggle lever attachment mechanism
• Rocker arm can be operated while the sphere is mounted
• Residue-free removal after scanning

Purpose of Use

• Mounting reference spheres on:

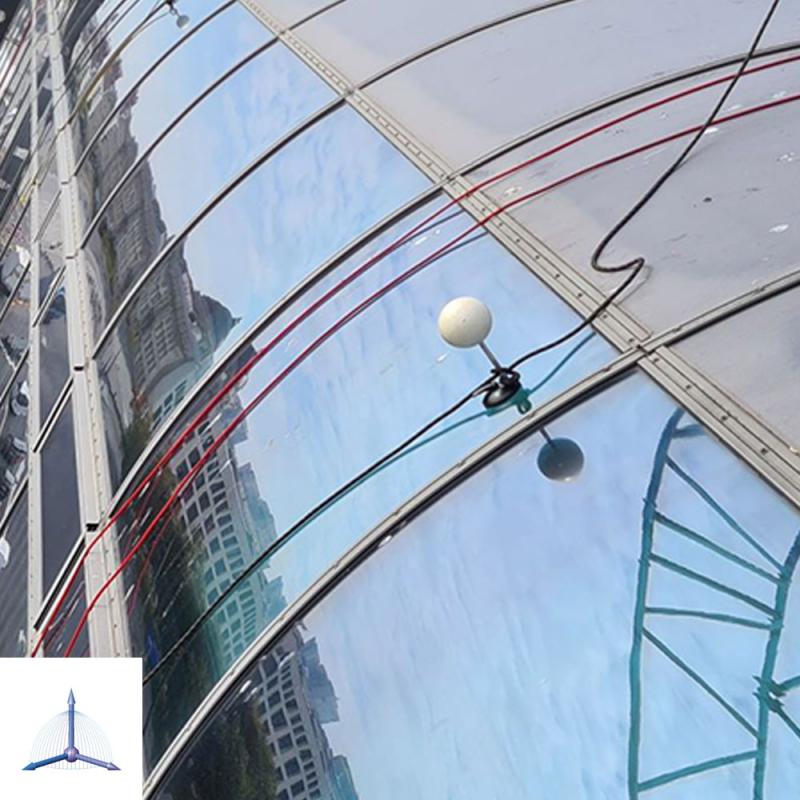

  • Glass facades

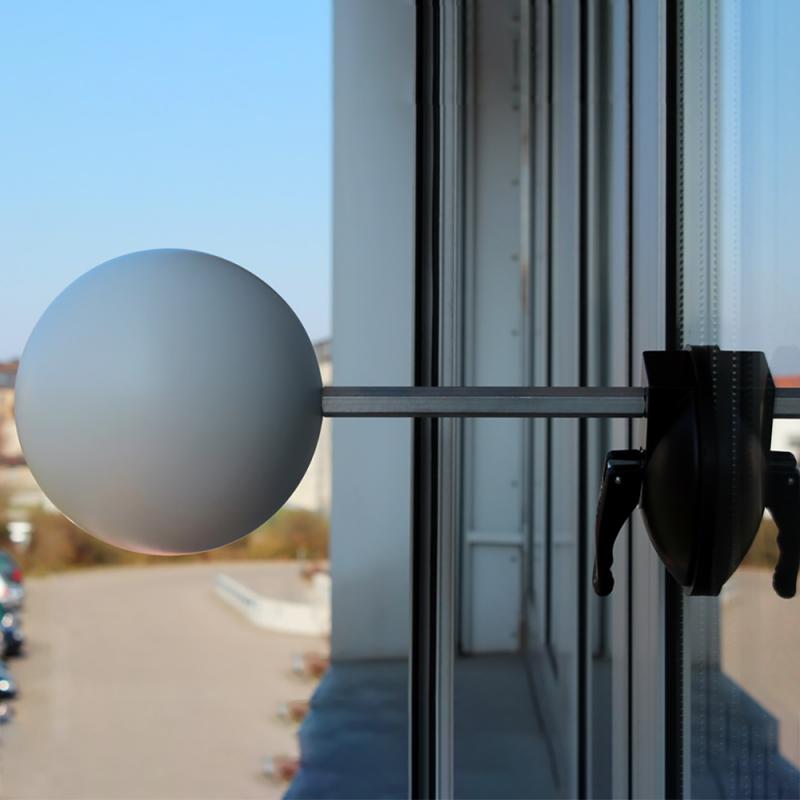

  • Windows
  • Painted surfaces
  • Stainless steel surfaces
  • Coated wood
  • Plastic
  • Marble
• Creating temporary reference points for laser scanning and surveying projects
• Supporting tachymetric determination of reference points through sphere replacement with a compatible mini prism

Compatibility

• Reference spheres
• Mini prism

The reference sphere can be replaced with a compatible mini prism to enable tachymetric determination of reference points.

Application Areas

• Facade surveying
• Architectural surveying
• Historic preservation
• Placement of reference spheres on inaccessible windows
• Installation of reference points on partition walls
• Installation of reference points on stainless steel structures
• Cleanrooms and laboratories
• Mounting on plastic surfaces without leaving marks

Benefits

• Secure attachment to smooth surfaces
• Easy installation and removal
• No residue left after removal
• Maintains visibility of the reference sphere on recessed surfaces
• Suitable for indoor and outdoor surveying applications
