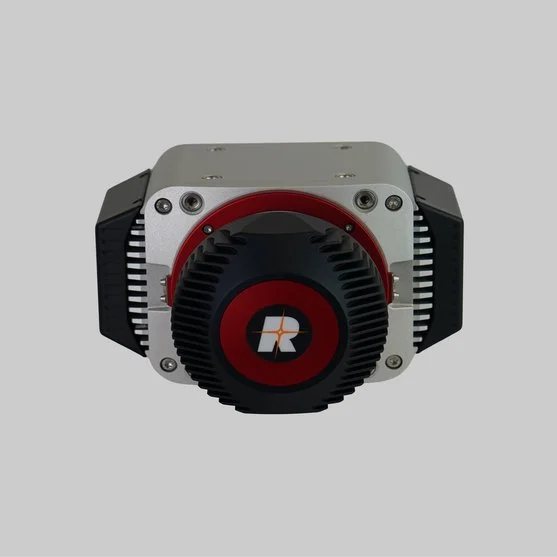

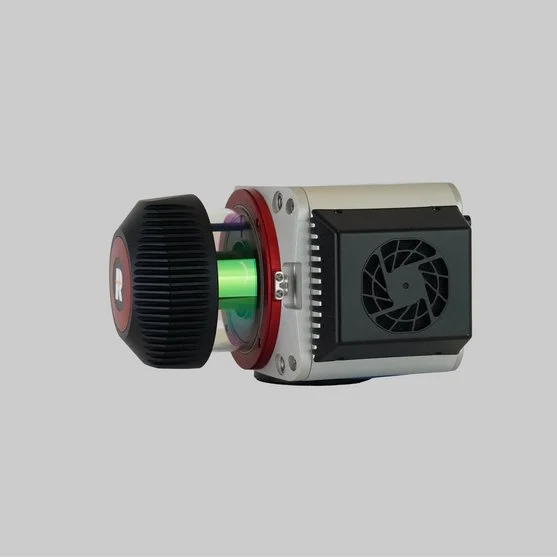

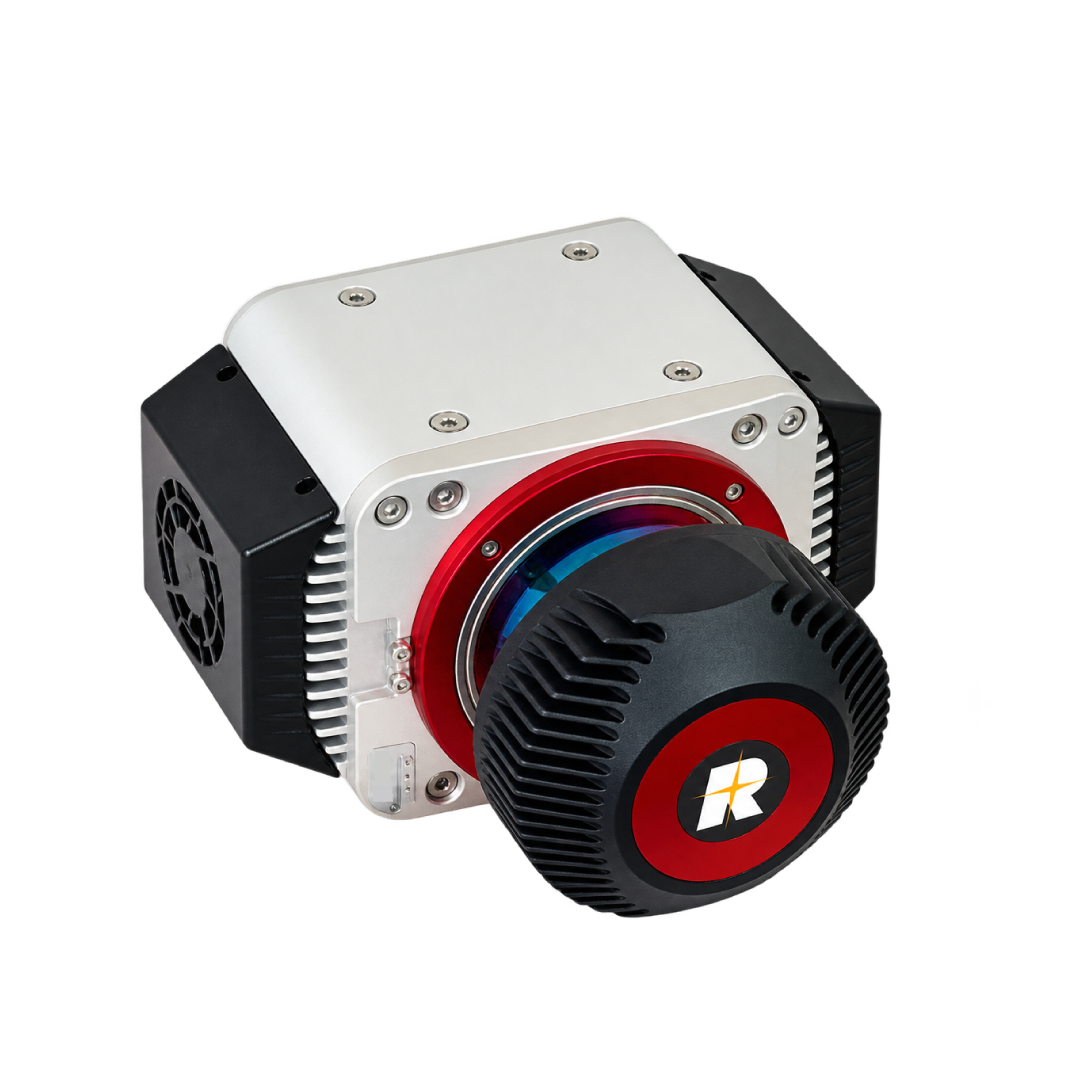

RIEGL VUX-3HA High-Performance LiDAR Sensor
Price Available Upon Request
The RIEGL VUX-3HA is a high-performance LiDAR sensor for kinematic laser scanning, offering measurement rates up to 3 million measurements/sec, scan speeds up to 400 scans/sec, 3 mm accuracy, 2 mm precision, and a 360° field of view. Its compact 3.2 kg design combines RIEGL waveform processing technology, multiple-target capability, GNSS/IMU interfaces, and internal SSD storage for mobile road and rail mapping applications.
Product Overview
The RIEGL VUX-3HA is a high-performance LiDAR sensor designed for kinematic laser scanning. It combines an effective measurement rate of up to 3 MHz with an ultra-fast scanning speed of up to 400 scans per second, supporting high platform speeds and efficient data acquisition while maintaining a high level of point-cloud detail.
The sensor uses RIEGL’s pulsed laser ranging technology based on echo signal digitization with subsequent online waveform processing. This supports reliable measurements under adverse atmospheric conditions and provides effective discrimination of multiple target echoes.
Each measurement point can also include additional attributes such as range-independent reflectance and calibrated amplitude, providing information that can be used for classification and further AI-based processing.
Key Features
- Measurement rate up to 3,000,000 measurements/sec
- Scan speed up to 400 scans/sec
- 3 mm accuracy
- 2 mm precision
- 360° field of view
- Regular point pattern with parallel scan lines
- Multiple-target capability
- Echo signal digitization
- Online waveform processing
- Multiple-time-around processing
- Calibrated amplitude
- Range-independent reflectance
- Mechanical and electrical interface for an external IMU sensor
- Electrical interfaces for GNSS data string and sync pulse (1PPS)
- LAN TCP/IP interface
- Internal solid-state drive (SSD) for data storage
- Compact and rugged construction
- User-friendly mounting
Measurement Performance
The RIEGL VUX-3HA provides survey-grade performance with:
- 3 mm accuracy
- 2 mm precision
- Laser pulse repetition rates up to 3 MHz
- Scan speeds up to 400 scans/sec
- Full 360° field of view
Its high measurement and scanning rates are designed to support efficient data acquisition from moving platforms.
RIEGL Waveform Processing Technology
The VUX-3HA uses several RIEGL technologies for laser ranging and target detection:
- Echo signal digitization
- Online waveform processing
- Multiple-time-around processing
- Multi-target capability
These technologies support measurement under challenging atmospheric conditions and improve discrimination of multiple echoes.
Point Attributes
Scan data can include additional point attributes such as:
Calibrated amplitude
Calibrated amplitude values visualize scanned objects while taking measurement distance into account.
Range-independent reflectance
Range-independent reflectance values describe scanned objects independent of measurement distance and according to their surface properties.
According to the supplied RIEGL information, these attributes can be used for classification and further AI-based processing.
Technical Data Overview
| Specification | 300 kHz | 1000 kHz | 1800 kHz | 3000 kHz |
|---|---|---|---|---|
| Laser Pulse Repetition Rate PRR (peak) | 300 kHz | 1000 kHz | 1800 kHz | 3000 kHz |
| Max. Measuring Range, natural targets (ρ ≥ 10%) | 180 m | 100 m | 90 m | 70 m |
| Max. Measuring Range, natural targets (ρ ≥ 80%) | 500 m | 280 m | 250 m | 200 m |
| Minimum Range | 1 m | 1 m | 1 m | 1 m |
| Max. Number of Targets per Pulse | 31 | 15 | 8 | 5 |
| Accuracy / Precision | 3 mm / 2 mm | 3 mm / 2 mm | 3 mm / 2 mm | 3 mm / 2 mm |

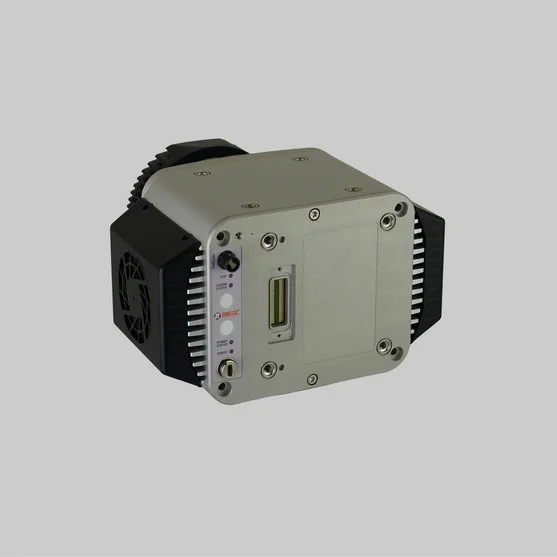

Integrated Interfaces and Data Storage
The VUX-3HA provides interfaces designed for integration into mobile and kinematic mapping systems.
These include:
- Mechanical and electrical interface for external IMU
- Electrical interface for GNSS data string
- 1PPS synchronization pulse interface
- LAN TCP/IP
- Internal SSD for data storage
Optional RIEGL IMU/GNSS Integration
The scanner is also available with the optional RIEGL VUX-3-RiLOC-F proprietary IMU/GNSS unit.
This unit integrates with RIEGL acquisition and post-processing workflows and provides position and orientation information in addition to LiDAR measurements.
According to RIEGL, rigorous IMU/GNSS/LiDAR adjustment supports point-cloud alignment with 3D point-cloud precision close to the laser ranging accuracy.
Physical Specifications
| Specification | Value |
|---|---|
| Dimensions | 21.2 × 20.9 × 12.5 cm |
| Weight | 3.2 kg |
The dimensions above are converted directly from the supplied manufacturer specification of 212 × 209 × 125 mm. The source does not define the dimensional order as length, width, and height, so those labels have not been assigned.
Main Applications
Road Applications
- Transportation Infrastructure Mapping
- Road Surface Measurement
- HD Mapping for Autonomous Vehicles
- City Modeling
- GIS Mapping and Asset Management
- As-Built Surveying
Rail Applications
- Rapid and Safe Data Capture with Minimal Disruption to Network Schedules
- Track and Infrastructure Monitoring
- Clash Detection Simulation and Clearance Analysis
Software
RIEGL provides the following software packages for the RIEGL VUX-3HA:
- RiPROCESS
- RiACQUIRE
- RiUNITE
These software packages are complemented by:
- RiVLib
- RDBLib
- RiMAP Plugin for ArcGIS
