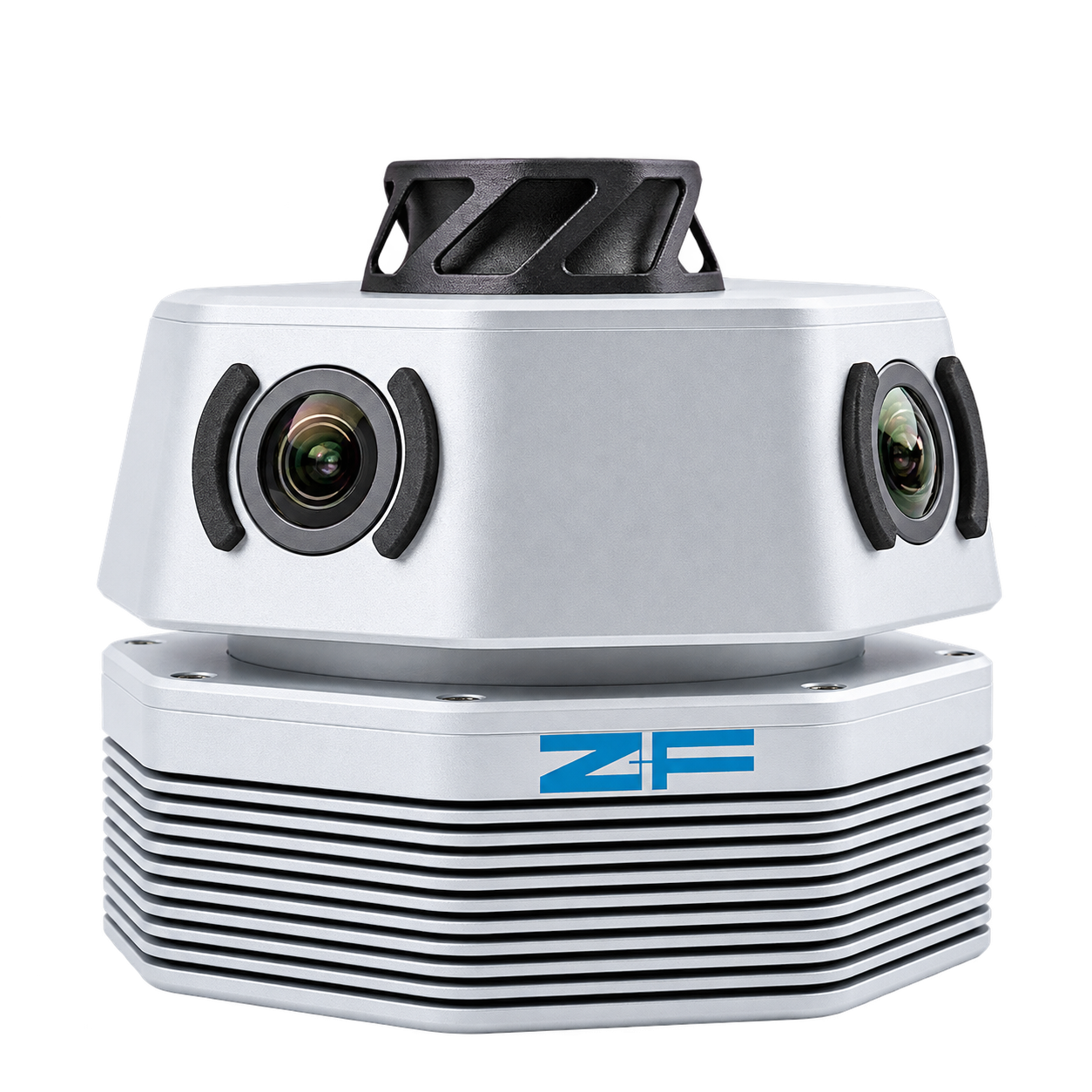

Z+F PanOptiCam

Product Overview

The Z+F PanOptiCam is a compact 360° high-resolution imaging system designed for mobile mapping, surveying, and inspection applications.

It combines 100 MPx panoramic imaging, integrated GNSS georeferencing, onboard processing, and internal storage in a stand-alone system. Images can be stored directly within the camera or streamed via Ethernet for data transfer during mobile operation.

A single cable supplies both power and data, helping simplify system installation and reduce overall integration complexity.

Key Features

• 360° panoramic imaging
• 100 MPx resolution
• Integrated GNSS georeferencing
• Onboard PC
• Internal storage
• Ethernet streaming
• Integrated Wi-Fi
• Web-based user interface
• Single cable for power and data transfer
• External trigger
• Data privacy functions
• IP67 protection class

High-Resolution Panoramic Imaging

The Z+F PanOptiCam captures 360° panoramic images at 100 MPx resolution, providing high-resolution visual data for professional mapping and inspection workflows.

Integrated GNSS Georeferencing

The camera includes integrated GNSS georeferencing, allowing captured panoramic imagery to be associated with positional information.

Onboard Processing and Storage

The PanOptiCam includes:

• Onboard PC
• Internal storage
• Direct image storage within the camera

This allows the system to operate as a compact stand-alone imaging solution.

Connectivity

The system supports:

• Ethernet streaming
• Wi-Fi control
• Web-based user interface
• External trigger

Images can either be stored internally or streamed over Ethernet.

Simplified Installation

A single cable is used for both:

• Power supply
• Data transfer

This simplifies installation and reduces system complexity.

Environmental Protection

The Z+F PanOptiCam is housed in an IP67-protected enclosure, supporting use in professional mobile applications.

Applications

According to the supplied source, the PanOptiCam is suitable for:

• Mobile Mapping
• Surveying
• Inspection Applications
