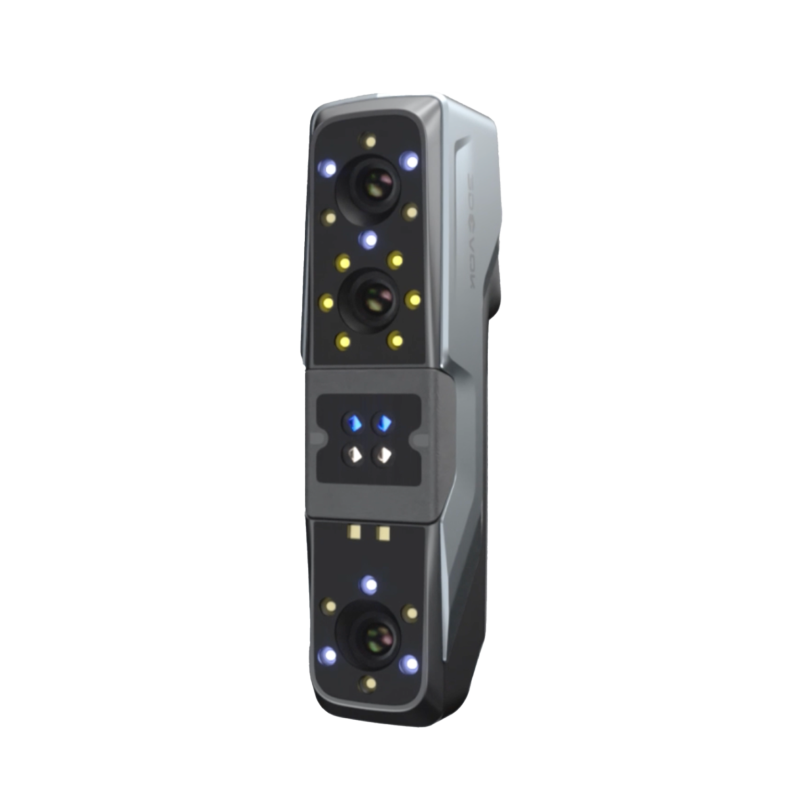

3DeVOK MT Professional 3D Scanner

Professional 3D Scanner for Versatile Scanning

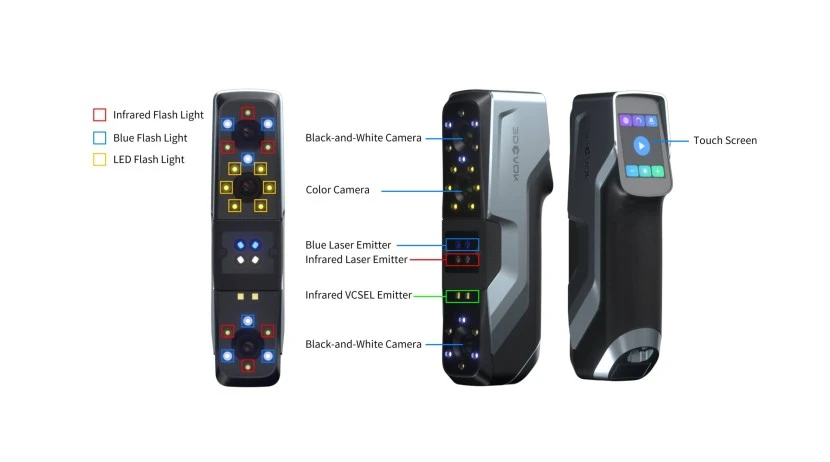

3DeVOK MT is a professional and versatile 3D scanner built with industrial-grade 3D scanning technology. It combines 34 blue laser lines, 22 infrared laser lines, and infrared VCSEL structured light to deliver accurate, efficient, and flexible 3D scanning.

Key Features

• Up to 0.04 mm accuracy
• Volumetric accuracy up to 0.04 mm + 0.04 mm/m
• Resolution up to 0.05 mm
• Scanning speed up to 4,500,000 points/s
• 34 blue laser lines
• 22 infrared laser lines
• Infrared VCSEL structured light
• Marker-free scanning
• Advanced hybrid alignment
• Easy scanning of black and reflective objects without spray
• Outdoor scanning support

Key Technical Specifications

• Basic Accuracy: Up to 0.04 mm
• Volumetric Accuracy: Up to 0.04 mm + 0.04 mm/m
• Scanning Speed: Up to 4,500,000 points/s
• Scanning Distance: 150–1500 mm
• Field of View: Up to 1100 × 1000 mm
• Output Formats: *.obj, *.stl, *.ply, *.asc, *.mk2, *.txt, *.epj, *.apj, *.spj, *.map, *.sk
• Interface: USB 3.0
• Working Temperature: 0°C–40°C
• Working Humidity: 10%–90% RH (Non-condensing)
• Power Source: DC 12 V, 5.0 A
