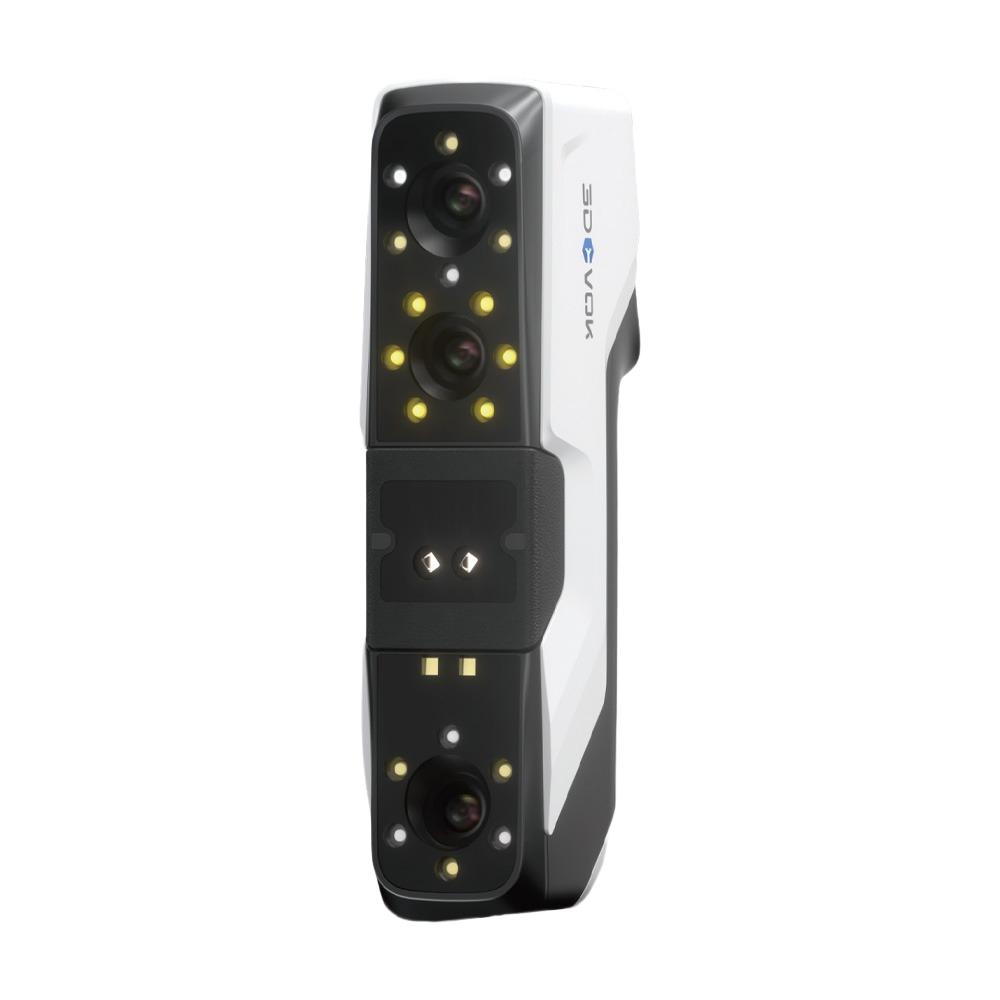

3DeVOK MQ 3D Color Scanner

Wireless 3D Color Scanner

3DeVOK MQ 3D Color Scanner is a wireless 3D scanner featuring 22-line infrared laser and infrared speckle technology with dual field of view. It is designed for efficient marker-free scanning and detailed 3D data capture across a wide range of object sizes.

Key Features

• Up to 0.08 mm accuracy
• 0.1 mm resolution
• 22-line infrared laser
• Infrared VCSEL structured light
• Marker-free 3D scanning

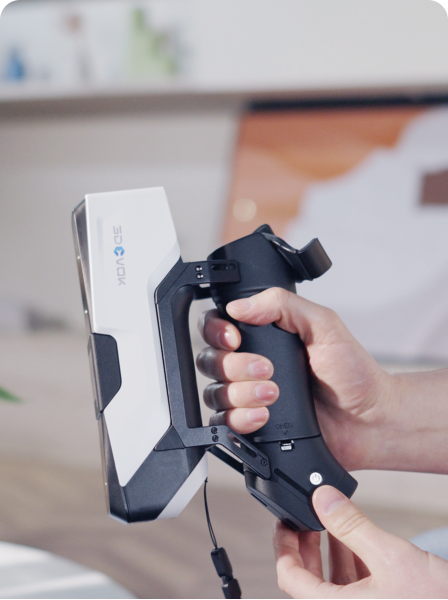

• Wireless scanning (with optional handle)
• Texture capture support
• Dual field of view

Key Technical Specifications

• Accuracy: Up to 0.08 mm
• Point Distance: 0.1–5 mm
• Scanning Distance: 150–1,000 mm (Infrared Laser), 150–1,500 mm (Infrared Speckle)
• Scanning Speed: Up to 2,450,000 Points/s (Laser), Up to 4,500,000 Points/s (Speckle)
• Scanning Frame: Up to 70 FPS (Laser), Up to 30 FPS (Speckle)
• Laser Class: Class I (Eye-safe)
• Interface: USB 3.0
• Output Formats: *.obj, *.stl, *.ply, *.asc, *.mk2, *.txt, *.epj, *.apj, *.spj, *.map, *.sk
• Working Temperature: 0°C–40°C
• Working Humidity: 10%–90% RH (Non-condensing)
• Power Source: DC 12 V, 5.0 A
