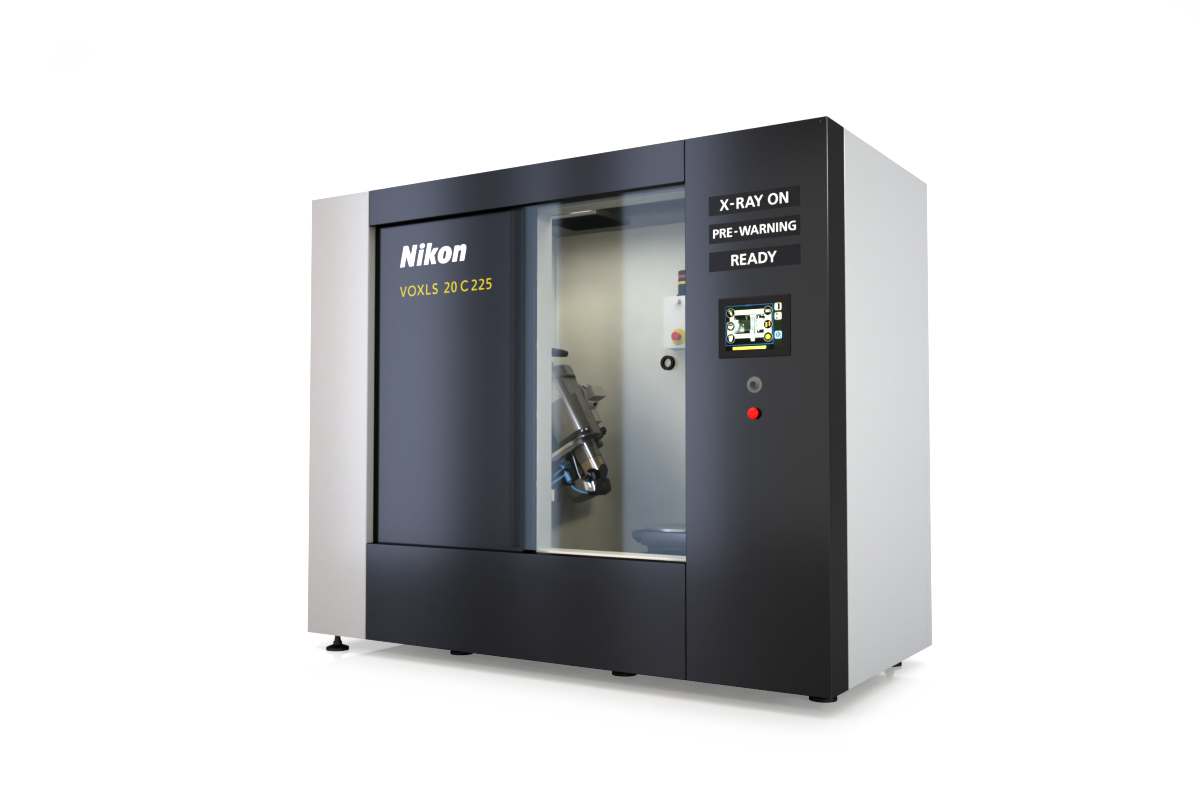

VOXLS 20 Series – Compact X-ray and CT Systems

Overview

The VOXLS 20 Series delivers X-ray and CT inspection capabilities in a space-efficient footprint, with scan energies up to 225 kV for inspecting a wide range of samples. Designed for quality control laboratories and production environments, the system combines a metrology-grade granite-based manipulator with rigid steel towers to provide precision, reliability, and high-quality inspection data.

Key Features

• Compact, space-efficient design that fits through a standard double door.
• Scan energies up to 225 kV.
• Best-in-class CT inspection envelope for a wide variety of samples.
• Supports X.Tend Helical CT, Offset.CT, and Panel Shift CT scan enhancements.
• Motorized dual-source configuration (VOXLS 20 C 225) for switching between:
  • 225 kV reflection target
  • 160 kV transmission target
• Source Optimization for streamlined filament replacement, setup, and ongoing optimization.
• Large viewing window for easy sample positioning.
• Motorized door opens in under 4 seconds.
• Metrology-grade granite-based manipulator with rigid steel towers.
• High-precision encoders and motors for accurate and repeatable data collection.
• Automation-ready with Scan Profiles, Batch Scanning, Autoloader, robotic loading, and Nikon Automation OPC UA interface.

Applications

• Automotive
• Aerospace
• Academic
• Batteries
• Additive Manufacturing
• Castings
• Electronics

General Technical Specifications
