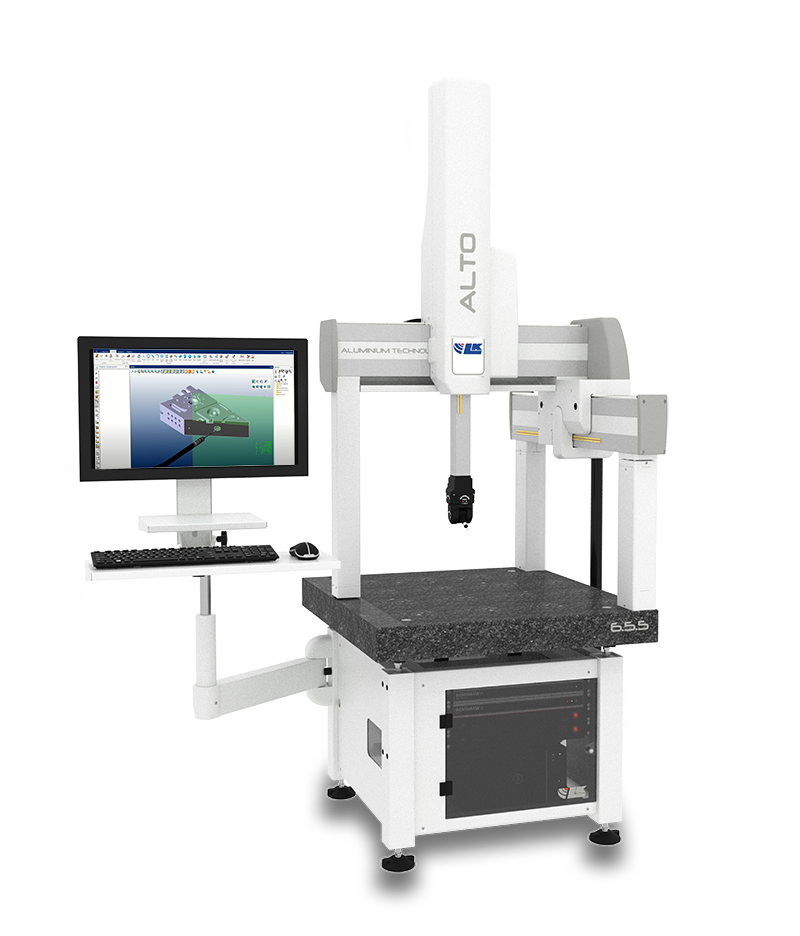

ALTO | Aluminium Technology

Bridge CMM

The ALTO | Aluminium Technology series is designed for dimensional quality control involving smaller parts, more complex designs, and tighter design limits. It is intended for professionals moving toward automated inspection with user-friendly software and versatile inspection options.

Innovative Design

• Aluminium half-gantry design for structural stiffness and reduced system mass
• Micro-machined guideways with hard anodized finish for wear and corrosion resistance
• Air bearings with a large bearing spread for dynamic stability and low maintenance
• Friction drives with zero hysteresis for smooth and precise motion control

Advanced Features

• 0.1 µm encoders
• High-resolution optical scale system
• Passive anti-vibration system with optional active variant
• Temperature compensation technology
• Integrated electronics
• Optional desk unit with controller mounting

Specifications

• Measuring Volume: 600 × 500 × 500 mm
• Accuracy: 2.5+3.0L/1000
• Repeatability: 2.3 µm
• Acceleration: 1500 mm/sec²
• Velocity: 500 mm/sec
• Equipped with: TP200 probe
• Equipped with: PH10 PLUS head

ALTO’s Unique Offering

• Compact CMM with retractable monitor arm
• Standard automated stylus changing
• Optional high-performance 5-axis probe system
• Accessible from three sides for part loading
• Suitable for production and quality control settings

Employing Aluminium Technology

The ALTO series uses advanced aluminium alloy for its structure and guideways to provide structural stiffness while maintaining low moving mass for rapid and precise measurements.
