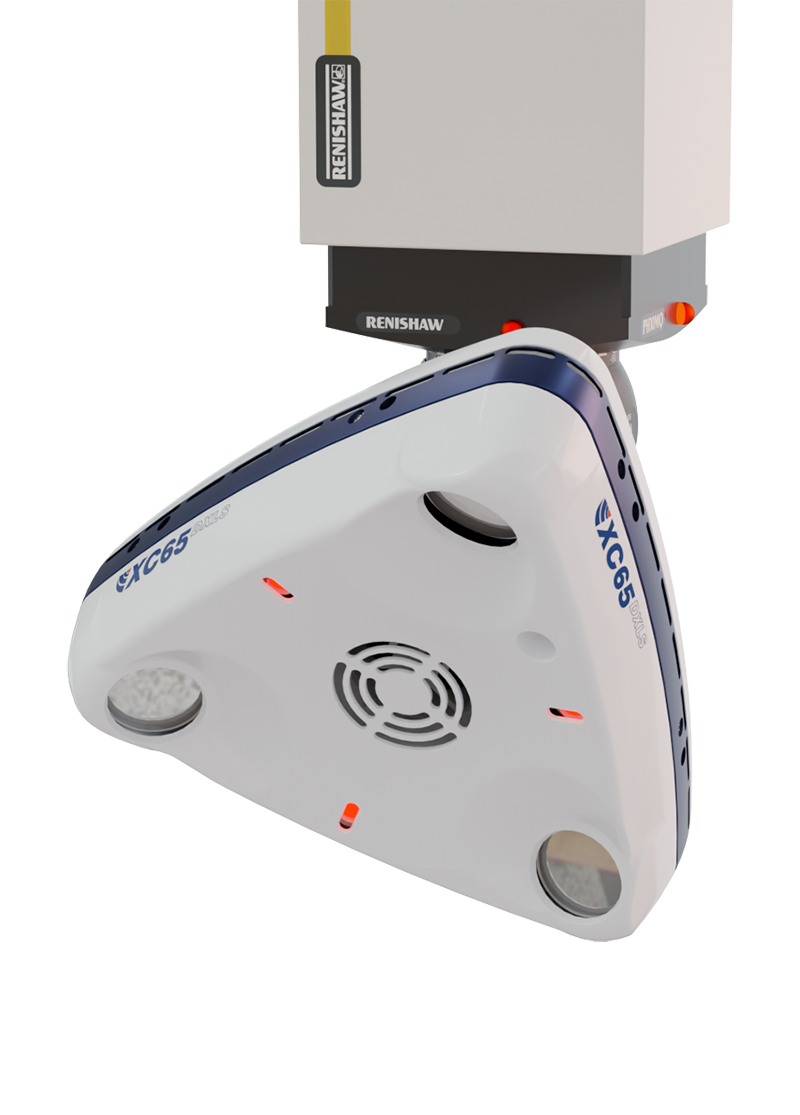

XC65DX

Cross Scanner

The XC65DX Cross Scanner utilizes three laser stripe scanners in a single sensor. The three lasers are spaced 120 degrees apart, allowing the scanner to capture data from three angles in a single scan.

Key Features

• Three laser stripe scanners integrated into one sensor.
• Lasers positioned 120 degrees apart for multi-angle data capture.
• Captures the same amount of data in one scan that a line scanner requires three scans to acquire.
• Suitable for inspecting slots, holes, grooves, and items with large complex surface areas.
• Long standoff design captures geometries from distances of up to 170 mm (7.1″).
• Provides improved access to difficult-to-reach or obscured areas.

Specifications

• Scanner Type: Cross
• Points/second (Cross Scanner Mode): 3 × 25,000
• Points/second (Single Line Mode): 1 × 75,000
• Scan Rate: 75 Hz
• Points per Line: 900
