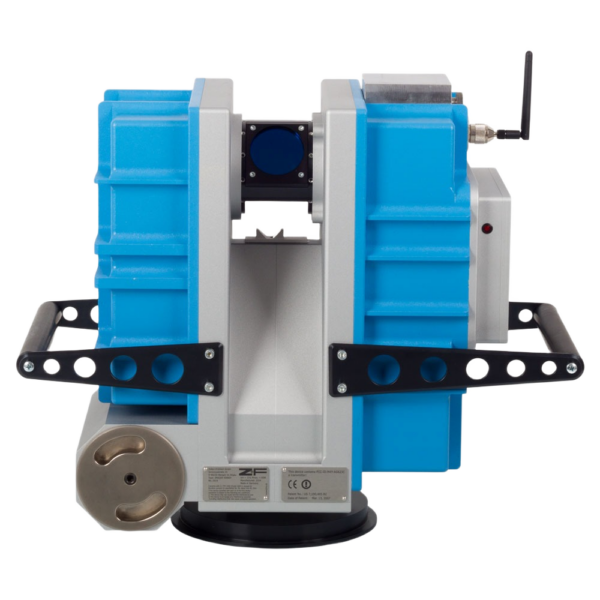

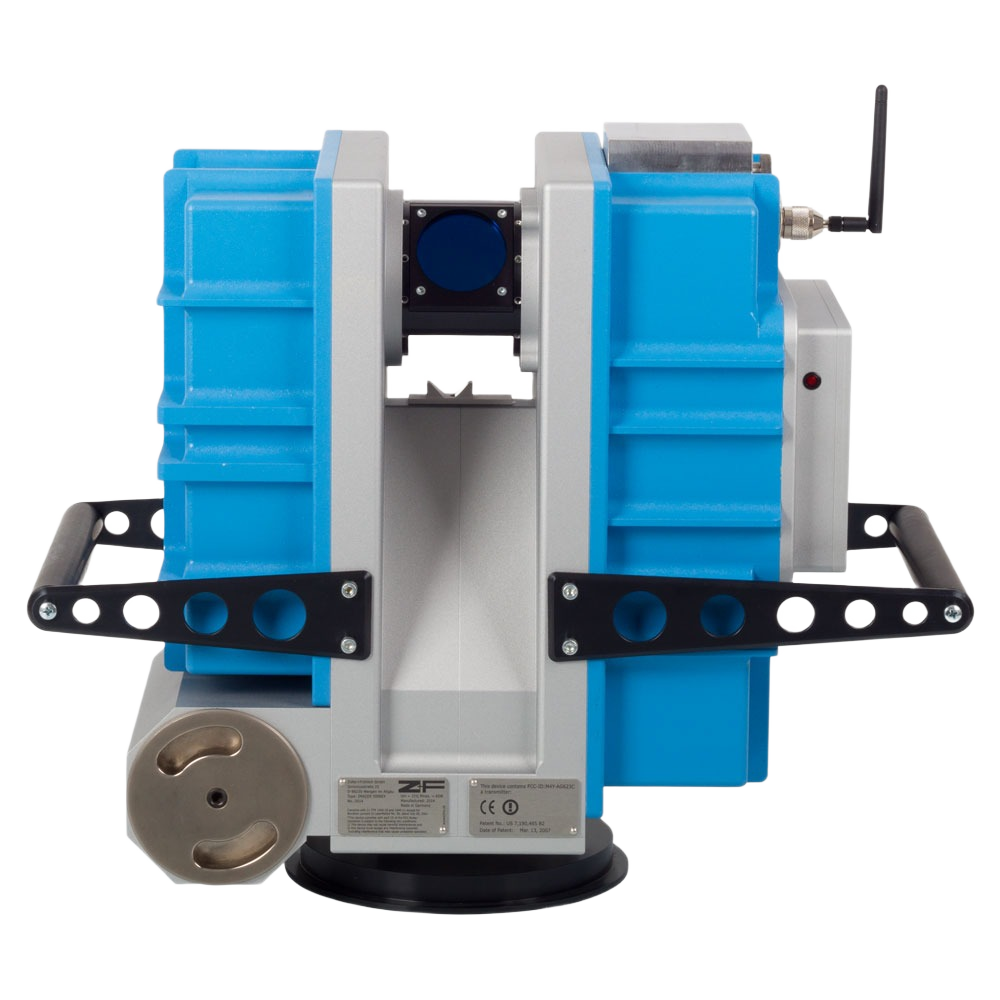

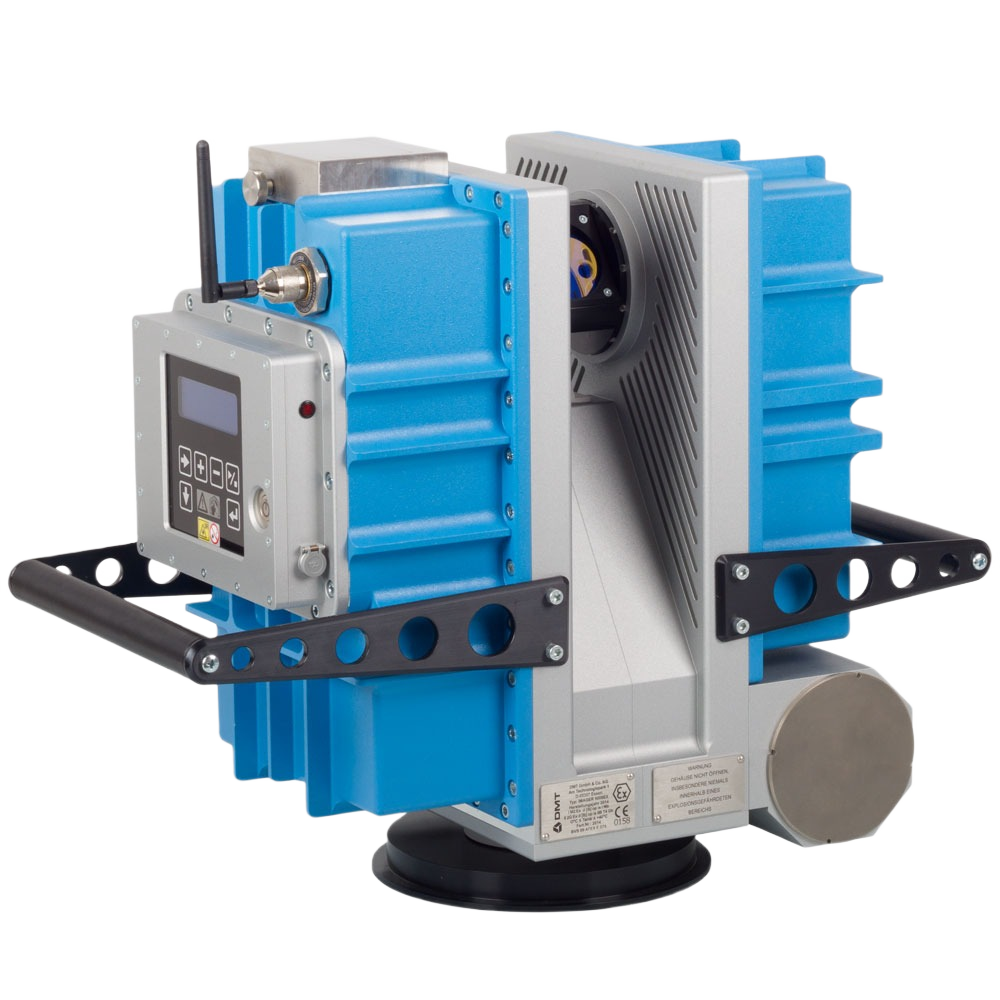

Z+F IMAGER® 5006EX Explosion-Proof 3D Laser Scanner
Price Available Upon Request
The Z+F IMAGER® 5006EX is an explosion-proof 3D laser scanner designed for surveying in underground mining and industrial environments with potentially explosive atmospheres. It provides a nominal range of 79 m, a 310° × 360° field of view, acquisition rates of up to 508,000 pixels per second, stand-alone operation, and ATEX Class I and II explosion protection.
Product Overview
The Z+F IMAGER® 5006EX is an explosion-proof 3D laser scanner developed by Zoller + Fröhlich GmbH and DMT GmbH & Co. KG for surveying in environments where explosive atmospheres may occur.
Based on the Z+F IMAGER® laser scanner platform, the Z+F IMAGER® 5006EX is designed for applications including underground mining and industrial environments subject to explosive conditions.
According to the supplied manufacturer information, the scanner is ATEX approved for Class I and Class II applications in accordance with ATEX Directive 94/9/EG.
Key Features
- 79 m nominal range for surveying across a wide range of explosive-environment applications
- 310° vertical × 360° horizontal field of view
- Stand-alone scanning operation without requiring external field equipment
- Data acquisition rate of up to 508,000 pixels per second
- Minimum range of 0.4 m
- Range resolution of 0.1 mm
- Linearity error of ≤ 1 mm up to 50 m
- Internal 60 GB HDD

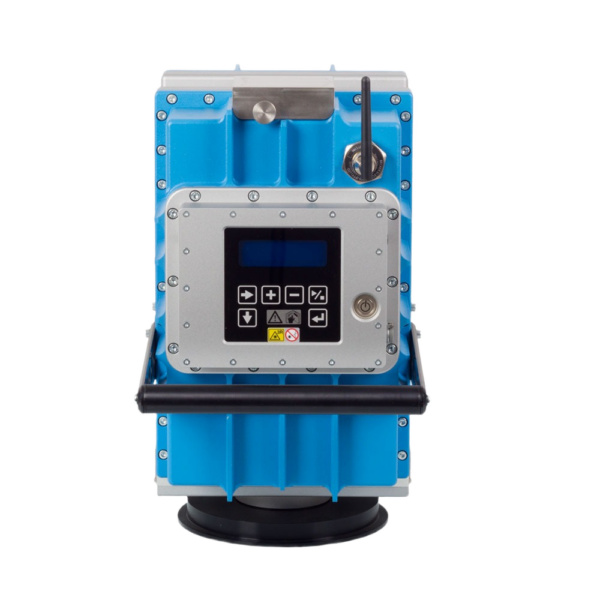

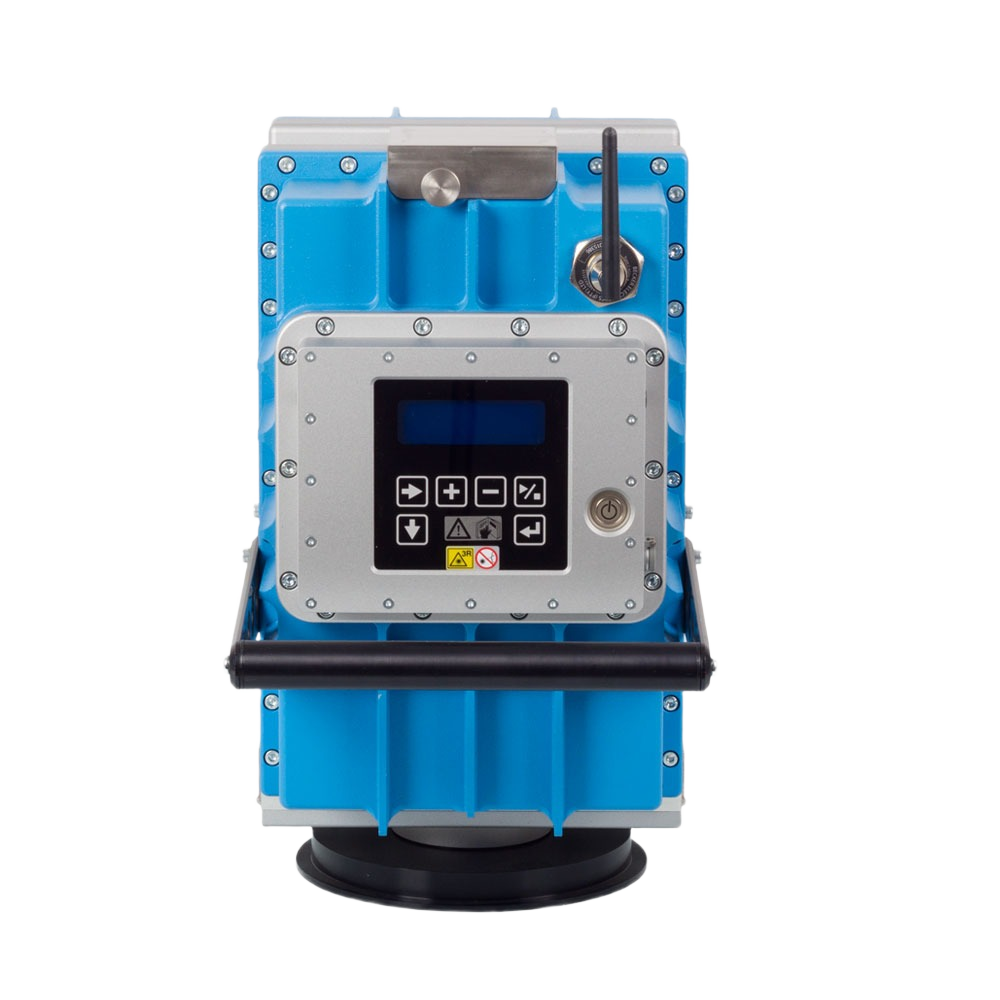

- Integrated keypad and display
- Ethernet / W-LAN communication interfaces
- Replaceable battery pack with approximately 1 hour battery life
- IP53 protection class
- Designed for operation under explosive conditions
79 m Range
The Z+F IMAGER® 5006EX provides a nominal range of 79 m. This measurement range enables the scanner to be used efficiently across many surveying applications in environments where explosion protection is required.
Extended 310° × 360° Field of View
The scanner provides a 310° vertical and 360° horizontal field of view. This broad scanning coverage supports comprehensive documentation while reducing the number of scan positions required for capturing an area.
Stand-Alone Operation
The 100% stand-alone concept allows the scanner to operate in the field without requiring external equipment for scanning. This provides greater operational flexibility and helps avoid additional ignition sources from external scanning equipment in potentially explosive atmospheres.
Laser System
| Specification | Value |
|---|---|
| Laser safety class | 3R (ISO EN 60825-1) |
| Beam divergence | 0.22 mrad |
| Beam diameter | 3 mm circular @ 1 m |
| Ambiguity interval | 79 m |
| Minimum range | 0.4 m |
| Range resolution | 0.1 mm |
| Data acquisition rate | ≤ 508,000 pixels/sec |
| Linearity error up to 50 m | ≤ 1 mm |
| Range noise | 0.7 mm rms |
Deflection Unit
| Specification | Value |
|---|---|
| Vertical system | Rotating mirror |
| Horizontal system | Rotating device |
| Vertical field of view | 310° |
| Horizontal field of view | 360° |
| Vertical resolution | 0.0018° |
| Horizontal resolution | 0.0018° |
| Vertical accuracy | 0.007° rms |
| Horizontal accuracy | 0.007° rms |
| Scanning speed | ≤ 50 r/s (3,000 r/min) max. |
System Features & Connectivity
The scanner incorporates an integrated operating interface and internal storage for stand-alone field operation.
| Specification | Value |
|---|---|
| Tilt measurement resolution | 0.001° |
| Tilt measurement accuracy (zero point) | 0.002° |
| Data storage | 60 GB internal HDD |
| Integrated keypad | 6 buttons |
| Integrated display | 4 lines |
| Data & communication interface | Ethernet / W-LAN |
Power Supply
| Specification | Value |
|---|---|
| Input voltage | 18 V DC (scanner) |
| Power consumption | 65 W max. |
| Battery life | 1 h |
| Battery type | Changeable battery pack |
Environmental Specifications
| Specification | Value |
|---|---|
| Calibrated temperature | 0°C to +40°C |
| Storage temperature | -20°C to +50°C |
| Illumination | All conditions |
| Humidity / dust-air humidity | Non-condensing |
| Protection class | IP53 |
| Explosion protection | ATEX 94/9/EG, Class I and II |
| Target reflectivity | No retro-reflectors |
Applications
The Z+F IMAGER® 5006EX is intended for 3D surveying and documentation in environments where explosive atmospheres may occur, particularly:
- Underground mining
- Industrial applications under explosive conditions
- Surveying and documentation in areas requiring ATEX-approved equipment
